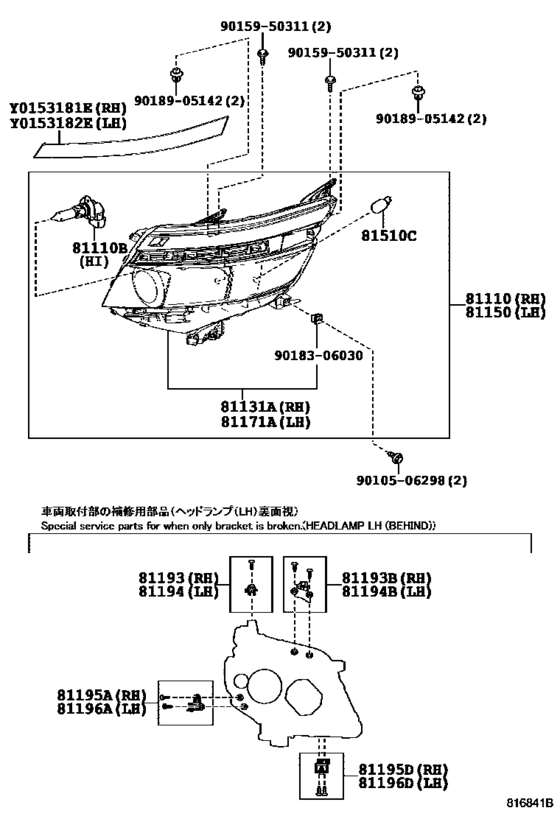

Headlamp ([01.2014 - ] LEDﾍｯﾄﾞﾗﾝﾌﾟ (1401- )VOXY) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- ZS
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- VOXY
- From
- 01.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- VOXY
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53181E
|
53181E
53181-28080-A0 Cover, Headlamp, Rh[01.2014 -] ZRR8#,ZWR80..VOXY WHITE PEARL CS.,070 |
53181-28080-A0 |
US $43.62 |
||
|
53181E
|
53181E
53181-28080-B0 Cover, Headlamp, Rh[01.2014 -] ZRR8#,ZWR80..VOXY SILVER ME.,1F7 |
53181-28080-B0 |
US $43.62 |
||
|
53181E
|
53181E
53181-28080-B2 Cover, Headlamp, Rh[12.2014 - 07.2016] ZRR8#..ZS..CBU ＺＳ“煌（きらめき）”＊（Ａ）,ICE TITANIUM M.M.,1H4 |
53181-28080-B2 |
US $39.31 |
||
|
53181E
|
53181E
53181-28080-C0 Cover, Headlamp, Rh[01.2014 -] ZRR8#,ZWR80..VOXY BLACK,202 |
53181-28080-C0 |
US $43.62 |
||
|
53181E
|
53181E
53181-28080-C1 Cover, Headlamp, Rh[01.2014 -] ZRR8#,ZWR80..VOXY BLACKISH AGEHA M.M.,221 |
53181-28080-C1 |
US $43.62 |
||
|
53181E
|
53181E
53181-28080-D0 Cover, Headlamp, Rh[01.2014 -] ZRR8#,ZWR80..VOXY DEEP RED M.M.,3R9 |
53181-28080-D0 |
US $62.78 |
||
|
53181E
|
53181E
53181-28120 Cover, Headlamp, Rh[07.2016 -] ZRR8#,ZWR80..ZS..CBU ＺＳ“煌（きらめき）U”＊（Ｃ） |
53181-28120 |
US $85.84 |
||
|
53182E
|
53182E
53182-28080-A0 Cover, Headlamp, Lh[01.2014 -] ZRR8#,ZWR80..VOXY WHITE PEARL CS.,070 |
53182-28080-A0 |
US $43.62 |
||
|
53182E
|
53182E
53182-28080-B0 Cover, Headlamp, Lh[01.2014 -] ZRR8#,ZWR80..VOXY SILVER ME.,1F7 |
53182-28080-B0 |
US $43.62 |
||
|
53182E
|
53182E
53182-28080-B2 Cover, Headlamp, Lh[12.2014 - 07.2016] ZRR8#..ZS..CBU ＺＳ“煌（きらめき）”＊（Ａ）,ICE TITANIUM M.M.,1H4 |
53182-28080-B2 |
US $39.31 |
||
|
53182E
|
53182E
53182-28080-C0 Cover, Headlamp, Lh[01.2014 -] ZRR8#,ZWR80..VOXY BLACK,202 |
53182-28080-C0 |
US $43.62 |
||
|
53182E
|
53182E
53182-28080-C1 Cover, Headlamp, Lh[01.2014 -] ZRR8#,ZWR80..VOXY BLACKISH AGEHA M.M.,221 |
53182-28080-C1 |
US $43.62 |
||
|
53182E
|
53182E
53182-28080-D0 Cover, Headlamp, Lh[01.2014 -] ZRR8#,ZWR80..VOXY DEEP RED M.M.,3R9 |
53182-28080-D0 |
US $62.78 |
||
|
53182E
|
53182E
53182-28110 Cover, Headlamp, Lh[07.2016 -] ZRR8#,ZWR80..ZS..CBU ＺＳ“煌（きらめき）U”＊（Ｃ） |
53182-28110 |
US $85.84 |
||
|
81110
|
81110
81110-28D20
Headlamp Assy, Rh
[01.2014 - 03.2015] ZRR8#,ZWR80..VOXY |
81110-28D20 |
— | ||
| replacement | |||||
|
81110
|
81110
81110-28D21 Headlamp Assy, Rh[01.2014 - 03.2015] ZRR8#,ZWR80..VOXY |
81110-28D21 |
US $1,217.22 |
||
|
81110
|
81110
81110-28D21 Headlamp Assy, Rh[04.2015 -] ZRR8#,ZWR80..VOXY |
81110-28D21 |
US $1,217.22 |
||
|
81110
|
81110
81110-28G00 Headlamp Assy, Rh[11.2014 - 03.2015] ZRR8#..ZS..CBU ＺＳ“煌（きらめき）”＊（Ａ） |
81110-28G00 |
US $1,355.54 |
||
| replacement | |||||
|
81110
|
81110
81110-28G01 Headlamp Assy, Rh[11.2014 - 03.2015] ZRR8#..ZS..CBU ＺＳ“煌（きらめき）”＊（Ａ） |
81110-28G01 |
US $1,355.54 |
||
|
81110
|
81110
81110-28G01 Headlamp Assy, Rh[04.2015 - 07.2016] ZRR8#..ZS..CBU ＺＳ“煌（きらめき）”＊（Ａ） |
81110-28G01 |
US $1,355.54 |
||
|
81110B
|
81110B
90981-13046 Bulb(For Headlamp, No.1) (12V, 65W)[01.2014 -] ZRR8#,ZWR80 １２Ｖ６５Ｗ（ＳＡＥ），６０Ｗ（ＥＣＥ） |
90981-13046 |
from US $16.34 |
||
|
81131A
|
81131A
81130-28D20
Unit, Headlamp, Rh
[01.2014 - 04.2015] ZRR8#,ZWR80..VOXY |
81130-28D20 |
— | ||
| replacement | |||||
|
81131A
|
81131A
81130-28D21 Unit, Headlamp, Rh[01.2014 - 04.2015] ZRR8#,ZWR80..VOXY |
81130-28D21 |
US $1,305.60 |
||
|
81131A
|
81131A
81130-28D21 Unit, Headlamp, Rh[04.2015 -] ZRR8#,ZWR80..VOXY |
81130-28D21 |
US $1,305.60 |
||
|
81131A
|
81131A
81130-28G00 Unit, Headlamp, Rh[11.2014 - 04.2015] ZRR8#..ZS..CBU ＺＳ“煌（きらめき）”＊（Ａ） |
81130-28G00 |
US $1,333.70 |
||
| replacement | |||||
|
81131A
|
81131A
81130-28G01 Unit, Headlamp, Rh[11.2014 - 04.2015] ZRR8#..ZS..CBU ＺＳ“煌（きらめき）”＊（Ａ） |
81130-28G01 |
US $1,917.60 |
||
|
81131A
|
81131A
81130-28G01 Unit, Headlamp, Rh[04.2015 - 07.2016] ZRR8#..ZS..CBU ＺＳ“煌（きらめき）”＊（Ａ） |
81130-28G01 |
US $1,917.60 |
||
|
81150
|
81150
81150-28D00
Headlamp Assy, Lh
[01.2014 - 03.2015] ZRR8#,ZWR80..VOXY |
81150-28D00 |
— | ||
| replacement | |||||
|
81150
|
81150
81150-28D01
Headlamp Assy, Lh
[01.2014 - 03.2015] ZRR8#,ZWR80..VOXY |
81150-28D01 |
— | ||
|
81150
|
81150
81150-28D01
Headlamp Assy, Lh
[04.2015 -] ZRR8#,ZWR80..VOXY |
81150-28D01 |
— | ||
|
81150
|
81150
81150-28G00 Headlamp Assy, Lh[11.2014 - 03.2015] ZRR8#..ZS..CBU ＺＳ“煌（きらめき）”＊（Ａ） |
81150-28G00 |
US $1,355.54 |
||
| replacement | |||||
|
81150
|
81150
81150-28G01 Headlamp Assy, Lh[11.2014 - 03.2015] ZRR8#..ZS..CBU ＺＳ“煌（きらめき）”＊（Ａ） |
81150-28G01 |
US $1,355.54 |
||
|
81150
|
81150
81150-28G01 Headlamp Assy, Lh[04.2015 - 07.2016] ZRR8#..ZS..CBU ＺＳ“煌（きらめき）”＊（Ａ） |
81150-28G01 |
US $1,355.54 |
||
|
81171A
|
81171A
81170-28D00
Unit, Headlamp, Lh
[01.2014 - 04.2015] ZRR8#,ZWR80..VOXY |
81170-28D00 |
— | ||
| replacement | |||||
|
81171A
|
81171A
81170-28D01 Unit, Headlamp, Lh[01.2014 - 04.2015] ZRR8#,ZWR80..VOXY |
81170-28D01 |
US $1,305.60 |
||
|
81171A
|
81171A
81170-28D01 Unit, Headlamp, Lh[04.2015 -] ZRR8#,ZWR80..VOXY |
81170-28D01 |
US $1,305.60 |
||
|
81171A
|
81171A
81170-28G00 Unit, Headlamp, Lh[11.2014 - 04.2015] ZRR8#..ZS..CBU ＺＳ“煌（きらめき）”＊（Ａ） |
81170-28G00 |
US $1,333.70 |
||
| replacement | |||||
|
81171A
|
81171A
81170-28G01 Unit, Headlamp, Lh[11.2014 - 04.2015] ZRR8#..ZS..CBU ＺＳ“煌（きらめき）”＊（Ａ） |
81170-28G01 |
US $1,917.60 |
||
|
81171A
|
81171A
81170-28G01 Unit, Headlamp, Lh[04.2015 - 07.2016] ZRR8#..ZS..CBU ＺＳ“煌（きらめき）”＊（Ａ） |
81170-28G01 |
US $1,917.60 |
||
|
81193
|
81193
81193-28190 Retainer, Headlamp Protector, Upper Rh[01.2014 -] ZRR8#,ZWR80..VOXY |
81193-28190 |
US $7.04 |
||
|
81193B
|
81193B
81193-28200 Retainer, Headlamp Protector, Upper Rh No.2[01.2014 -] ZRR8#,ZWR80..VOXY |
81193-28200 |
US $10.88 |
||
|
81194
|
81194
81194-28190 Retainer, Headlamp Protector, Upper Lh[01.2014 -] ZRR8#,ZWR80..VOXY |
81194-28190 |
US $7.04 |
||
|
81194B
|
81194B
81194-28200 Retainer, Headlamp Protector, Upper Lh No.2[01.2014 -] ZRR8#,ZWR80..VOXY |
81194-28200 |
US $10.88 |
||
|
81195A
|
81195A
81195-28030 Retainer, Headlamp Protector, Lower Rh[01.2014 -] ZRR8#,ZWR80..VOXY |
81195-28030 |
US $12.32 |
||
|
81195D
|
81195D
81195-28040 Retainer, Headlamp Protector, Lower Rh No.2[01.2014 -] ZRR8#,ZWR80..VOXY |
81195-28040 |
US $8.64 |
||
|
81196A
|
81196A
81196-28030 Retainer, Headlamp Protector, Lower Lh[01.2014 -] ZRR8#,ZWR80..VOXY |
81196-28030 |
US $12.32 |
||
|
81196D
|
81196D
81196-28040 Retainer, Headlamp Protector, Lower Lh No.2[01.2014 -] ZRR8#,ZWR80..VOXY |
81196-28040 |
US $8.64 |
||
|
81510C
|
81510C
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[01.2014 -] ZRR8#,ZWR80 １２Ｖ ２１Ｗ，アンバー |
90981-15011 |
from US $4.60 |
||
|
9010506298
|
9010506298
90105-06298 BOLT FLANGE |
90105-06298 |
from US $0.64 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.76 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9018306030
|
9018306030
90183-06030 NUT SPRING |
90183-06030 |
from US $0.78 |
||
|
9018905142
|
9018905142
90189-05142 GROMMET, SCREW |
90189-05142 |
from US $0.80 |
||
