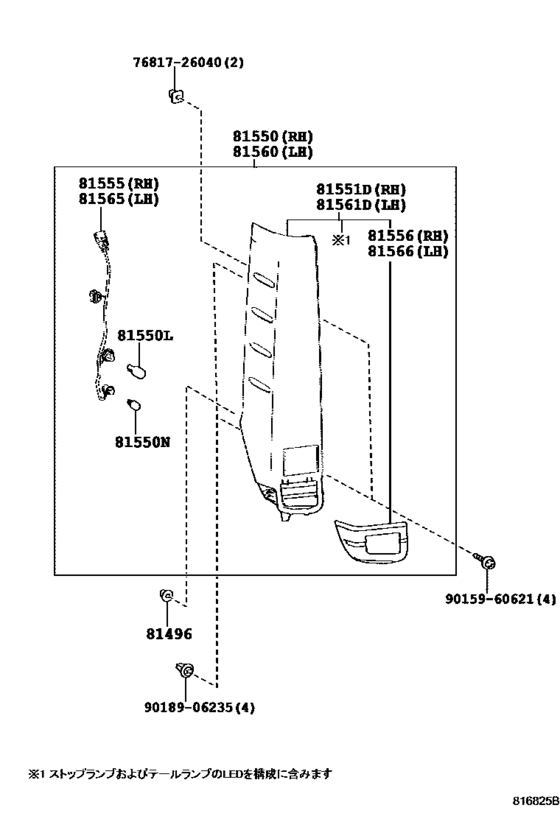

Rear Combination Lamp ([01.2014 - ] (1401- )VOXY) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- ZS
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- VOXY
- From
- 01.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- VOXY
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81496
|
81496
81496-52020 Guide, Rear Combination Lamp[01.2014 -] ZRR8#,ZWR80 |
81496-52020 |
from US $0.88 |
||
|
81550
|
81550
81550-28560 Lamp Assy, Rear Combination, Rh[01.2014 -] ZRR8#,ZWR80..VOXY |
81550-28560 |
US $492.13 |
||
|
81550
|
81550
81550-28680 Lamp Assy, Rear Combination, Rh[05.2016 -] ZRR80..07S..ZS..CBU Ｇ’ｓ |
81550-28680 |
US $610.06 |
||
|
81550L
|
81550L
90981-15021 Bulb (For Front Turn Signal Lamp)[01.2014 -] ZRR8#,ZWR80 １２Ｖ ２１Ｗ，アンバー |
90981-15021 |
from US $3.51 |
||
|
81550N
|
81550N
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[01.2014 -] ZRR8#,ZWR80 １２Ｖ １６Ｗ |
90981-11059 |
from US $3.20 |
||
|
81551D
|
81551D
81551-28560 Lens & Body, Rear Combination Lamp, Rh[01.2014 -] ZRR8#,ZWR80..VOXY |
81551-28560 |
US $695.80 |
||
|
81551D
|
81551D
81551-28680 Lens & Body, Rear Combination Lamp, Rh[05.2016 -] ZRR80..07S..ZS..CBU Ｇ’ｓ |
81551-28680 |
US $556.19 |
||
|
81555
|
81555
81555-28560 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[01.2014 -] ZRR8#,ZWR80..VOXY |
81555-28560 |
US $37.39 |
||
|
81556
|
81556
81556-28560 Rim, Rear Combination Lamp, Rh[01.2014 -] ZRR8#,ZWR80..VOXY |
81556-28560 |
US $102.12 |
||
|
81556
|
81556
81556-28680 Rim, Rear Combination Lamp, Rh[05.2016 -] ZRR80..07S..ZS..CBU Ｇ’ｓ |
81556-28680 |
US $57.08 |
||
|
81560
|
81560
81560-28640 Lamp Assy, Rear Combination, Lh[01.2014 -] ZRR8#,ZWR80..VOXY |
81560-28640 |
US $492.13 |
||
|
81560
|
81560
81560-28680 Lamp Assy, Rear Combination, Lh[05.2016 -] ZRR80..07S..ZS..CBU Ｇ’ｓ |
81560-28680 |
US $610.06 |
||
|
81561D
|
81561D
81561-28640 Lens & Body, Rear Combination Lamp, Lh[01.2014 -] ZRR8#,ZWR80..VOXY |
81561-28640 |
US $695.80 |
||
|
81561D
|
81561D
81561-28680 Lens & Body, Rear Combination Lamp, Lh[05.2016 -] ZRR80..07S..ZS..CBU Ｇ’ｓ |
81561-28680 |
US $556.19 |
||
|
81565
|
81565
81555-28560 Socket & Wire Sub-Assy, Rear Combination Lamp, Rh[01.2014 -] ZRR8#,ZWR80..VOXY |
81555-28560 |
US $37.39 |
||
|
81566
|
81566
81566-28640 Rim, Rear Combination Lamp, Lh[01.2014 -] ZRR8#,ZWR80..VOXY |
81566-28640 |
US $102.12 |
||
|
81566
|
81566
81566-28680 Rim, Rear Combination Lamp, Lh[05.2016 -] ZRR80..07S..ZS..CBU Ｇ’ｓ |
81566-28680 |
US $57.08 |
||
|
7681726040
|
7681726040
76817-26040 Clip, Back Door Outside Garnish |
76817-26040 |
from US $1.76 |
||
|
9015960621
|
9015960621
90159-60621 SCREW, W/WASHER |
90159-60621 |
from US $0.53 |
||
|
9018906235
|
9018906235
90189-06235 GROMMET SCREW |
90189-06235 |
from US $1.12 |
