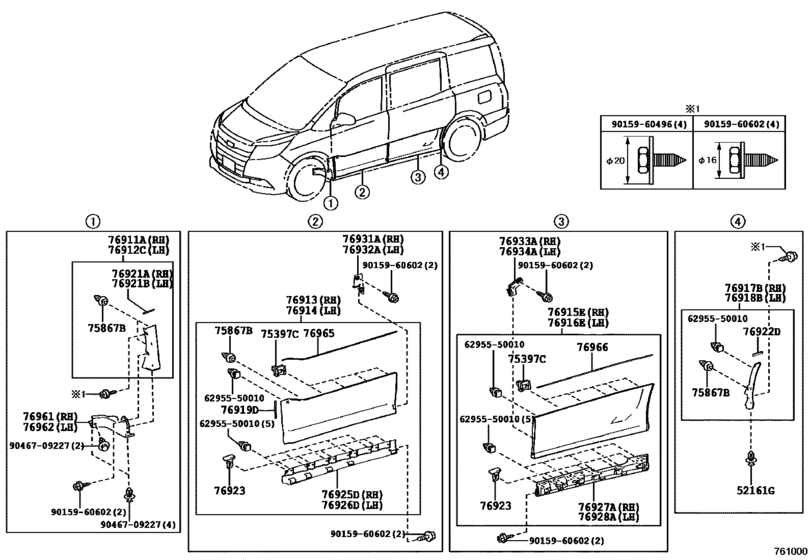

Spoiler & Side Mudguard ([05.2016 - ] ｻｲﾄﾞ(G'S) (1605- )07S..SI,ZS) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZRR80
- grade
- ZS
- ENGINE
- 3ZRFAE
- TRANSMISSION
- CVT
- Model
- VOXY
- From
- 01.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- VOXY
- Fuel Induction
- HTWVM
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52161G
|
52161G
52161-16010 Clip[05.2016 -] ZRR80..07S..(SI,ZS)..CBU Ｇ’ｓ |
52161-16010 |
from US $1.68 |
||
| replacements | |||||
|
52161G
|
52161G
52161-0K040 Clip[05.2016 -] ZRR80..07S..(SI,ZS)..CBU Ｇ’ｓ |
52161-0K040 |
from US $1.50 |
||
|
52161G
|
52161G
52161-02020 Clip[05.2016 -] ZRR80..07S..(SI,ZS)..CBU Ｇ’ｓ |
52161-02020 |
US $5.27 |
||
|
75397C
|
75397C
75397-58030 Clip, Outside Moulding, No.3[01.2014 -] ZRR8#,ZWR80..SI,ZS |
75397-58030 |
US $1.92 |
||
|
75867B
|
75867B
75867-33030 Clip (For Center Lower Garnish)[01.2014 -] ZRR8#,ZWR80..SI,ZS |
75867-33030 |
from US $3.36 |
||
|
76911A
|
76911A
76901-28090-A0 Mudguard, Fender Panel, Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS WHITE PEARL CS.,070 |
76901-28090-A0 |
US $45.45 |
||
|
76911A
|
76911A
76901-28090-B0 Mudguard, Fender Panel, Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS SILVER ME.,1F7 |
76901-28090-B0 |
US $36.55 |
||
|
76911A
|
76911A
76901-28090-B2 Mudguard, Fender Panel, Rh[12.2014 -] ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
76901-28090-B2 |
US $43.93 |
||
|
76911A
|
76911A
76901-28090-C0 Mudguard, Fender Panel, Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS BLACK,202 |
76901-28090-C0 |
US $45.45 |
||
|
76911A
|
76911A
76901-28090-C1 Mudguard, Fender Panel, Rh[01.2014 -] ZRR8#,ZWR80..ZS BLACKISH AGEHA M.M.,221 |
76901-28090-C1 |
US $45.45 |
||
|
76911A
|
76911A
76901-28090-D0 Mudguard, Fender Panel, Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS DEEP RED M.M.,3R9 |
76901-28090-D0 |
US $45.45 |
||
|
76912C
|
76912C
76902-28090-A0 Mudguard, Fender Panel, Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS WHITE PEARL CS.,070 |
76902-28090-A0 |
US $45.45 |
||
|
76912C
|
76912C
76902-28090-B0 Mudguard, Fender Panel, Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS SILVER ME.,1F7 |
76902-28090-B0 |
US $45.45 |
||
|
76912C
|
76912C
76902-28090-B2 Mudguard, Fender Panel, Lh[12.2014 -] ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
76902-28090-B2 |
US $43.93 |
||
|
76912C
|
76912C
76902-28090-C0 Mudguard, Fender Panel, Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS BLACK,202 |
76902-28090-C0 |
US $45.45 |
||
|
76912C
|
76912C
76902-28090-C1 Mudguard, Fender Panel, Lh[01.2014 -] ZRR8#,ZWR80..ZS BLACKISH AGEHA M.M.,221 |
76902-28090-C1 |
US $45.45 |
||
|
76912C
|
76912C
76902-28090-D0 Mudguard, Fender Panel, Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS DEEP RED M.M.,3R9 |
76902-28090-D0 |
US $45.45 |
||
|
76913
|
76913
76903-28160-A0 Mudguard, Front Door, Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS WHITE PEARL CS.,070 |
76903-28160-A0 |
US $319.20 |
||
|
76913
|
76913
76903-28160-B0 Mudguard, Front Door, Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS SILVER ME.,1F7 |
76903-28160-B0 |
US $295.84 |
||
|
76913
|
76913
76903-28160-B2 Mudguard, Front Door, Rh[12.2014 -] ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
76903-28160-B2 |
US $320.61 |
||
|
76913
|
76913
76903-28160-C0 Mudguard, Front Door, Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS BLACK,202 |
76903-28160-C0 |
US $319.20 |
||
|
76913
|
76913
76903-28160-C1 Mudguard, Front Door, Rh[01.2014 -] ZRR8#,ZWR80..ZS BLACKISH AGEHA M.M.,221 |
76903-28160-C1 |
US $319.20 |
||
|
76913
|
76913
76903-28160-D0 Mudguard, Front Door, Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS DEEP RED M.M.,3R9 |
76903-28160-D0 |
US $319.20 |
||
|
76914
|
76914
76904-28140-A0 Mudguard, Front Door, Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS WHITE PEARL CS.,070 |
76904-28140-A0 |
US $319.20 |
||
|
76914
|
76914
76904-28140-B0 Mudguard, Front Door, Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS SILVER ME.,1F7 |
76904-28140-B0 |
US $319.20 |
||
|
76914
|
76914
76904-28140-B2 Mudguard, Front Door, Lh[12.2014 -] ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
76904-28140-B2 |
US $460.60 |
||
|
76914
|
76914
76904-28140-C0 Mudguard, Front Door, Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS BLACK,202 |
76904-28140-C0 |
US $319.20 |
||
|
76914
|
76914
76904-28140-C1 Mudguard, Front Door, Lh[01.2014 -] ZRR8#,ZWR80..ZS BLACKISH AGEHA M.M.,221 |
76904-28140-C1 |
US $319.20 |
||
|
76914
|
76914
76904-28140-D0 Mudguard, Front Door, Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS DEEP RED M.M.,3R9 |
76904-28140-D0 |
US $319.20 |
||
|
76915E
|
76915E
76905-28080-A0 Mudguard, Slide Door, Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS WHITE PEARL CS.,070 |
76905-28080-A0 |
US $319.20 |
||
|
76915E
|
76915E
76905-28080-B0 Mudguard, Slide Door, Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS SILVER ME.,1F7 |
76905-28080-B0 |
US $295.84 |
||
|
76915E
|
76915E
76905-28080-B2 Mudguard, Slide Door, Rh[12.2014 -] ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
76905-28080-B2 |
US $460.60 |
||
|
76915E
|
76915E
76905-28080-C0 Mudguard, Slide Door, Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS BLACK,202 |
76905-28080-C0 |
US $319.20 |
||
|
76915E
|
76915E
76905-28080-C1 Mudguard, Slide Door, Rh[01.2014 -] ZRR8#,ZWR80..ZS BLACKISH AGEHA M.M.,221 |
76905-28080-C1 |
US $319.20 |
||
|
76915E
|
76915E
76905-28080-D0 Mudguard, Slide Door, Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS DEEP RED M.M.,3R9 |
76905-28080-D0 |
US $319.20 |
||
|
76916E
|
76916E
76906-28160-A0 Mudguard, Slide Door, Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS WHITE PEARL CS.,070 |
76906-28160-A0 |
US $319.20 |
||
|
76916E
|
76916E
76906-28160-B0 Mudguard, Slide Door, Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS SILVER ME.,1F7 |
76906-28160-B0 |
US $319.20 |
||
|
76916E
|
76916E
76906-28160-B2 Mudguard, Slide Door, Lh[12.2014 -] ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
76906-28160-B2 |
US $460.60 |
||
|
76916E
|
76916E
76906-28160-C0 Mudguard, Slide Door, Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS BLACK,202 |
76906-28160-C0 |
US $319.20 |
||
|
76916E
|
76916E
76906-28160-C1 Mudguard, Slide Door, Lh[01.2014 -] ZRR8#,ZWR80..ZS BLACKISH AGEHA M.M.,221 |
76906-28160-C1 |
US $319.20 |
||
|
76916E
|
76916E
76906-28160-D0 Mudguard, Slide Door, Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS DEEP RED M.M.,3R9 |
76906-28160-D0 |
US $319.20 |
||
|
76917B
|
76917B
76907-28100-A0 Mudguard, Quarter Panel, Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS WHITE PEARL CS.,070 |
76907-28100-A0 |
US $47.58 |
||
|
76917B
|
76917B
76907-28100-B0 Mudguard, Quarter Panel, Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS SILVER ME.,1F7 |
76907-28100-B0 |
US $47.58 |
||
|
76917B
|
76917B
76907-28100-B2 Mudguard, Quarter Panel, Rh[12.2014 -] ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
76907-28100-B2 |
US $45.88 |
||
|
76917B
|
76917B
76907-28100-C0 Mudguard, Quarter Panel, Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS BLACK,202 |
76907-28100-C0 |
US $47.58 |
||
|
76917B
|
76917B
76907-28100-C1 Mudguard, Quarter Panel, Rh[01.2014 -] ZRR8#,ZWR80..ZS BLACKISH AGEHA M.M.,221 |
76907-28100-C1 |
US $47.58 |
||
|
76917B
|
76917B
76907-28100-D0 Mudguard, Quarter Panel, Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS DEEP RED M.M.,3R9 |
76907-28100-D0 |
US $47.58 |
||
|
76918B
|
76918B
76908-28100-A0 Mudguard, Quarter Panel, Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS WHITE PEARL CS.,070 |
76908-28100-A0 |
US $47.58 |
||
|
76918B
|
76918B
76908-28100-B0 Mudguard, Quarter Panel, Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS SILVER ME.,1F7 |
76908-28100-B0 |
US $47.58 |
||
|
76918B
|
76918B
76908-28100-B2 Mudguard, Quarter Panel, Lh[12.2014 -] ZRR8#,ZWR80..(SI,ZS)..CBU ICE TITANIUM M.M.,1H4 |
76908-28100-B2 |
US $68.70 |
||
|
76918B
|
76918B
76908-28100-C0 Mudguard, Quarter Panel, Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS BLACK,202 |
76908-28100-C0 |
US $47.58 |
||
|
76918B
|
76918B
76908-28100-C1 Mudguard, Quarter Panel, Lh[01.2014 -] ZRR8#,ZWR80..ZS BLACKISH AGEHA M.M.,221 |
76908-28100-C1 |
US $47.58 |
||
|
76918B
|
76918B
76908-28100-D0 Mudguard, Quarter Panel, Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS DEEP RED M.M.,3R9 |
76908-28100-D0 |
US $47.58 |
||
|
76919D
|
76919D
76919-28220 Pad, Side Mudguard[01.2014 -] ZRR8#,ZWR80..SI,ZS |
76919-28220 |
US $7.52 |
||
|
76921A
|
76921A
76921-28120-B0 Protector, Side Mudguard, No.1[01.2014 -] ZRR80..SI..IV5 DARK GRAY,202 ,3R9 ,9AF; ZRR80..ZS..IV5 DARK GRAY,202 ,221 ,3R9; ZRR8#,ZWR80..ZS..CBU DARK GRAY,1H4 ,202 ,221 ,3R9; ZRR8#,ZWR80..SI..CBU DARK GRAY,1H4 ,202 ,3R9 ,9AF |
76921-28120-B0 |
US $7.52 |
||
|
76921A
|
76921A
76921-28120-B1 Protector, Side Mudguard, No.1[01.2014 -] ZRR8#,ZWR80..SI,ZS LT. GRAY,070 |
76921-28120-B1 |
US $7.52 |
||
|
76921A
|
76921A
76921-28120-B2 Protector, Side Mudguard, No.1[01.2014 -] ZRR8#,ZWR80..SI,ZS MEDIUM GRAY,1F7 |
76921-28120-B2 |
US $7.52 |
||
|
76921B
|
76921B
76921-28130-B0 Protector, Side Mudguard, No.1[01.2014 -] ZRR80..SI..IV5 DARK GRAY,202 ,3R9 ,9AF; ZRR80..ZS..IV5 DARK GRAY,202 ,221 ,3R9; ZRR8#,ZWR80..ZS..CBU DARK GRAY,1H4 ,202 ,221 ,3R9; ZRR8#,ZWR80..SI..CBU DARK GRAY,1H4 ,202 ,3R9 ,9AF |
76921-28130-B0 |
US $7.52 |
||
|
76921B
|
76921B
76921-28130-B1 Protector, Side Mudguard, No.1[01.2014 -] ZRR8#,ZWR80..SI,ZS LT. GRAY,070 |
76921-28130-B1 |
US $7.52 |
||
|
76921B
|
76921B
76921-28130-B2 Protector, Side Mudguard, No.1[01.2014 -] ZRR8#,ZWR80..SI,ZS MEDIUM GRAY,1F7 |
76921-28130-B2 |
US $7.52 |
||
|
76922D
|
76922D
76922-28110-B0 Protector, Side Mudguard, No.2[01.2014 -] ZRR80..SI..IV5 DARK GRAY,202 ,3R9 ,9AF; ZRR80..ZS..IV5 DARK GRAY,202 ,221 ,3R9; ZRR8#,ZWR80..ZS..CBU DARK GRAY,1H4 ,202 ,221 ,3R9; ZRR8#,ZWR80..SI..CBU DARK GRAY,1H4 ,202 ,3R9 ,9AF |
76922-28110-B0 |
US $7.52 |
||
|
76922D
|
76922D
76922-28110-B1 Protector, Side Mudguard, No.2[01.2014 -] ZRR8#,ZWR80..SI,ZS LT. GRAY,070 |
76922-28110-B1 |
US $7.52 |
||
|
76922D
|
76922D
76922-28110-B2 Protector, Side Mudguard, No.2[01.2014 -] ZRR8#,ZWR80..SI,ZS MEDIUM GRAY,1F7 |
76922-28110-B2 |
US $7.52 |
||
|
76923
|
76923
75392-35220 Retainer, Rear Bumper[01.2014 -] ZRR8#,ZWR80..SI,ZS |
75392-35220 |
from US $1.42 |
||
|
76925D
|
76925D
76925-28160 Protector, Side Mudguard, Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS |
76925-28160 |
US $55.48 |
||
|
76926D
|
76926D
76926-28130 Protector, Side Mudguard, Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS |
76926-28130 |
US $55.48 |
||
|
76927A
|
76927A
76927-28100 Protector, Side Mudguard, Rear Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS |
76927-28100 |
US $39.02 |
||
|
76928A
|
76928A
76928-28070 Protector, Side Mudguard, Rear Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS |
76928-28070 |
US $39.02 |
||
|
76931A
|
76931A
76931-28050 Bracket, Side Mudguard, No.1 Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS |
76931-28050 |
US $10.08 |
||
|
76932A
|
76932A
76932-28060 Bracket, Side Mudguard, No.1 Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS |
76932-28060 |
US $10.08 |
||
|
76933A
|
76933A
76933-28050 Bracket, Side Mudguard, No.2 Rh[01.2014 -] ZRR8#,ZWR80..SI,ZS |
76933-28050 |
US $10.72 |
||
|
76934A
|
76934A
76934-28050 Bracket, Side Mudguard, No.2 Lh[01.2014 -] ZRR8#,ZWR80..SI,ZS |
76934-28050 |
US $10.72 |
||
|
76961
|
76961
76961-WY020 Mudguard, Front Door, Lower Rh[05.2016 -] ZRR80..07S..(SI,ZS)..CBU Ｇ’ｓ |
76961-WY020 |
US $14.26 |
||
|
76962
|
76962
76962-WY020 Mudguard, Front Door, Lower Lh[05.2016 -] ZRR80..07S..(SI,ZS)..CBU Ｇ’ｓ |
76962-WY020 |
from US $14.26 |
||
|
76965
|
76965
76965-28120-B0 Protector, Front Door Lower Mudguard[01.2014 -] ZRR80..SI..IV5 DARK GRAY,202 ,3R9 ,9AF; ZRR80..ZS..IV5 DARK GRAY,202 ,221 ,3R9; ZRR8#,ZWR80..ZS..CBU DARK GRAY,1H4 ,202 ,221 ,3R9; ZRR8#,ZWR80..SI..CBU DARK GRAY,1H4 ,202 ,3R9 ,9AF |
76965-28120-B0 |
US $9.60 |
||
|
76965
|
76965
76965-28120-B1 Protector, Front Door Lower Mudguard[01.2014 -] ZRR8#,ZWR80..SI,ZS LT. GRAY,070 |
76965-28120-B1 |
US $9.60 |
||
|
76965
|
76965
76965-28120-B2 Protector, Front Door Lower Mudguard[01.2014 -] ZRR8#,ZWR80..SI,ZS MEDIUM GRAY,1F7 |
76965-28120-B2 |
US $9.60 |
||
|
76966
|
76966
76966-28130-B0 Protector, Slide Door Lower Mudguard[01.2014 -] ZRR80..SI..IV5 DARK GRAY,202 ,3R9 ,9AF; ZRR80..ZS..IV5 DARK GRAY,202 ,221 ,3R9; ZRR8#,ZWR80..ZS..CBU DARK GRAY,1H4 ,202 ,221 ,3R9; ZRR8#,ZWR80..SI..CBU DARK GRAY,1H4 ,202 ,3R9 ,9AF |
76966-28130-B0 |
US $9.60 |
||
|
76966
|
76966
76966-28130-B1 Protector, Slide Door Lower Mudguard[01.2014 -] ZRR8#,ZWR80..SI,ZS LT. GRAY,070 |
76966-28130-B1 |
US $9.60 |
||
|
76966
|
76966
76966-28130-B2 Protector, Slide Door Lower Mudguard[01.2014 -] ZRR8#,ZWR80..SI,ZS MEDIUM GRAY,1F7 |
76966-28130-B2 |
US $9.60 |
||
|
6295550010
|
6295550010
62955-50010 Retainer, Quarter Vent Louver |
62955-50010 |
from US $2.20 |
||
|
9015960496
|
9015960496
90159-60496 SCREW WWASHER |
90159-60496 |
from US $0.68 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.66 |
||
|
9046709227
|
9046709227
90467-09227 Clip, Engine Under Cover, No.2 |
90467-09227 |
from US $1.35 |
||
