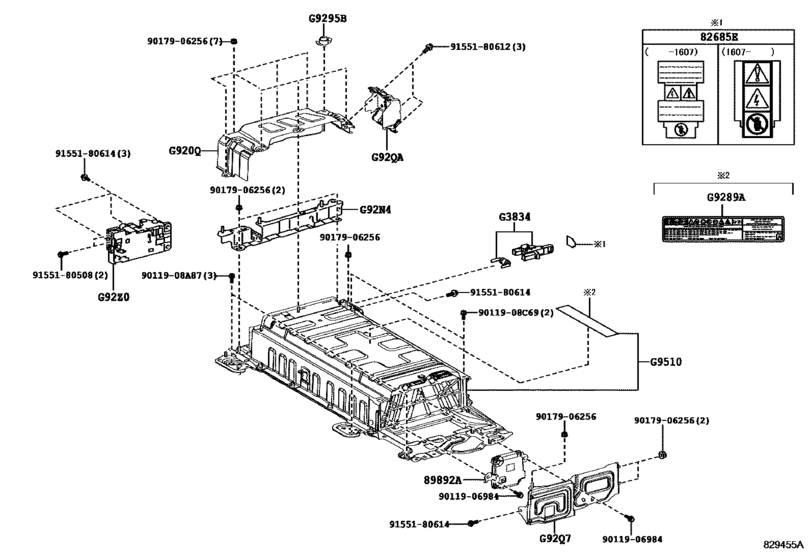

Battery & Battery Cable ([02.2014 - ] HV ﾊﾞｯﾃﾘ (1402- )ZWR80) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZWR80
- grade
- XI
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82685E
|
82685E
82685-50050 Plate, Service Plug CautionSERVICE PLUG CAUTION [02.2014 - 07.2016] ZWR80 |
82685-50050 |
US $2.04 |
||
|
82685E
|
82685E
82685-76020 Plate, Service Plug Caution[07.2016 -] ZWR80 |
82685-76020 |
US $2.04 |
||
|
89892A
|
89892A
89892-12010 Sensor, Battery Voltage[02.2014 -] ZWR80 |
89892-12010 |
US $575.40 |
||
|
9011908A87
|
9011908A87
90119-08A87 BOLT W-WASHER |
90119-08A87 |
from US $0.96 |
||
|
9011908C69
|
9011908C69
90119-08C69 New Genuine Part |
90119-08C69 |
US $1.31 |
||
|
9011906984
|
9011906984
90119-06984 BOLT WWASHER |
90119-06984 |
US $0.96 |
||
|
9017906256
|
9017906256
90179-06256 NUT |
90179-06256 |
from US $0.90 |
||
|
9155180508
|
9155180508
91551-80508 New Genuine Part |
91551-80508 |
US $0.69 |
||
|
9155180612
|
9155180612
91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector) |
91551-80612 |
from US $0.70 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.66 |
||
|
G92N4
|
G92N4
G92N4-28020 Bracket, Hv Battery Upper Cover, No.2[02.2014 -] ZWR80 |
G92N4-28020 |
US $12.52 |
||
|
G92Q7
|
G92Q7
G92Q7-28010 Panel, Hv Battery Shield, No.5[02.2014 -] ZWR80 |
G92Q7-28010 |
US $25.63 |
||
|
G92QA
|
G92QA
G92QA-28010 Panel, Hv Battery Shield, No.8[02.2014 -] ZWR80 |
G92QA-28010 |
US $13.40 |
||
|
G92Z0
|
G92Z0
G92Z0-33030
Block Assy, Hv Battery Junction
[02.2014 -] ZWR80 |
G92Z0-33030 |
— | ||
| replacement | |||||
|
G92Z0
|
G92Z0
G92Z0-33031 BLOCK ASSY HV[02.2014 -] ZWR80 |
G92Z0-33031 |
US $406 |
||
|
G920Q
|
G920Q
G920Q-28020 Shield Sub-Assy, Hybrid Battery, No.1[02.2014 -] ZWR80 |
G920Q-28020 |
US $30.72 |
||
|
G3834
|
G3834
G3834-48010 Grip, Service PlugSERVICE PLUG [02.2014 -] ZWR80 |
G3834-48010 |
US $34.50 |
||
|
G9289A
|
G9289A
G9288-50010 Label, Battery Charging NoticeBATTERY CARGING NOTICE [02.2014 -] ZWR80 |
G9288-50010 |
US $4.22 |
||
|
G9295B
|
G9295B
G9295-30020 Striker, Battery Cover Lock[02.2014 -] ZWR80 |
G9295-30020 |
US $3.20 |
||
|
G9510
|
G9510
G9510-28030
Battery Assy, Hv Supply
[02.2014 -] ZWR80 |
G9510-28030 |
— | ||
