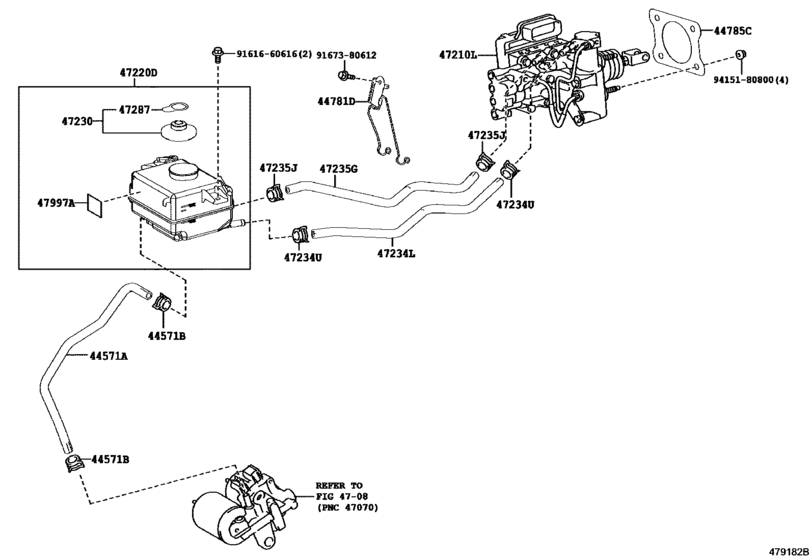

Brake Master Cylinder ([02.2014 - ] (1402- )ZWR80) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZWR80
- grade
- XI
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44571A
|
44571A
44571-28060 Hose, Brake Actuator, No.1[02.2014 - 06.2017] ZWR80 |
44571-28060 |
US $10.48 |
||
|
44571B
|
44571B
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[02.2014 - 06.2017] ZWR80 |
96137-41501 |
from US $1.92 |
||
|
44781D
|
44781D
44781-28050 Bracket, Reservoir Hose[02.2014 - 06.2017] ZWR80 |
44781-28050 |
US $3.35 |
||
|
44785C
|
44785C
44785-12040 Gasket, Brake Booster[02.2014 - 06.2017] ZWR80 |
44785-12040 |
from US $3.20 |
||
|
47210L
|
47210L
47050-28010 Brake Booster Assy, W/master Cylinder[02.2014 - 01.2016] ZWR80 |
47050-28010 |
US $2,910.40 |
||
|
47210L
|
47210L
47050-28020 Brake Booster Assy, W/master Cylinder[01.2016 - 06.2017] ZWR80 |
47050-28020 |
US $2,910.40 |
||
|
47220D
|
47220D
47220-28350 Reservoir Assy, Brake Master Cylinder[02.2014 - 06.2017] ZWR80 |
47220-28350 |
US $97.68 |
||
|
47230
|
47230
47230-20140 Cap Assy, Brake Master Cylinder Reservoir Filler[01.2014 - 06.2017] ZRR8#,ZWR80 |
47230-20140 |
from US $7.22 |
||
|
47234L
|
47234L
47234-28220 Hose, Reservoir, No.1[02.2014 - 06.2017] ZWR80 |
47234-28220 |
US $6.12 |
||
|
47234U
|
47234U
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[02.2014 - 06.2017] ZWR80 |
96137-41501 |
from US $1.92 |
||
|
47235G
|
47235G
47235-28200 Hose, Reservoir, No.2[02.2014 - 06.2017] ZWR80 |
47235-28200 |
US $6.12 |
||
|
47235J
|
47235J
96137-41501 Clamp Or Clip, Hose(For Water By-Pass Hose)[02.2014 - 06.2017] ZWR80 |
96137-41501 |
from US $1.92 |
||
|
47287
|
47287
47287-20010 Label, Brake Fluid Information[01.2014 - 06.2017] ZWR80 |
47287-20010 |
US $2.08 |
||
|
47997A
|
47997A
47997-76010 Label, Accumulator Caution, No.1[02.2014 - 06.2017] ZWR80 |
47997-76010 |
US $1.76 |
||
|
9161660616
|
9161660616
91616-60616 BOLT |
91616-60616 |
US $1.44 |
||
|
9167380612
|
9167380612
91673-80612 BOLT FLANGE |
91673-80612 |
from US $0.66 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
