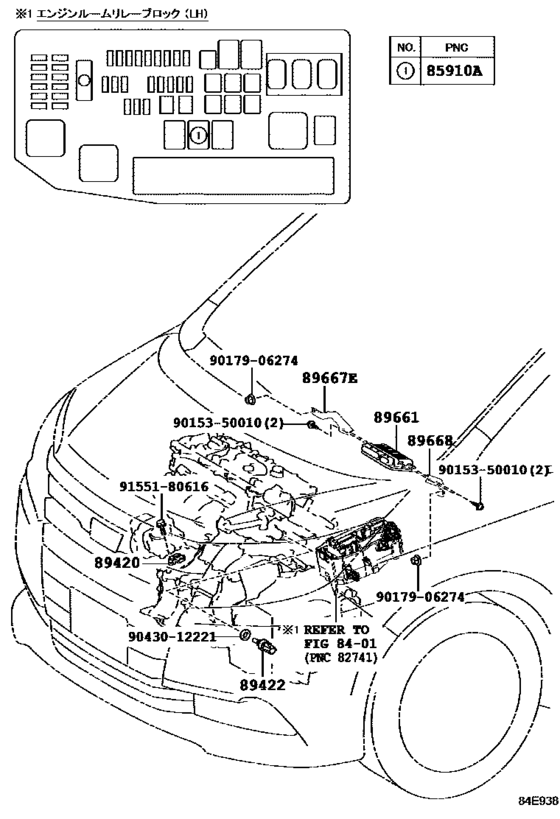

Electronic Fuel Injection System ([02.2014 - ] (1402- )ZWR80) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZWR80
- grade
- XI
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90987-02024 Relay, Ignition, No.1[02.2014 -] ZWR80 ＭＡＲＫ ９０９８７−０２０２４ |
90987-02024 |
US $38.75 |
||
|
85910A
|
85910A
90987-02027 Relay[02.2014 -] ZWR80 ＭＡＲＫ ９０９８７−０２０２７ |
90987-02027 |
from US $31.43 |
||
|
89420
|
89420
89421-47010 Sensor Assy, VacuumVACUUM (FOR E.F.I.) [02.2014 -] ZWR80 |
89421-47010 |
from US $87.32 |
||
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[01.2014 -] ZRR8#,ZWR80 |
89422-33030 |
from US $36.63 |
||
|
89661
|
89661
89661-28F30 Computer, Engine Control[02.2014 -] ZWR80 |
89661-28F30 |
US $802.26 |
||
|
89667E
|
89667E
89667-28160 Bracket, Engine Control Computer, No.1[01.2014 -] ZRR8#,ZWR80 |
89667-28160 |
US $7.28 |
||
|
89668
|
89668
89668-28160 Bracket, Engine Control Computer, No.2[01.2014 -] ZRR8#,ZWR80 |
89668-28160 |
US $7.28 |
||
|
9015350010
|
9015350010
90153-50010 BOLT |
90153-50010 |
from US $0.74 |
||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.72 |
