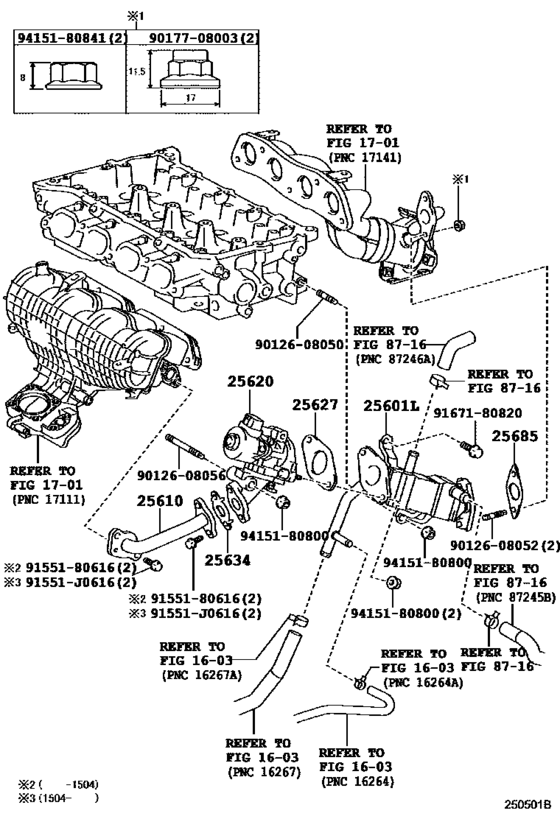

Exhaust Gas Recirculation System ([02.2014 - ] (1402- )2ZRFXE) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZWR80
- grade
- XI
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
25601L
|
25601L
25601-37010 Pipe Sub-Assy, Egr W/coolerEGR W/COOLER [02.2014 -] 2ZRFXE..ZWR80 |
25601-37010 |
US $226.08 |
||
|
25610
|
25610
25610-37011
Pipe Assy, Egr
[02.2014 - 01.2015] 2ZRFXE..ZWR80 |
25610-37011 |
— | ||
| replacements | |||||
|
25610
|
25610
25610-37012 Pipe Assy, Egr[02.2014 - 01.2015] 2ZRFXE..ZWR80 |
25610-37012 |
US $45.75 |
||
|
25610
|
25610
25634-37030 Gasket, Egr Pipe[02.2014 - 01.2015] 2ZRFXE..ZWR80 |
25634-37030 |
from US $2.42 |
||
|
25610
|
25610
25610-37012 Pipe Assy, Egr[02.2015 -] 2ZRFXE..ZWR80 |
25610-37012 |
US $45.75 |
||
|
25620
|
25620
25620-37120 Valve Assy, Egr[02.2014 -] 2ZRFXE..ZWR80 |
25620-37120 |
from US $282.80 |
||
|
25627
|
25627
25627-37010 Gasket, EGR Valve[02.2014 -] 2ZRFXE..ZWR80 |
25627-37010 |
from US $2.48 |
||
|
25634
|
25634
25634-37010
Gasket, Egr Pipe
[02.2014 - 01.2015] 2ZRFXE..ZWR80 |
25634-37010 |
— | ||
| replacement | |||||
|
25634
|
25634
25634-37030 Gasket, Egr Pipe[02.2014 - 01.2015] 2ZRFXE..ZWR80 |
25634-37030 |
from US $2.42 |
||
|
25634
|
25634
25634-37030 Gasket, Egr Pipe[02.2015 -] 2ZRFXE..ZWR80 |
25634-37030 |
from US $2.42 |
||
|
25685
|
25685
25685-37010 Gasket, Egr PipeEGR COOLER, NO.1 [02.2014 -] 2ZRFXE..ZWR80 |
25685-37010 |
from US $2.50 |
||
|
91551J0616
|
91551J0616
91551-J0616 New Genuine Part |
91551-J0616 |
US $0.96 |
||
|
9012608050
|
9012608050
90126-08050 New Genuine Part |
90126-08050 |
US $1.28 |
||
|
9012608052
|
9012608052
90126-08052 Bolt, Stud(For Oil Pan) |
90126-08052 |
from US $0.90 |
||
|
9012608056
|
9012608056
90126-08056 Bolt, Stud(For Exhaust Manifold, Rh) |
90126-08056 |
US $1.92 |
||
|
9017708003
|
9017708003
90177-08003 NUT LOCK |
90177-08003 |
US $1.28 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.72 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.88 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
|
9415180841
|
9415180841
94151-80841 FLANGE NUT |
94151-80841 |
from US $0.92 |
||
