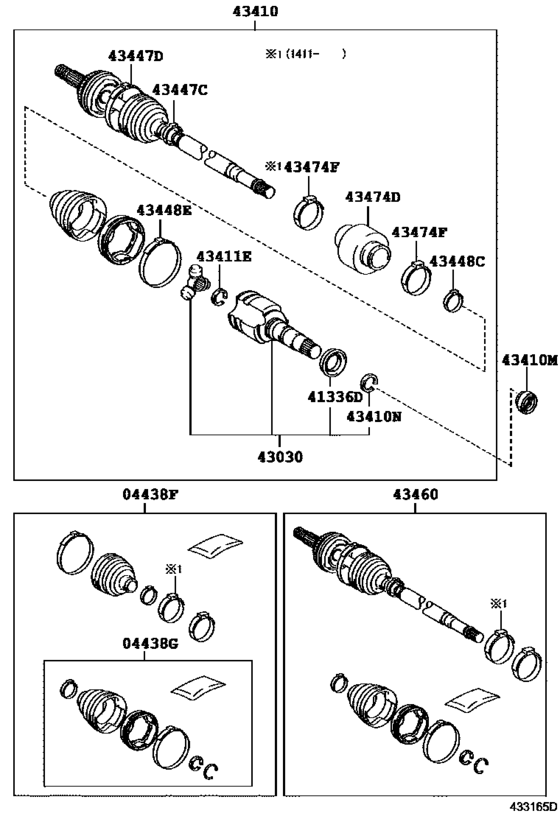

Front Drive Shaft ([02.2014 - ] ﾐｷﾞｶﾞﾜ (1402- )ZWR80) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZWR80
- grade
- XI
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04428-47062 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2014 - 09.2015] ZWR80 |
04428-47062 |
US $100.46 |
||
| replacement | |||||
|
04438F
|
04438F
04428-47065
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[08.2014 - 09.2015] ZWR80 |
04428-47065 |
— | ||
|
04438F
|
04438F
04428-47063 Boot Kit, Front Drive Shaft, In & Outboard, Rh[09.2015 - 11.2015] ZWR80 |
04428-47063 |
US $100.46 |
||
| replacement | |||||
|
04438F
|
04438F
04428-47065
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[09.2015 - 11.2015] ZWR80 |
04428-47065 |
— | ||
|
04438F
|
04438F
04428-47064 Boot Kit, Front Drive Shaft, In & Outboard, Rh[11.2015 - 09.2016] ZWR80 |
04428-47064 |
US $100.46 |
||
| replacement | |||||
|
04438F
|
04438F
04428-47065
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[11.2015 - 09.2016] ZWR80 |
04428-47065 |
— | ||
|
04438F
|
04438F
04428-47065
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[09.2016 -] ZWR80 |
04428-47065 |
— | ||
|
04438G
|
04438G
04437-47031 Boot Kit, Front Drive Shaft Inboard Joint, Rh[02.2014 - 09.2015] ZWR80 |
04437-47031 |
US $61.59 |
||
| replacement | |||||
|
04438G
|
04438G
04437-47033 Boot Kit, Front Drive Shaft Inboard Joint, Rh[02.2014 - 09.2015] ZWR80 |
04437-47033 |
US $63.08 |
||
|
04438G
|
04438G
04437-47032
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[09.2015 - 11.2015] ZWR80 |
04437-47032 |
— | ||
| replacement | |||||
|
04438G
|
04438G
04437-47033 Boot Kit, Front Drive Shaft Inboard Joint, Rh[09.2015 - 11.2015] ZWR80 |
04437-47033 |
US $63.08 |
||
|
04438G
|
04438G
04437-47033 Boot Kit, Front Drive Shaft Inboard Joint, Rh[11.2015 -] ZWR80 |
04437-47033 |
US $63.08 |
||
|
41336D
|
41336D
41336-12020 Cover, Dust(For Front Drive Shaft)[01.2014 -] ZRR80,ZWR80 |
41336-12020 |
from US $3.71 |
||
|
43030
|
43030
43040-47010 Joint Assy, Front Drive Inboard, RhFRONT DRIVE INBOARD, RH [02.2014 -] ZWR80 |
43040-47010 |
US $222.77 |
||
|
43410
|
43410
43410-28170 Shaft Assy, Front Drive, Rh[02.2014 -] ZWR80..G,GI,V,X,XI |
43410-28170 |
US $803.60 |
||
|
43410M
|
43410M
90311-40037 Oil Seal, Front Drive Shaft, Rh[02.2014 -] ZWR80 |
90311-40037 |
from US $7.52 |
||
|
43410N
|
43410N
90521-33002 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[02.2014 -] ZWR80 |
90521-33002 |
from US $1.60 |
||
|
43411E
|
43411E
43425-12070 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[02.2014 -] ZWR80 |
43425-12070 |
US $0.64 |
||
|
43447C
|
43447C
42345-12230 Clamp (For Front Axle Outboard Joint Boot Rh)[02.2014 -] ZWR80 |
42345-12230 |
US $3.52 |
||
|
43447D
|
43447D
42345-12240 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[02.2014 -] ZWR80 |
42345-12240 |
US $5.44 |
||
|
43448C
|
43448C
42345-12230 Clamp (For Front Axle Outboard Joint Boot Rh)[02.2014 -] ZWR80 |
42345-12230 |
US $3.52 |
||
|
43448E
|
43448E
42345-12180 Clamp (For Front Axle Outboard Joint Boot Lh)[02.2014 -] ZWR80 |
42345-12180 |
US $5.28 |
||
|
43460
|
43460
43460-80165 Shaft Assy, Front Drive Outboard Joint, Rh[08.2014 - 09.2015] ZWR80 |
43460-80165 |
US $586.77 |
||
| replacement | |||||
|
43460
|
43460
43460-80183 Shaft Assy, Front Drive Outboard Joint, Rh[08.2014 - 09.2015] ZWR80 |
43460-80183 |
US $532.90 |
||
|
43460
|
43460
43460-80171 Shaft Assy, Front Drive Outboard Joint, Rh[09.2015 - 11.2015] ZWR80 |
43460-80171 |
US $586.77 |
||
| replacement | |||||
|
43460
|
43460
43460-80183 Shaft Assy, Front Drive Outboard Joint, Rh[09.2015 - 11.2015] ZWR80 |
43460-80183 |
US $532.90 |
||
|
43460
|
43460
43460-80177 Shaft Assy, Front Drive Outboard Joint, Rh[11.2015 - 09.2016] ZWR80..G,GI,V,X,XI |
43460-80177 |
US $586.77 |
||
| replacement | |||||
|
43460
|
43460
43460-80183 Shaft Assy, Front Drive Outboard Joint, Rh[11.2015 - 09.2016] ZWR80..G,GI,V,X,XI |
43460-80183 |
US $532.90 |
||
|
43460
|
43460
43460-80183 Shaft Assy, Front Drive Outboard Joint, Rh[09.2016 -] ZWR80..G,GI,V,X,XI |
43460-80183 |
US $532.90 |
||
|
43474D
|
43474D
43474-12120 Damper, Drive Shaft[02.2014 - 11.2014] ZWR80..ESQIR |
43474-12120 |
US $68.72 |
||
| replacement | |||||
|
43474D
|
43474D
43474-12210 Damper, Drive Shaft[02.2014 - 11.2014] ZWR80..ESQIR |
43474-12210 |
US $62.46 |
||
|
43474D
|
43474D
43474-12210 Damper, Drive Shaft[11.2014 -] ZWR80 |
43474-12210 |
US $62.46 |
||
|
43474F
|
43474F
42345-12090 Clamp (For Drive Shaft Damper Setting)[11.2014 -] ZWR80 |
42345-12090 |
US $2.24 |
||
| replacement | |||||
|
43474F
|
43474F
42345-14010 Clamp, Rear Drive Shaft Boot[11.2014 -] ZWR80 |
42345-14010 |
US $11.20 |
||
|
43474F
|
43474F
42345-14010 Clamp, Rear Drive Shaft Boot[01.2014 - 11.2014] ZRR8#,ZWR80 |
42345-14010 |
US $11.20 |
||
