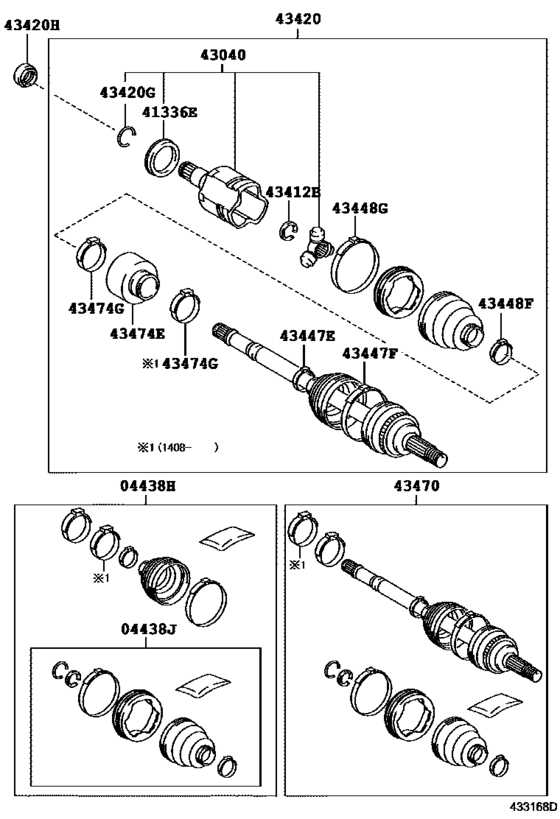

Front Drive Shaft ([02.2014 - ] ﾋﾀﾞﾘｶﾞﾜ (1402- )ZWR80) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZWR80
- grade
- XI
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04428-47062 Boot Kit, Front Drive Shaft, In & Outboard, Rh[08.2014 - 09.2015] ZWR80 |
04428-47062 |
US $100.46 |
||
| replacement | |||||
|
04438H
|
04438H
04428-47065
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[08.2014 - 09.2015] ZWR80 |
04428-47065 |
— | ||
|
04438H
|
04438H
04428-47063 Boot Kit, Front Drive Shaft, In & Outboard, Rh[09.2015 - 11.2015] ZWR80 |
04428-47063 |
US $100.46 |
||
| replacement | |||||
|
04438H
|
04438H
04428-47065
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[09.2015 - 11.2015] ZWR80 |
04428-47065 |
— | ||
|
04438H
|
04438H
04428-47064 Boot Kit, Front Drive Shaft, In & Outboard, Rh[11.2015 - 09.2016] ZWR80 |
04428-47064 |
US $100.46 |
||
| replacement | |||||
|
04438H
|
04438H
04428-47065
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[11.2015 - 09.2016] ZWR80 |
04428-47065 |
— | ||
|
04438H
|
04438H
04428-47065
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[09.2016 -] ZWR80 |
04428-47065 |
— | ||
|
04438J
|
04438J
04437-47031 Boot Kit, Front Drive Shaft Inboard Joint, Rh[02.2014 - 09.2015] ZWR80 |
04437-47031 |
US $61.59 |
||
| replacement | |||||
|
04438J
|
04438J
04437-47033 Boot Kit, Front Drive Shaft Inboard Joint, Rh[02.2014 - 09.2015] ZWR80 |
04437-47033 |
US $63.08 |
||
|
04438J
|
04438J
04437-47032
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[09.2015 - 11.2015] ZWR80 |
04437-47032 |
— | ||
| replacement | |||||
|
04438J
|
04438J
04437-47033 Boot Kit, Front Drive Shaft Inboard Joint, Rh[09.2015 - 11.2015] ZWR80 |
04437-47033 |
US $63.08 |
||
|
04438J
|
04438J
04437-47033 Boot Kit, Front Drive Shaft Inboard Joint, Rh[11.2015 -] ZWR80 |
04437-47033 |
US $63.08 |
||
|
41336E
|
41336E
41336-28020 Cover, Front Drive Shaft Dust, Lh[01.2014 -] ZRR8#,ZWR80 |
41336-28020 |
US $4.48 |
||
|
43040
|
43040
43040-47030 Joint Assy, Front Drive Inboard, LhFRONT DRIVE INBOARD, LH [02.2014 -] ZWR80 |
43040-47030 |
US $222.77 |
||
|
43412B
|
43412B
43425-12070 Ring, Shaft Snap (For Front Drive Inner Shaft Inner Rh)[02.2014 -] ZWR80 |
43425-12070 |
US $0.64 |
||
|
43420
|
43420
43420-28120 Shaft Assy, Front Drive, Lh[02.2014 -] ZWR80..G,GI,V,X,XI |
43420-28120 |
US $726.60 |
||
|
43420G
|
43420G
90521-33002 Ring, Hole Snap (For Rear Differential Side Gear Shaft)[01.2014 -] ZRR8#,ZWR80 |
90521-33002 |
from US $1.60 |
||
|
43420H
|
43420H
90311-50045 Oil Seal, Front Drive Shaft, Lh[02.2014 -] ZWR80 |
90311-50045 |
US $15.35 |
||
| replacement | |||||
|
43420H
|
43420H
90311-50064 SEAL TYPE T OIL[02.2014 -] ZWR80 |
90311-50064 |
from US $8.64 |
||
|
43447E
|
43447E
42345-12230 Clamp (For Front Axle Outboard Joint Boot Rh)[02.2014 -] ZWR80 |
42345-12230 |
US $3.52 |
||
|
43447F
|
43447F
42345-12240 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[02.2014 -] ZWR80 |
42345-12240 |
US $5.44 |
||
|
43448F
|
43448F
42345-12230 Clamp (For Front Axle Outboard Joint Boot Rh)[02.2014 -] ZWR80 |
42345-12230 |
US $3.52 |
||
|
43448G
|
43448G
42345-12180 Clamp (For Front Axle Outboard Joint Boot Lh)[02.2014 -] ZWR80 |
42345-12180 |
US $5.28 |
||
|
43470
|
43470
43470-80359 Shaft Assy, Front Drive Outboard Joint, Lh[08.2014 - 09.2015] ZWR80 |
43470-80359 |
US $496.50 |
||
| replacement | |||||
|
43470
|
43470
43470-80403 Shaft Assy, Front Drive Outboard Joint, Lh[08.2014 - 09.2015] ZWR80 |
43470-80403 |
US $469.22 |
||
|
43470
|
43470
43470-80374 Shaft Assy, Front Drive Outboard Joint, Lh[09.2015 - 11.2015] ZWR80 |
43470-80374 |
US $496.50 |
||
| replacement | |||||
|
43470
|
43470
43470-80403 Shaft Assy, Front Drive Outboard Joint, Lh[09.2015 - 11.2015] ZWR80 |
43470-80403 |
US $469.22 |
||
|
43470
|
43470
43470-80390 Shaft Assy, Front Drive Outboard Joint, Lh[11.2015 - 09.2016] ZWR80..G,GI,V,X,XI |
43470-80390 |
US $496.50 |
||
| replacement | |||||
|
43470
|
43470
43470-80403 Shaft Assy, Front Drive Outboard Joint, Lh[11.2015 - 09.2016] ZWR80..G,GI,V,X,XI |
43470-80403 |
US $469.22 |
||
|
43470
|
43470
43470-80403 Shaft Assy, Front Drive Outboard Joint, Lh[09.2016 -] ZWR80..G,GI,V,X,XI |
43470-80403 |
US $469.22 |
||
|
43474E
|
43474E
43474-12200 Damper, Front Drive Shaft, Lh[02.2014 -] ZWR80 |
43474-12200 |
US $37.56 |
||
|
43474G
|
43474G
42345-12090 Clamp (For Drive Shaft Damper Setting)[08.2014 -] ZWR80 |
42345-12090 |
US $2.24 |
||
| replacement | |||||
|
43474G
|
43474G
42345-14010 Clamp, Rear Drive Shaft Boot[08.2014 -] ZWR80 |
42345-14010 |
US $11.20 |
||
