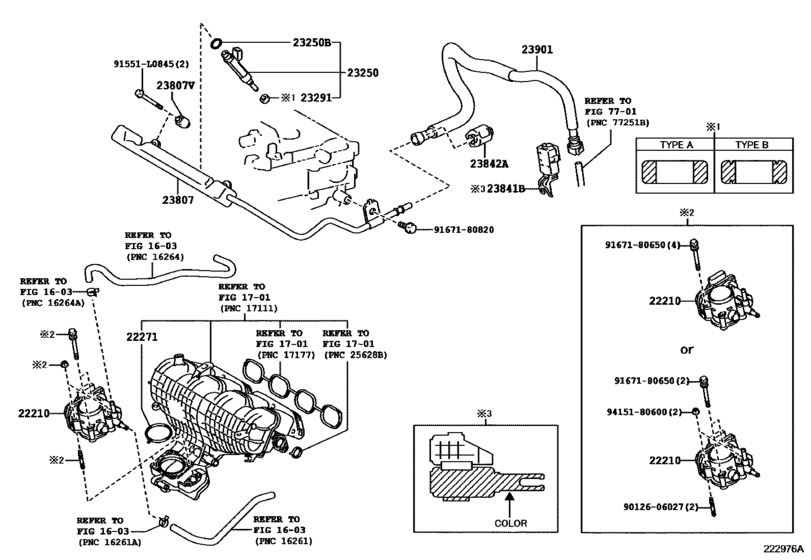

Fuel Injection System ([01.2014 - ] (1401- )2ZRFXE) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZWR80
- grade
- XI
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22030-37060 Body Assy, ThrottleTHROTTLE [02.2014 - 06.2017] 2ZRFXE..ZWR80 |
22030-37060 |
US $737.80 |
||
|
22271
|
22271
22271-37010 Gasket, Throttle BodyTHROTTLE BODY [02.2014 -] 2ZRFXE..ZWR80 |
22271-37010 |
US $5.44 |
||
|
23250
|
23250
23209-39146 Injector Assy, FuelFUEL [02.2014 -] 2ZRFXE..ZWR80 |
23209-39146 |
from US $181.44 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[01.2014 -] 2ZRFXE,3ZRFAE..ZRR8#,ZWR80 |
90301-07037 |
from US $2.24 |
||
|
23291
|
23291
23291-23010 Insulator, Injector Vibration[01.2014 -] 2ZRFXE,3ZRFAE..ZRR8#,ZWR80 ＴＹＰＥ Ａ：イラスト参照 |
23291-23010 |
from US $3 |
||
|
23291
|
23291
23291-28020 Insulator, Injector Vibration[01.2014 -] 2ZRFXE,3ZRFAE..ZRR8#,ZWR80 ＴＹＰＥ Ｂ：イラスト参照 |
23291-28020 |
from US $4.96 |
||
|
23807
|
23807
23814-37061 Pipe Sub-Assy, Fuel Delivery[02.2014 -] 2ZRFXE..ZWR80 |
23814-37061 |
US $127.55 |
||
|
23807V
|
23807V
23891-37010 Spacer, No.1(For Delivery Pipe)[01.2014 -] 2ZRFXE,3ZRFAE..ZRR8#,ZWR80 |
23891-37010 |
US $3.84 |
||
|
23841B
|
23841B
23841-37080 Clamp, Fuel Pipe, No.1(For Efi)[01.2014 - 01.2016] 2ZRFXE,3ZRFAE..ZRR8#,ZWR80 |
23841-37080 |
US $4.51 |
||
|
23841B
|
23841B
23841-37081 Clamp, Fuel Pipe, No.1(For Efi)[02.2016 -] 2ZRFXE,3ZRFAE..ZRR8#,ZWR80 |
23841-37081 |
US $3.85 |
||
|
23842A
|
23842A
23842-28010 Clamp, Fuel Pipe, No.1(For Efi)[01.2014 -] 2ZRFXE,3ZRFAE..ZRR8#,ZWR80 |
23842-28010 |
from US $5.99 |
||
|
23901
|
23901
23901-37230 Tube Sub-Assy, Fuel[02.2014 -] 2ZRFXE..ZWR80 |
23901-37230 |
US $63.19 |
||
|
91551L0845
|
91551L0845
91551-L0845 BOLT FLANGE |
91551-L0845 |
US $0.79 |
||
|
9012606027
|
9012606027
90126-06027 STUD HEXALOBULAR |
90126-06027 |
US $1.28 |
||
|
9167180650
|
9167180650
91671-80650 New Genuine Part |
91671-80650 |
US $1.28 |
||
|
9167180820
|
9167180820
91671-80820 Bolt (For Transmission Control Cable Bracket) |
91671-80820 |
from US $0.88 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.72 |
