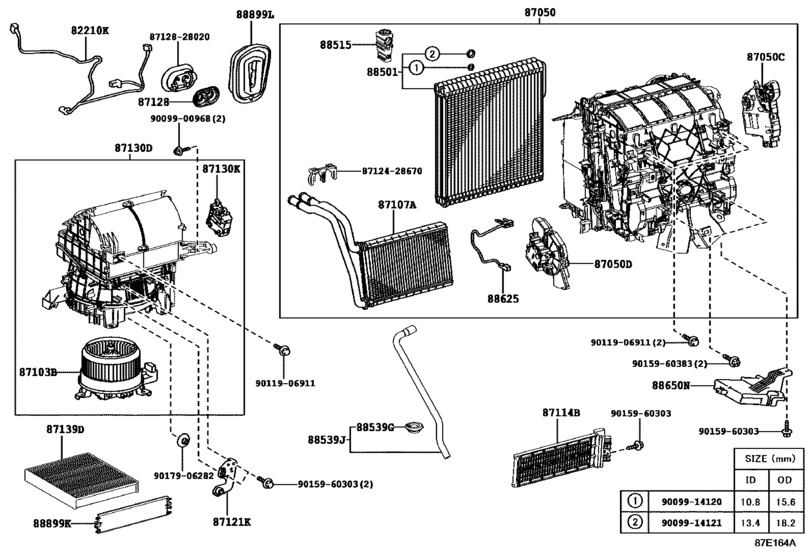

Heating & Air Conditioning - Cooler Unit ([02.2014 - ] ﾌﾛﾝﾄ (1402- )ZWR80) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZWR80
- grade
- XI
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82210K
|
82210K
82212-28090
Harness Assy, Air Conditioner
[02.2014 -] ZWR80 |
82212-28090 |
— | ||
|
87050
|
87050
87050-28710 Radiator Assy, Air Conditioner[02.2014 -] ZWR80 |
87050-28710 |
US $879.42 |
||
|
87050
|
87050
87050-28730 Radiator Assy, Air Conditioner[02.2014 -] ZWR80 寒冷地仕様 |
87050-28730 |
US $879.42 |
||
|
87050C
|
87050C
87106-48170 Damper Servo Sub-Assy, Air Conditioner Radiator, No.1[01.2014 -] ZRR8#,ZWR80 |
87106-48170 |
US $101.34 |
||
|
87050D
|
87050D
87106-28230
Damper Servo Sub-Assy, Air Conditioner Radiator, No.1
[02.2014 -] ZWR80 |
87106-28230 |
— | ||
|
87103B
|
87103B
87103-28130
Motor Sub-Assy, Blower W/fan
[02.2014 -] ZWR80 寒冷地仕様 |
87103-28130 |
— | ||
|
87103B
|
87103B
87103-48160
Motor Sub-Assy, Blower W/fan
[07.2014 -] ZRR8#,ZWR80 |
87103-48160 |
— | ||
|
87107A
|
87107A
87107-28320
Unit Sub-Assy, Heater Radiator
[01.2014 -] ZRR8#,ZWR80 |
87107-28320 |
— | ||
|
87114B
|
87114B
87114-47020
Cover, Heater
[03.2017 - 06.2017] ZRR8#,ZWR80 |
87114-47020 |
— | ||
|
87114B
|
87114B
87114-48110
Cover, Heater
[01.2014 - 02.2017] ZRR8#,ZWR80 |
87114-48110 |
— | ||
|
87121K
|
87121K
87114-28200
Bracket, Heater
[01.2014 -] ZRR8#,ZWR80 |
87114-28200 |
— | ||
|
87128
|
87128
87128-28010 Grommet, Heater[01.2014 -] ZRR8#,ZWR80 |
87128-28010 |
US $6.40 |
||
|
87130D
|
87130D
87130-28590
Blower Assy
[01.2014 -] ZRR8#,ZWR80 |
87130-28590 |
— | ||
|
87130D
|
87130D
87130-28600
Blower Assy
[02.2014 -] ZWR80 寒冷地仕様 |
87130-28600 |
— | ||
|
87130K
|
87130K
87106-28240 Damper Servo Sub-Assy, Blower, No.1[01.2014 -] ZRR8#,ZWR80 |
87106-28240 |
from US $101.34 |
||
|
87130K
|
87130K
87106-28250 Damper Servo Sub-Assy, Blower, No.1[02.2014 -] ZWR80 寒冷地仕様 |
87106-28250 |
US $113.85 |
||
|
87139D
|
87139D
87139-28020 Element, Air Refiner[01.2014 -] ZRR8#,ZWR80 花粉フィルタ |
87139-28020 |
from US $30.40 |
||
|
87139D
|
87139D
87139-58010 Filter, Clean Air (Charcoal)[01.2014 -] ZRR8#,ZWR80 脱臭フィルタ |
87139-58010 |
from US $60.80 |
||
| replacement | |||||
|
87139D
|
87139D
87139-YZZ49
Filter, Cabin (Charcoal)
[01.2014 -] ZRR8#,ZWR80 脱臭フィルタ |
87139-YZZ49 |
— | ||
|
88501
|
88501
88501-28420
Evaporator Sub-Assy, Cooler, No.1
[02.2014 -] ZWR80 |
88501-28420 |
— | ||
|
88515
|
88515
88515-48110 Valve, Cooler Expansion[01.2014 -] ZRR8#,ZWR80 |
88515-48110 |
from US $93.24 |
||
|
88539G
|
88539G
90099-32129
Grommet (For Cooler Unit Drain Hose)
[01.2014 -] ZRR8#,ZWR80 |
90099-32129 |
— | ||
|
88539J
|
88539J
88539-28400
Hose, Drain Cooler
[01.2014 -] ZRR8#,ZWR80 |
88539-28400 |
— | ||
|
88625
|
88625
88620-28050 Sensor, Evaporator Temperature[02.2014 -] ZWR80 |
88620-28050 |
from US $8.39 |
||
|
88650N
|
88650N
88650-28C00 Amplifier Assy, Air Conditioner[02.2014 -] ZWR80..SI,X,XI,ZS |
88650-28C00 |
US $307.51 |
||
|
88650N
|
88650N
88650-28C10
Amplifier Assy, Air Conditioner
[02.2014 -] ZWR80..G,GI,V; ZWR80..SI,X,XI,ZS 寒冷地仕様 |
88650-28C10 |
— | ||
|
88899K
|
88899K
88899-28620
Plate, Cover
[01.2014 -] ZRR8#,ZWR80 |
88899-28620 |
— | ||
|
88899L
|
88899L
88899-28660
Parts, Cooling Unit
[01.2014 -] ZRR8#,ZWR80 |
88899-28660 |
— | ||
|
8712428670
|
8712428670
87124-28670
Clamp, Heater
|
87124-28670 |
— | ||
|
8712828020
|
8712828020
87128-28020
Grommet, Heater
|
87128-28020 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.88 |
||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.22 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.79 |
||
|
9011906911
|
9011906911
90119-06911 BOLT WWASHER |
90119-06911 |
US $1.28 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.44 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
