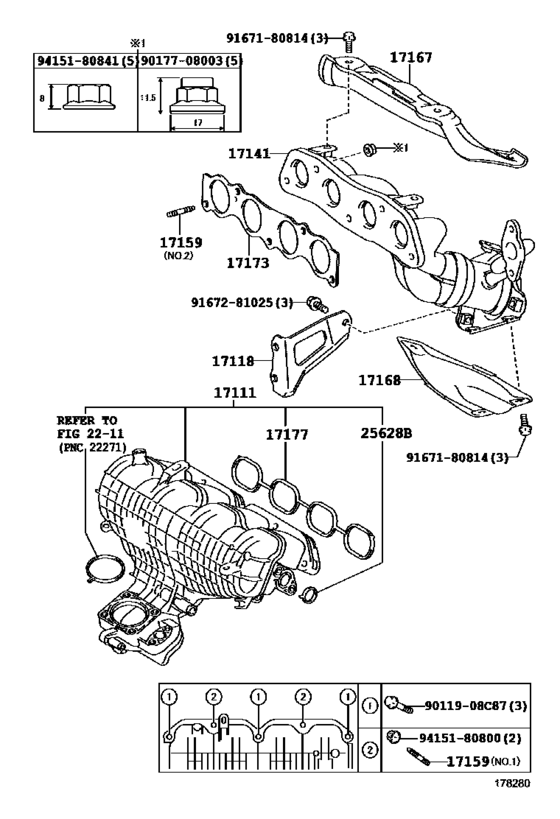

Manifold ([02.2014 - ] (1402- )2ZRFXE) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZWR80
- grade
- XI
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17120-37054 Manifold, Intake[02.2014 -] 2ZRFXE..ZWR80 |
17120-37054 |
from US $287 |
||
|
17118
|
17118
17118-37080 Stay, ManifoldMANIFOLD [02.2014 -] 2ZRFXE..ZWR80 |
17118-37080 |
US $15.72 |
||
|
17141
|
17141
17141-37150 Manifold, Exhaust[02.2014 -] 2ZRFXE..ZWR80 |
17141-37150 |
US $302.27 |
||
|
17159
|
17159
90126-08026 Bolt, Stud(For Intake Manifold To Cylinder Head)[01.2014 -] 2ZRFXE,3ZRFAE..ZRR8#,ZWR80 ＮＯ．１ |
90126-08026 |
from US $2.46 |
||
|
17159
|
17159
90126-08052 Bolt, Stud(For Oil Pan)[01.2014 -] 2ZRFXE,3ZRFAE..ZRR8#,ZWR80 ＮＯ．２ |
90126-08052 |
from US $0.90 |
||
|
17167
|
17167
17167-37080 Insulator, Exhaust Manifold Heat, No.1EXHAUST MANIFOLD HEAT, NO.1 [02.2014 -] 2ZRFXE..ZWR80 |
17167-37080 |
US $48.48 |
||
|
17168
|
17168
17168-37110 Insulator, Exhaust Manifold Heat, No.2EXHAUST MANIFOLD HEAT, NO.2 [02.2014 -] 2ZRFXE..ZWR80 |
17168-37110 |
US $26.06 |
||
|
17173
|
17173
17173-37010 Gasket, Exhaust Manifold To Head[01.2014 -] 2ZRFXE,3ZRFAE..ZRR8#,ZWR80 |
17173-37010 |
from US $13.83 |
||
|
17177
|
17177
17177-37030 Gasket, Intake Manifold To Head, No.1[01.2014 -] 2ZRFXE,3ZRFAE..ZRR8#,ZWR80 |
17177-37030 |
from US $11.06 |
||
|
25628B
|
25628B
25628-28010 Gasket, Egr Inlet[02.2014 -] 2ZRFXE..ZWR80 |
25628-28010 |
from US $1.95 |
||
|
9011908C87
|
9011908C87
90119-08C87 New Genuine Part |
90119-08C87 |
US $1.60 |
||
|
9017708003
|
9017708003
90177-08003 NUT LOCK |
90177-08003 |
from US $0.78 |
||
|
9167180814
|
9167180814
91671-80814 BOLT FLANGE WWASER |
91671-80814 |
US $1.28 |
||
| replacement | |||||
|
9167180814
|
9167180814
90119-A0165 New Genuine Part |
90119-A0165 |
US $3.48 |
||
|
9167281025
|
9167281025
91672-81025 Bolt, Center Support Bearing Bracket |
91672-81025 |
from US $1.17 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.80 |
||
|
9415180841
|
9415180841
94151-80841 FLANGE NUT |
94151-80841 |
from US $0.92 |
||
