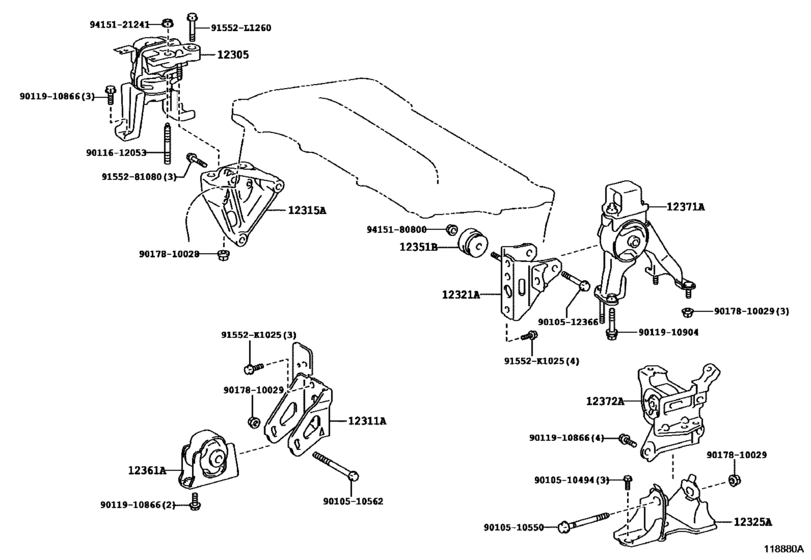

Mounting ([02.2014 - ] (1402- )2ZRFXE) Diagram Toyota NOAH/ VOXY/ ESQUIRE
- Year
- 2014 - 2017
- Sales region
- Japan
- Frame
- ZWR80
- grade
- XI
- ENGINE
- 2ZRFXE
- TRANSMISSION
- CVT
- Model
- ESQUIRE
- From
- 10.2014
- To
- 06.2017
- Seating Capacity
- 07S
- Vehicle Model
- ESQUIRE
- Fuel Induction
- HTWC
- Building Condition
- CBU
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12305
|
12305
12305-37310 Insulator Sub-Assy, Engine Mounting, Rh[02.2014 -] 2ZRFXE..ZWR80 |
12305-37310 |
from US $149.76 |
||
|
12311A
|
12311A
12311-37230 Bracket, Engine Mounting, Front(For Transverse Engine)[02.2014 -] 2ZRFXE..ZWR80 |
12311-37230 |
US $32.07 |
||
|
12315A
|
12315A
12315-37030 Bracket, Engine Mounting, Rh(For Transverse Engine)[01.2014 -] 2ZRFXE,3ZRFAE..ZRR8#,ZWR80 |
12315-37030 |
US $46.30 |
||
|
12321A
|
12321A
12321-37240 Bracket, Engine Mounting, Rear(For Transverse Engine)[02.2014 -] 2ZRFXE..ZWR80 |
12321-37240 |
US $28.12 |
||
|
12325A
|
12325A
12325-37230 Bracket, Engine Mounting, Lh(For Transverse Engine)[02.2014 -] 2ZRFXE..ZWR80 |
12325-37230 |
US $28.38 |
||
|
12351B
|
12351B
12351-23010 Damper, Engine Mounting[02.2014 -] 2ZRFXE..ZWR80 |
12351-23010 |
US $27.51 |
||
|
12361A
|
12361A
12361-37210 Insulator, Engine Mounting, Front(For Transverse Engine)[02.2014 -] 2ZRFXE..ZWR80 |
12361-37210 |
US $74.78 |
||
|
12371A
|
12371A
12371-37350 Insulator, Engine Mounting, Rear[02.2014 -] 2ZRFXE..ZWR80 |
12371-37350 |
US $115.44 |
||
|
12372A
|
12372A
12372-37290 Insulator, Engine Mounting, Lh(For Transverse Engine)[02.2014 -] 2ZRFXE..ZWR80 |
12372-37290 |
US $93.24 |
||
|
91552K1025
|
91552K1025
91552-K1025 BOLT FLANGE |
91552-K1025 |
US $1.60 |
||
|
91552L1260
|
91552L1260
91552-L1260 BOLT FLANGE |
91552-L1260 |
US $4.32 |
||
|
9010510494
|
9010510494
90105-10494 BOLT FLANGE |
90105-10494 |
US $1.60 |
||
|
9010510550
|
9010510550
90105-10550 BOLT FLANGE |
90105-10550 |
US $3.84 |
||
|
9010510562
|
9010510562
90105-10562 Bolt, No.2(For Alternator) |
90105-10562 |
US $3.84 |
||
|
9010512366
|
9010512366
90105-12366 BOLT FLANGE |
90105-12366 |
US $3.84 |
||
|
9011612053
|
9011612053
90116-12053 BOLT STUD |
90116-12053 |
US $4.96 |
||
|
9011910866
|
9011910866
90119-10866 BOLT WWASHER |
90119-10866 |
from US $0.99 |
||
|
9011910904
|
9011910904
90119-10904 BOLT WWASHER |
90119-10904 |
US $3.52 |
||
|
9017810028
|
9017810028
90178-10028 New Genuine Part |
90178-10028 |
US $1.92 |
||
|
9017810029
|
9017810029
90178-10029 Nut(For Front Suspension Support) |
90178-10029 |
from US $0.94 |
||
|
9155281080
|
9155281080
91552-81080 Bolt(For Alternator) |
91552-81080 |
from US $1.56 |
||
|
9415121241
|
9415121241
94151-21241 Nut(For Front Stabilizer Link) |
94151-21241 |
from US $0.94 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.82 |
