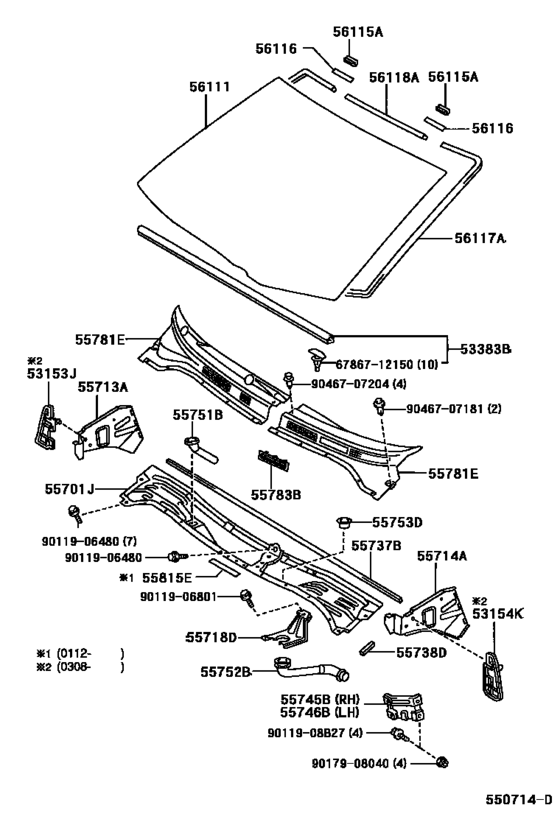

Cowl Panel & Windshield Glass ([04.2000 - ] (0004- )) Diagram Toyota OPA
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- ACT10
- grade
- I
- ENGINE
- 1AZFSE
- Model
- OPA
- From
- 08.2000
- To
- 04.2005
- Gear Shift Type
- CVHC
- Vehicle Model
- OPA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53153J
|
53153J
53153-63010 Guide, Radiator Grille Side Air, Rh[08.2003 -] ACT10,ZCT1# |
53153-63010 |
US $21.55 |
||
|
53154K
|
53154K
53154-63010 Guide, Radiator Grille Side Air, Lh[08.2003 -] ACT10,ZCT1# |
53154-63010 |
US $24.02 |
||
|
53383B
|
53383B
53383-63010 Seal, Hood To Cowl Top[04.2000 - 05.2002] ACT10,ZCT1# |
53383-63010 |
US $16.16 |
||
| replacement | |||||
|
53383B
|
53383B
53383-63011 Seal, Hood To Cowl Top[04.2000 - 05.2002] ACT10,ZCT1# |
53383-63011 |
US $16.16 |
||
|
53383B
|
53383B
53383-63011 Seal, Hood To Cowl Top[08.2003 -] ACT10,ZCT1# |
53383-63011 |
US $16.16 |
||
|
55701J
|
55701J
55701-63010 Panel Sub-Assy, Cowl Top, Outer[04.2000 - 05.2002] ACT10,ZCT1# |
55701-63010 |
US $135.41 |
||
|
55701J
|
55701J
55701-63020 Panel Sub-Assy, Cowl Top, Outer[05.2002 -] ACT10,ZCT1# |
55701-63020 |
US $216.94 |
||
|
55713A
|
55713A
55713-63010 Panel, Cowl Top Side, Rh[04.2000 - 05.2002] ACT10,ZCT1# |
55713-63010 |
US $53.14 |
||
|
55714A
|
55714A
55714-63010 Panel, Cowl Top Side, Lh[04.2000 - 05.2002] ACT10,ZCT1# |
55714-63010 |
US $53.14 |
||
|
55718D
|
55718D
55718-63010 Bracket, Cowl Top Outer Panel, No.1[04.2000 - 05.2002] ACT10,ZCT1# |
55718-63010 |
US $12.67 |
||
|
55737B
|
55737B
55737-48010 Seal, Heater Air Duct Splash Shield, No.1[04.2000 - 05.2002] ACT10,ZCT1# |
55737-48010 |
US $14.71 |
||
|
55738D
|
55738D
55738-63010 Seal, Heater Air Duct Splash Shield, No.2[04.2000 - 05.2002] ACT10,ZCT1# |
55738-63010 |
US $2.04 |
||
|
55745B
|
55745B
55745-63010 Panel, Cowl Top Inside Corner, Rh[04.2000 - 05.2002] ACT10,ZCT1# |
55745-63010 |
US $18.20 |
||
|
55746B
|
55746B
55746-63010 Panel, Cowl Top Inside Corner, Lh[04.2000 - 05.2002] ACT10,ZCT1# |
55746-63010 |
US $18.20 |
||
|
55751B
|
55751B
55751-63010 Hose, Cowl Water Extract, No.1[04.2000 - 05.2002] ACT10,ZCT1# |
55751-63010 |
US $13.69 |
||
|
55752B
|
55752B
55752-63010 Hose, Cowl Water Extract, No.2[04.2000 - 05.2002] ACT10,ZCT1# |
55752-63010 |
US $22.28 |
||
|
55753D
|
55753D
55753-63010 Shield, Cowl Water Extract, Rh[04.2000 - 05.2002] ACT10,ZCT1# |
55753-63010 |
US $4.37 |
||
|
55781E
|
55781E
55708-63010 Louver Sub-Assy, Cowl Top Ventilator[04.2000 - 05.2002] ACT10,ZCT1# 右側 |
55708-63010 |
US $94.64 |
||
| replacement | |||||
|
55781E
|
55781E
55708-63011 Louver Sub-Assy, Cowl Top Ventilator[04.2000 - 05.2002] ACT10,ZCT1# 右側 |
55708-63011 |
US $94.64 |
||
|
55781E
|
55781E
55708-63011 Louver Sub-Assy, Cowl Top Ventilator[08.2003 -] ACT10,ZCT1# 右側 |
55708-63011 |
US $94.64 |
||
|
55781E
|
55781E
55708-63020 Louver Sub-Assy, Cowl Top Ventilator[04.2000 - 05.2002] ACT10,ZCT1# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ,右側 |
55708-63020 |
US $104.83 |
||
| replacement | |||||
|
55781E
|
55781E
55708-63021 Louver Sub-Assy, Cowl Top Ventilator[04.2000 - 05.2002] ACT10,ZCT1# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ,右側 |
55708-63021 |
US $103.38 |
||
|
55781E
|
55781E
55708-63021 Louver Sub-Assy, Cowl Top Ventilator[08.2003 -] ACT10,ZCT1# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ,右側 |
55708-63021 |
US $103.38 |
||
|
55781E
|
55781E
55709-63010 Louver Sub-Assy, Cowl Top Ventilator[04.2000 - 05.2002] ACT10,ZCT1# 左側 |
55709-63010 |
US $94.64 |
||
| replacement | |||||
|
55781E
|
55781E
55709-63011 Louver Sub-Assy, Cowl Top Ventilator[04.2000 - 05.2002] ACT10,ZCT1# 左側 |
55709-63011 |
US $94.64 |
||
|
55781E
|
55781E
55709-63011 Louver Sub-Assy, Cowl Top Ventilator[08.2003 -] ACT10,ZCT1# 左側 |
55709-63011 |
US $94.64 |
||
|
55781E
|
55781E
55709-63020 Louver Sub-Assy, Cowl Top Ventilator[04.2000 - 05.2002] ACT10,ZCT1# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ,左側 |
55709-63020 |
US $104.83 |
||
| replacement | |||||
|
55781E
|
55781E
55709-63021 Louver Sub-Assy, Cowl Top Ventilator[04.2000 - 05.2002] ACT10,ZCT1# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ,左側 |
55709-63021 |
US $103.38 |
||
|
55781E
|
55781E
55709-63021 Louver Sub-Assy, Cowl Top Ventilator[08.2003 -] ACT10,ZCT1# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ,左側 |
55709-63021 |
US $103.38 |
||
|
55783B
|
55783B
55783-63010 Louver, Cowl Top Ventilator, Center No.1[04.2000 - 05.2002] ACT10,ZCT1# |
55783-63010 |
US $10.19 |
||
|
55783B
|
55783B
55783-63020 Louver, Cowl Top Ventilator, Center No.1[04.2000 - 05.2002] ACT10,ZCT1# ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
55783-63020 |
US $11.36 |
||
|
55815E
|
55815E
55815-63010 Seal, Front Ventilator, No.1[12.2001 - 05.2002] ACT10,ZCT1# |
55815-63010 |
US $2.04 |
||
|
56111
|
56111
56111-63010
Glass, Windshield
[04.2000 - 05.2002] ACT10,ZCT1# ＊ＴＬ，Ｔ＝４．７，グリーン |
56111-63010 |
— | ||
|
56111
|
56111
56111-63020
Glass, Windshield
[04.2000 - 05.2002] ACT10,ZCT1# ＊ＥＨＴＬ，Ｔ＝４．７，グリーン,ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
56111-63020 |
— | ||
|
56111
|
56111
56111-63030
Glass, Windshield
[05.2002 -] ACT10,ZCT1# ＊ＥＨＴＬ，Ｔ＝４．７，グリーン,ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
56111-63030 |
— | ||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[04.2000 - 05.2002] ACT10,ZCT1# |
56115-30100 |
from US $1.70 |
||
|
56116
|
56116
56116-22050 Stopper, Windshield Glass, No.1[04.2000 - 05.2002] ACT10,ZCT1# |
56116-22050 |
from US $1.38 |
||
|
56117A
|
56117A
56117-63010 Dam, Window Glass Adhesive[04.2000 - 05.2002] ACT10,ZCT1# ＊Ｄ，Ｌ＝３５６２ |
56117-63010 |
US $19.95 |
||
| replacement | |||||
|
56117A
|
56117A
56117-47010 Dam Kit, Back Window Glass Adhesive[04.2000 - 05.2002] ACT10,ZCT1# ＊Ｄ，Ｌ＝３５６２ |
56117-47010 |
from US $24.78 |
||
|
56118A
|
56118A
56118-63010 Dam, Window Glass Adhesive, No.2[04.2000 - 05.2002] ACT10,ZCT1# ＊Ｄ，Ｌ＝６７２ |
56118-63010 |
US $8.15 |
||
| replacement | |||||
|
56118A
|
56118A
64813-52010
Dam Kit, Window Glass
[04.2000 - 05.2002] ACT10,ZCT1# ＊Ｄ，Ｌ＝６７２ |
64813-52010 |
— | ||
|
9011908B27
|
9011908B27
90119-08B27 New Genuine Part |
90119-08B27 |
US $1.28 |
||
|
6786712150
|
6786712150
67867-12150 Clip(For Hood Air Intake Duct Seal) |
67867-12150 |
from US $1.60 |
||
|
9011906480
|
9011906480
90119-06480 BOLT |
90119-06480 |
from US $0.86 |
||
|
9011906801
|
9011906801
90119-06801 New Genuine Part |
90119-06801 |
US $0.73 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.13 |
||
|
9046707181
|
9046707181
90467-07181 CLIP |
90467-07181 |
from US $1.35 |
||
|
9046707204
|
9046707204
90467-07204 CLIP |
90467-07204 |
US $2.08 |
||
