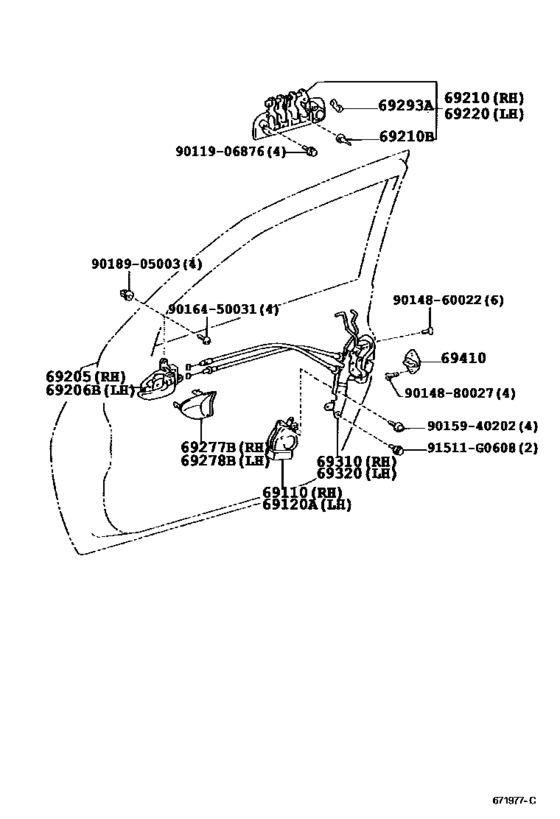

Front Door Lock & Handle ([04.2000 - ] (0004- )) Diagram Toyota OPA
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- ACT10
- grade
- I
- ENGINE
- 1AZFSE
- Model
- OPA
- From
- 08.2000
- To
- 04.2005
- Gear Shift Type
- CVHC
- Vehicle Model
- OPA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69110
|
69110
69110-63010 Actuator Assy, Front Door Lock, Rh[04.2000 - 05.2002] ACT10,ZCT1# |
69110-63010 |
US $120.85 |
||
|
69120A
|
69120A
69120-63010 Actuator Assy, Front Door Lock, Lh[04.2000 - 05.2002] ACT10,ZCT1# |
69120-63010 |
US $120.85 |
||
|
69205
|
69205
69205-20180-B0 Handle Sub-Assy, Front Door Inside, Rh[04.2000 - 05.2002] ACT10,ZCT1# DK.GRAY,TRIM1# |
69205-20180-B0 |
US $34.07 |
||
|
69205
|
69205
69205-20180-C0 Handle Sub-Assy, Front Door Inside, Rh[05.2002 -] ACT10,ZCT1# BLACK,TRIM1# |
69205-20180-C0 |
US $27.61 |
||
|
69206B
|
69206B
69206-20180-B0 Handle Sub-Assy, Front Door Inside, Lh[04.2000 - 05.2002] ACT10,ZCT1# DK.GRAY,TRIM1# |
69206-20180-B0 |
US $34.07 |
||
|
69206B
|
69206B
69206-20180-C0 Handle Sub-Assy, Front Door Inside, Lh[05.2002 -] ACT10,ZCT1# BLACK,TRIM1# |
69206-20180-C0 |
US $25.77 |
||
|
69210
|
69210
69210-63010-A0 Handle Assy, Front Door, Outside Rh[04.2000 - 08.2001] ACT10,ZCT1# SUPER WHITE 2,040 |
69210-63010-A0 |
US $90.27 |
||
|
69210
|
69210
69210-63010-A1 Handle Assy, Front Door, Outside Rh[08.2001 - 05.2002] ACT10,ZCT1# SU. WHITE PM.,051 |
69210-63010-A1 |
US $90.27 |
||
|
69210
|
69210
69210-63010-B0 Handle Assy, Front Door, Outside Rh[04.2000 - 05.2002] ACT10,ZCT1# SILVER ME.,1C0 |
69210-63010-B0 |
US $90.27 |
||
|
69210
|
69210
69210-63010-C0
Handle Assy, Front Door, Outside Rh
[04.2000 - 05.2002] ACT10,ZCT1# BLACK MC.,209 |
69210-63010-C0 |
— | ||
|
69210
|
69210
69210-63010-D0 Handle Assy, Front Door, Outside Rh[04.2000 - 05.2002] ACT10,ZCT1# RED MC.,3M8 |
69210-63010-D0 |
US $90.27 |
||
|
69210
|
69210
69210-63010-D1 Handle Assy, Front Door, Outside Rh[01.2001 - 08.2001] ACT10,ZCT1# PALE ROSE ME.OP.,3N7 |
69210-63010-D1 |
US $90.27 |
||
|
69210
|
69210
69210-63010-D2 Handle Assy, Front Door, Outside Rh[05.2002 -] ACT10,ZCT1# RED M.M.,3N8 |
69210-63010-D2 |
US $90.27 |
||
|
69210
|
69210
69210-63010-E0 Handle Assy, Front Door, Outside Rh[05.2002 -] ACT10,ZCT1# BEIGE ME.,4P7 |
69210-63010-E0 |
US $90.27 |
||
|
69210
|
69210
69210-63010-F0 Handle Assy, Front Door, Outside Rh[04.2000 - 05.2002] ACT10,ZCT1# CHAMPAGNE ME.,586 |
69210-63010-F0 |
US $90.27 |
||
|
69210
|
69210
69210-63010-G0 Handle Assy, Front Door, Outside Rh[05.2002 -] ACT10,ZCT1# JADE GREEN M.M.,6S9 |
69210-63010-G0 |
US $90.27 |
||
|
69210
|
69210
69210-63010-J0 Handle Assy, Front Door, Outside Rh[04.2000 - 01.2001] ACT10,ZCT1# DK.BLUE M.M.,8P4 |
69210-63010-J0 |
US $90.27 |
||
|
69210
|
69210
69210-63010-J1 Handle Assy, Front Door, Outside Rh[01.2001 - 05.2002] ACT10,ZCT1# BLUE M.M.,8P5 |
69210-63010-J1 |
US $90.27 |
||
|
69210B
|
69210B
90541-04018 Cushion(For Front Door Inside Handle)[04.2000 - 05.2002] ACT10,ZCT1# |
90541-04018 |
US $2.56 |
||
|
69220
|
69220
69220-63010-A0 Handle Assy, Front Door Outside, Lh[04.2000 - 08.2001] ACT10,ZCT1# SUPER WHITE 2,040 |
69220-63010-A0 |
US $90.27 |
||
|
69220
|
69220
69220-63010-A1 Handle Assy, Front Door Outside, Lh[08.2001 - 05.2002] ACT10,ZCT1# SU. WHITE PM.,051 |
69220-63010-A1 |
US $90.27 |
||
|
69220
|
69220
69220-63010-B0 Handle Assy, Front Door Outside, Lh[04.2000 - 05.2002] ACT10,ZCT1# SILVER ME.,1C0 |
69220-63010-B0 |
US $90.27 |
||
|
69220
|
69220
69220-63010-C0 Handle Assy, Front Door Outside, Lh[04.2000 - 05.2002] ACT10,ZCT1# BLACK MC.,209 |
69220-63010-C0 |
US $90.27 |
||
|
69220
|
69220
69220-63010-D0 Handle Assy, Front Door Outside, Lh[04.2000 - 05.2002] ACT10,ZCT1# RED MC.,3M8 |
69220-63010-D0 |
US $90.27 |
||
|
69220
|
69220
69220-63010-D1 Handle Assy, Front Door Outside, Lh[01.2001 - 08.2001] ACT10,ZCT1# PALE ROSE ME.OP.,3N7 |
69220-63010-D1 |
US $90.27 |
||
|
69220
|
69220
69220-63010-D2 Handle Assy, Front Door Outside, Lh[05.2002 -] ACT10,ZCT1# RED M.M.,3N8 |
69220-63010-D2 |
US $90.27 |
||
|
69220
|
69220
69220-63010-E0 Handle Assy, Front Door Outside, Lh[05.2002 -] ACT10,ZCT1# BEIGE ME.,4P7 |
69220-63010-E0 |
US $90.27 |
||
|
69220
|
69220
69220-63010-F0 Handle Assy, Front Door Outside, Lh[04.2000 - 05.2002] ACT10,ZCT1# CHAMPAGNE ME.,586 |
69220-63010-F0 |
US $90.27 |
||
|
69220
|
69220
69220-63010-G0 Handle Assy, Front Door Outside, Lh[05.2002 -] ACT10,ZCT1# JADE GREEN M.M.,6S9 |
69220-63010-G0 |
US $90.27 |
||
|
69220
|
69220
69220-63010-J0 Handle Assy, Front Door Outside, Lh[04.2000 - 01.2001] ACT10,ZCT1# DK.BLUE M.M.,8P4 |
69220-63010-J0 |
US $90.27 |
||
|
69220
|
69220
69220-63010-J1 Handle Assy, Front Door Outside, Lh[01.2001 - 05.2002] ACT10,ZCT1# BLUE M.M.,8P5 |
69220-63010-J1 |
US $90.27 |
||
|
69277B
|
69277B
69297-30030-B2 Bezel, Front Door Inside Handle, Rh[04.2000 - 05.2002] ACT10,ZCT1# DK.GRAY,TRIM1# |
69297-30030-B2 |
US $3.79 |
||
|
69277B
|
69277B
69297-30030-C0 Bezel, Front Door Inside Handle, Rh[05.2002 -] ACT10,ZCT1# BLACK,TRIM1# |
69297-30030-C0 |
US $2.77 |
||
|
69278B
|
69278B
69298-30030-B2 Bezel, Front Door Inside Handle, Lh[04.2000 - 05.2002] ACT10,ZCT1# DK.GRAY,TRIM1# |
69298-30030-B2 |
US $3.79 |
||
|
69278B
|
69278B
69298-30030-C0 Bezel, Front Door Inside Handle, Lh[05.2002 -] ACT10,ZCT1# BLACK,TRIM1# |
69298-30030-C0 |
US $2.77 |
||
|
69293A
|
69293A
69293-12030 Snap, Front Door Outside Handle[04.2000 - 05.2002] ACT10,ZCT1# ホワイト |
69293-12030 |
from US $2.09 |
||
|
69293A
|
69293A
69293-12040 Snap, Front Door Outside Handle[04.2000 - 05.2002] ACT10,ZCT1# イエロー |
69293-12040 |
from US $2 |
||
|
69310
|
69310
69310-63010 Lock Assy, Front Door, Rh[04.2000 - 05.2002] ACT10,ZCT1# |
69310-63010 |
US $131.04 |
||
|
69320
|
69320
69320-63010 Lock Assy, Front Door, Lh[04.2000 - 05.2002] ACT10,ZCT1# |
69320-63010 |
US $131.04 |
||
|
69410
|
69410
69410-20110 Plate Assy, Front Door Lock Striker[04.2000 - 05.2002] ACT10,ZCT1# |
69410-20110 |
US $15.96 |
||
|
91511G0608
|
91511G0608
91511-G0608 New Genuine Part |
91511-G0608 |
US $0.73 |
||
|
9011906876
|
9011906876
90119-06876
New Genuine Part
|
90119-06876 |
— | ||
|
9014860022
|
9014860022
90148-60022 BOLT |
90148-60022 |
from US $0.53 |
||
| replacement | |||||
|
9014860022
|
9014860022
90148-A0005 Hexalobular Screw |
90148-A0005 |
US $2.73 |
||
|
9014880027
|
9014880027
90148-80027 Screw Hex Lobular |
90148-80027 |
US $7.20 |
||
|
9015940202
|
9015940202
90159-40202 SCREW WWASHER |
90159-40202 |
US $0.96 |
||
|
9016450031
|
9016450031
90164-50031 SCREW BINDING |
90164-50031 |
from US $0.68 |
||
|
9018905003
|
9018905003
90189-05003 CLIP |
90189-05003 |
from US $1.19 |
||
