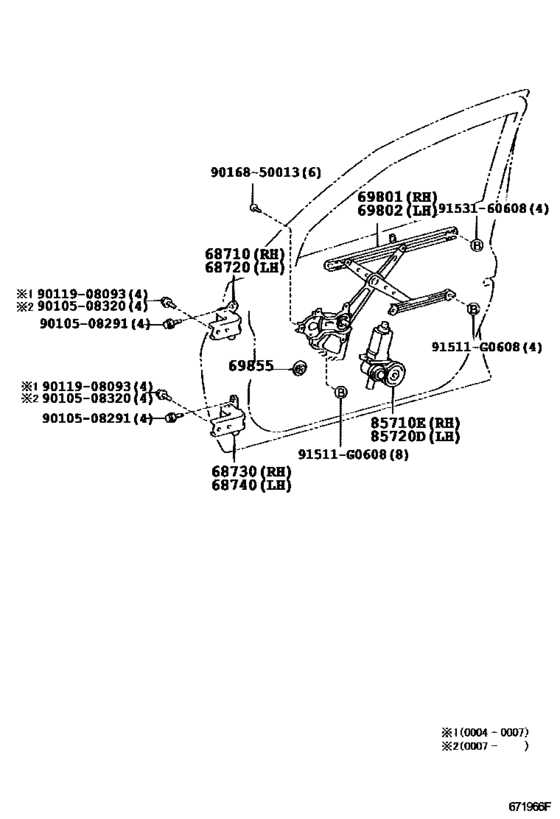

Front Door Window Regulator & Hinge ([04.2000 - ] (0004- )) Diagram Toyota OPA
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- ACT10
- grade
- I
- ENGINE
- 1AZFSE
- Model
- OPA
- From
- 08.2000
- To
- 04.2005
- Gear Shift Type
- CVHC
- Vehicle Model
- OPA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-52010 Hinge Assy, Front Door, Upper Rh[04.2000 - 05.2002] ACT10,ZCT1# |
68710-52010 |
US $54.72 |
||
|
68720
|
68720
68720-52010 Hinge Assy, Front Door, Upper Lh[04.2000 - 05.2002] ACT10,ZCT1# |
68720-52010 |
US $34.22 |
||
|
68730
|
68730
68720-52010 Hinge Assy, Front Door, Upper Lh[04.2000 - 05.2002] ACT10,ZCT1# |
68720-52010 |
US $34.22 |
||
|
68740
|
68740
68710-52010 Hinge Assy, Front Door, Upper Rh[04.2000 - 05.2002] ACT10,ZCT1# |
68710-52010 |
US $54.72 |
||
|
69801
|
69801
69801-63010 Regulator Sub-Assy, Front Door Window, Rh[04.2000 - 05.2002] ACT10,ZCT1# |
69801-63010 |
US $91.73 |
||
|
69802
|
69802
69802-63010 Regulator Sub-Assy, Front Door Window, Lh[04.2000 - 05.2002] ACT10,ZCT1# |
69802-63010 |
US $91.73 |
||
|
69855
|
69855
69855-20010 Cover, Door Window Regulator Gear[04.2000 - 05.2002] ACT10,ZCT1# |
69855-20010 |
US $3.84 |
||
|
85710E
|
85710E
85710-52110 Motor Assy, Power Window Regulator, Rh[05.2002 -] ACT10,ZCT1# |
85710-52110 |
US $467.60 |
||
|
85710E
|
85710E
85710-63010
Motor Assy, Power Window Regulator, Rh
[04.2000 - 05.2002] ACT10,ZCT1# |
85710-63010 |
— | ||
| replacement | |||||
|
85710E
|
85710E
85710-33120 Motor Assy, Power Window Regulator, Rh[04.2000 - 05.2002] ACT10,ZCT1# |
85710-33120 |
US $466.20 |
||
|
85720D
|
85720D
85720-32150 Motor Assy, Power Window Regulator, RH[04.2000 - 05.2002] ACT10,ZCT1# |
85720-32150 |
US $357 |
||
|
85720D
|
85720D
85720-52110 Motor Assy, Power Window Regulator, Rh[05.2002 -] ACT10,ZCT1# |
85720-52110 |
US $425.18 |
||
|
91511G0608
|
91511G0608
91511-G0608 New Genuine Part |
91511-G0608 |
US $0.73 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
from US $0.92 |
||
|
9010508320
|
9010508320
90105-08320 BOLT WASHER BASED |
90105-08320 |
US $1.44 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.44 |
||
|
9016850013
|
9016850013
90168-50013 SCREW |
90168-50013 |
US $2.72 |
||
|
9153160608
|
9153160608
91531-60608 BOLT FLANGE |
91531-60608 |
from US $0.96 |
||
