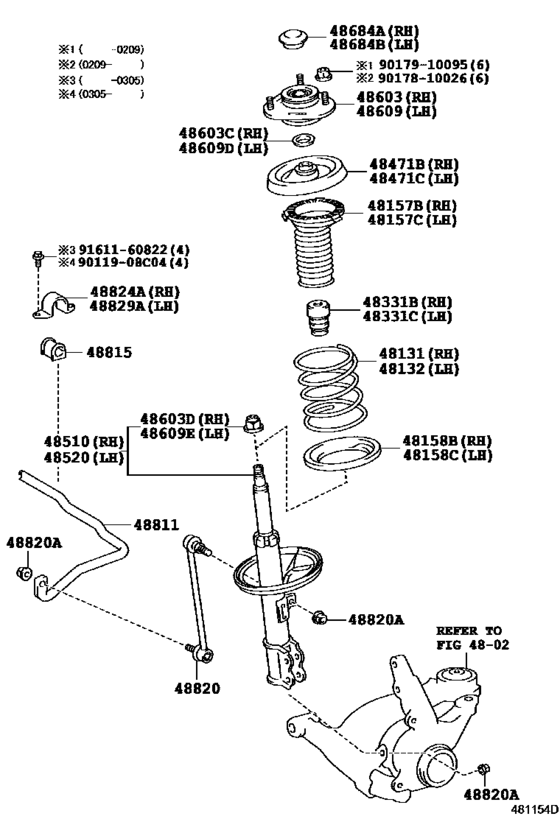

Front Spring & Shock Absorber ([04.2000 - ] (0004- )) Diagram Toyota OPA
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- ACT10
- grade
- I
- ENGINE
- 1AZFSE
- Model
- OPA
- From
- 08.2000
- To
- 04.2005
- Gear Shift Type
- CVHC
- Vehicle Model
- OPA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-63020 Spring, Front Coil, Rh[08.2000 - 05.2002] ACT10 |
48131-63020 |
US $125.22 |
||
|
48132
|
48132
48131-63020 Spring, Front Coil, Rh[08.2000 - 05.2002] ACT10 |
48131-63020 |
US $125.22 |
||
|
48157B
|
48157B
48157-47010 Insulator, Front Coil Spring, Upper Rh[04.2000 - 05.2002] ACT10,ZCT1# |
48157-47010 |
US $35.57 |
||
|
48157C
|
48157C
48157-47010 Insulator, Front Coil Spring, Upper Rh[04.2000 - 03.2001] ACT10,ZCT1# |
48157-47010 |
US $35.57 |
||
|
48158B
|
48158B
48158-47010 Insulator, Front Coil Spring, Lower Rh[04.2000 - 05.2002] ACT10,ZCT1# |
48158-47010 |
from US $10.55 |
||
|
48158C
|
48158C
48158-47010 Insulator, Front Coil Spring, Lower Rh[04.2000 - 03.2001] ACT10,ZCT1# |
48158-47010 |
from US $10.55 |
||
|
48331B
|
48331B
48331-63020 Bumper, Front Spring, Rh[04.2000 - 05.2002] ACT10,ZCT15 |
48331-63020 |
US $12.96 |
||
|
48331C
|
48331C
48331-63020 Bumper, Front Spring, Rh[04.2000 - 05.2002] ACT10,ZCT15 |
48331-63020 |
US $12.96 |
||
|
48471B
|
48471B
48044-47010 Seat, Front Coil Spring, Upper Rh[04.2000 - 05.2002] ACT10,ZCT1# |
48044-47010 |
US $19.61 |
||
|
48471C
|
48471C
48044-47010 Seat, Front Coil Spring, Upper Rh[04.2000 - 03.2001] ACT10,ZCT1# |
48044-47010 |
US $19.61 |
||
|
48510
|
48510
48510-69145 Absorber Assy, Shock, Front Rh[08.2000 - 05.2002] ACT10 |
48510-69145 |
US $330.51 |
||
| replacement | |||||
|
48510
|
48510
48510-80228
Absorber Assy, Shock, Front Rh
[08.2000 - 05.2002] ACT10 |
48510-80228 |
— | ||
|
48510
|
48510
48510-80228
Absorber Assy, Shock, Front Rh
[05.2004 -] ACT10 マーク ４８５１０−６３０２１ |
48510-80228 |
— | ||
|
48520
|
48520
48520-69025
Absorber Assy, Shock, Front Lh
[08.2000 - 05.2002] ACT10 |
48520-69025 |
— | ||
| replacement | |||||
|
48520
|
48520
48520-69115 Absorber Assy, Shock, Front Lh[08.2000 - 05.2002] ACT10 |
48520-69115 |
US $330.51 |
||
|
48520
|
48520
48520-69115 Absorber Assy, Shock, Front Lh[05.2004 -] ACT10 マーク ４８５２０−６３０２１ |
48520-69115 |
US $330.51 |
||
|
48603
|
48603
48609-63010 Support Sub-Assy, Front Suspension, Rh[04.2000 - 05.2002] ACT10,ZCT1# |
48609-63010 |
US $66.10 |
||
|
48603C
|
48603C
90303-22002 Seal, Dust(For Front Suspension Support)[04.2002 - 05.2002] ACT10,ZCT1# |
90303-22002 |
from US $3.20 |
||
|
48603C
|
48603C
90303-22049 Seal, Dust(For Front Suspension Support)[04.2000 - 04.2002] ACT10,ZCT1# |
90303-22049 |
from US $3.71 |
||
|
48603D
|
48603D
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[04.2000 - 05.2002] ACT10,ZCT1# |
90179-14015 |
from US $1.09 |
||
|
48609
|
48609
48609-63010 Support Sub-Assy, Front Suspension, Rh[04.2000 - 05.2002] ACT10,ZCT1# |
48609-63010 |
US $66.10 |
||
|
48609D
|
48609D
90303-22002 Seal, Dust(For Front Suspension Support)[04.2002 - 05.2002] ACT10,ZCT1# |
90303-22002 |
from US $3.20 |
||
|
48609D
|
48609D
90303-22049 Seal, Dust(For Front Suspension Support)[04.2000 - 03.2001] ACT10,ZCT1# |
90303-22049 |
from US $3.71 |
||
|
48609E
|
48609E
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting)[04.2000 - 03.2001] ACT10,ZCT1# |
90179-14015 |
from US $1.09 |
||
|
48684A
|
48684A
48684-12070 Cover, Front Suspension Support Dust[04.2000 - 05.2002] ACT10,ZCT1# |
48684-12070 |
US $14.40 |
||
|
48684A
|
48684A
48684-52010 Cover, Front Suspension Support Dust[12.2002 -] ACT10,ZCT1# |
48684-52010 |
from US $9.60 |
||
|
48684B
|
48684B
48684-12070 Cover, Front Suspension Support Dust[04.2000 - 03.2001] ACT10,ZCT1# |
48684-12070 |
US $14.40 |
||
|
48684B
|
48684B
48684-52010 Cover, Front Suspension Support Dust[12.2002 -] ACT10,ZCT1# |
48684-52010 |
from US $9.60 |
||
|
48811
|
48811
48811-32290 Bar, Stabilizer, Front[04.2000 - 05.2002] ACT10,ZCT10 |
48811-32290 |
US $168.90 |
||
|
48815
|
48815
48815-20280 Bush, Front Stabilizer Bar, No.1[04.2000 - 05.2002] ACT10,ZCT1# |
48815-20280 |
from US $11.91 |
||
|
48820
|
48820
48820-32010 Link Assy, Front Stabilizer[04.2000 - 05.2002] ACT10,ZCT1# |
48820-32010 |
US $105.08 |
||
|
48820A
|
48820A
90179-10183 Nut(For Front Stabilizer Link)[04.2000 - 05.2002] ACT10,ZCT1# |
90179-10183 |
from US $0.88 |
||
|
48824A
|
48824A
48824-26210 Bracket, Front Stabilizer, No.1[04.2000 - 05.2002] ACT10,ZCT1# |
48824-26210 |
from US $11.76 |
||
|
48829A
|
48829A
48824-26210 Bracket, Front Stabilizer, No.1[04.2000 - 05.2002] ACT10,ZCT1# |
48824-26210 |
from US $11.76 |
||
|
9011908C04
|
9011908C04
90119-08C04 BOLT WWASHER |
90119-08C04 |
US $1.28 |
||
|
9017810026
|
9017810026
90178-10026 Nut(For Backing Plate To Rear Axle Housing Setting) |
90178-10026 |
US $2.24 |
||
|
9017910095
|
9017910095
90179-10095 Nut(For Backing Plate To Rear Axle Housing Setting) |
90179-10095 |
US $1.76 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $2.48 |
||
