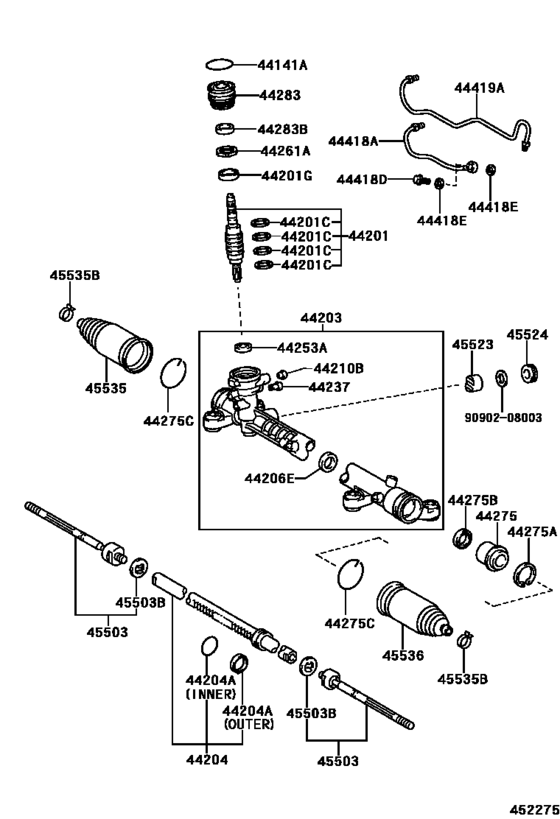

Front Steering Gear & Link ([04.2000 - 05.2002] (0004-0205)ACT10,ZCT10) Diagram Toyota OPA
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- ACT10
- grade
- I
- ENGINE
- 1AZFSE
- Model
- OPA
- From
- 08.2000
- To
- 04.2005
- Gear Shift Type
- CVHC
- Vehicle Model
- OPA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44141A
|
44141A
90301-49008 Ring, O(For Adjuster Plug)[04.2000 - 05.2002] ACT10,ZCT1# |
90301-49008 |
US $3.20 |
||
|
44201
|
44201
44201-32190 Valve Sub-Assy, Power Steering Control[04.2000 - 05.2002] ACT10,ZCT1# |
44201-32190 |
US $294.11 |
||
|
44201C
|
44201C
90562-33008 Ring(For Power Steering Control Valve)[04.2000 - 05.2002] ACT10,ZCT1# |
90562-33008 |
from US $1.92 |
||
|
44201G
|
44201G
90363-30078 Bearing(For Power Steering Control Valve)[04.2000 - 05.2002] ACT10,ZCT1# |
90363-30078 |
US $9.17 |
||
|
44203
|
44203
44203-32140 Housing Sub-Assy, Power Steering Rack[04.2000 - 05.2002] ACT10,ZCT10 |
44203-32140 |
US $524.16 |
||
|
44204
|
44204
44204-32080 Rack Sub-Assy, Power Steering[04.2000 - 05.2002] ACT10,ZCT1# |
44204-32080 |
US $205.30 |
||
|
44204A
|
44204A
90301-33014
Ring(For Rack Steering Piston)
[04.2000 - 05.2002] ACT10,ZCT1# 内側 |
90301-33014 |
— | ||
|
44204A
|
44204A
90562-37006
Ring(For Rack Steering Piston)
[04.2000 - 05.2002] ACT10,ZCT1# 外側 |
90562-37006 |
— | ||
|
44206E
|
44206E
90310-25030 Seal, Oil, No.1(For Power Steering Cylinder Tube)[04.2000 - 05.2002] ACT10,ZCT1# |
90310-25030 |
US $1.75 |
||
|
44210B
|
44210B
90410-06002 Seat, Union(For Power Steering Control Valve)[04.2000 - 05.2002] ACT10,ZCT1# |
90410-06002 |
US $3.52 |
||
|
44237
|
44237
44237-12010 Seat, Pressure Control Valve Orifice[11.2001 - 05.2002] ACT10,ZCT1# |
44237-12010 |
US $7.43 |
||
|
44237
|
44237
44237-32020 Seat, Pressure Control Valve Orifice[04.2000 - 11.2001] ACT10,ZCT1# |
44237-32020 |
US $7.43 |
||
| replacement | |||||
|
44237
|
44237
44237-12010 Seat, Pressure Control Valve Orifice[04.2000 - 11.2001] ACT10,ZCT1# |
44237-12010 |
US $7.43 |
||
|
44253A
|
44253A
90310-25032 Seal, Oil(For Power Steering Rack Housing)[04.2000 - 05.2002] ACT10,ZCT1# |
90310-25032 |
US $2.88 |
||
|
44261A
|
44261A
90179-30007 Nut(For Bearing Guide Nut)[04.2000 - 05.2002] ACT10,ZCT1# |
90179-30007 |
US $2.18 |
||
|
44275
|
44275
44275-32030
Stopper, Cylinder End
[04.2000 - 05.2002] ACT10,ZCT10 |
44275-32030 |
— | ||
|
44275A
|
44275A
90521-50002 Ring, Hole Snap(For Cylinder End Stopper)[04.2000 - 05.2002] ACT10,ZCT1# |
90521-50002 |
US $1.22 |
||
|
44275B
|
44275B
90310-25028 Seal, Oil(For Cylinder End Stopper)[04.2000 - 05.2002] ACT10,ZCT1# |
90310-25028 |
US $3.04 |
||
|
44275C
|
44275C
90580-14073 Wire(For Cylinder End Stopper)[04.2000 - 05.2002] ACT10,ZCT1# |
90580-14073 |
US $1.76 |
||
|
44283
|
44283
44283-32020 Cap, Rack Housing[04.2000 - 05.2002] ACT10,ZCT1# |
44283-32020 |
US $25.04 |
||
|
44283B
|
44283B
90311-20008 Seal, Oil(For Rack Housing Cap)[04.2000 - 05.2002] ACT10,ZCT1# |
90311-20008 |
US $3.04 |
||
|
44418A
|
44418A
44418-32120 Tube, Steering Right Turn Pressure[04.2000 - 05.2002] ACT10,ZCT10 |
44418-32120 |
US $19.66 |
||
|
44418D
|
44418D
90401-12017 Bolt, Union(For Steering Turn Pressure Tube)[04.2000 - 05.2002] ACT10,ZCT10 |
90401-12017 |
US $3.49 |
||
|
44418E
|
44418E
90430-12013 Gasket(For Fuel Pipe)[04.2000 - 05.2002] ACT10,ZCT10 |
90430-12013 |
US $3.20 |
||
|
44419A
|
44419A
44419-32130 Tube, Steering Left Turn Pressure[04.2000 - 05.2002] ACT10,ZCT10 |
44419-32130 |
US $23.15 |
||
|
45503
|
45503
45503-39165 End Sub-Assy, Steering Rack[04.2000 - 05.2002] ACT10,ZCT10 |
45503-39165 |
US $32.03 |
||
|
45503B
|
45503B
90214-14002 Washer, Claw(For Power Steering Rack End)[04.2000 - 05.2002] ACT10,ZCT1# 外径＝３７ |
90214-14002 |
from US $1.33 |
||
|
45523
|
45523
45053-32010 Guide, Rack(For Steering Gear)[04.2000 - 05.2002] ACT10,ZCT1# |
45053-32010 |
US $25.04 |
||
|
45524
|
45524
45524-32010
Cap, Steering Rack Guide Spring
[04.2000 - 05.2002] ACT10,ZCT1# |
45524-32010 |
— | ||
|
45535
|
45535
45535-32070 Boot, Steering Rack, No.1[04.2000 - 05.2002] ACT10,ZCT1# |
45535-32070 |
from US $18.53 |
||
|
45535B
|
45535B
90467-19019 Clip[04.2000 - 05.2002] ACT10,ZCT1# |
90467-19019 |
from US $4.41 |
||
|
45536
|
45536
45535-32070 Boot, Steering Rack, No.1[04.2000 - 05.2002] ACT10,ZCT1# |
45535-32070 |
from US $18.53 |
||
|
9090208003
|
9090208003
90902-08003 New Genuine Part |
90902-08003 |
US $0.87 |
||
