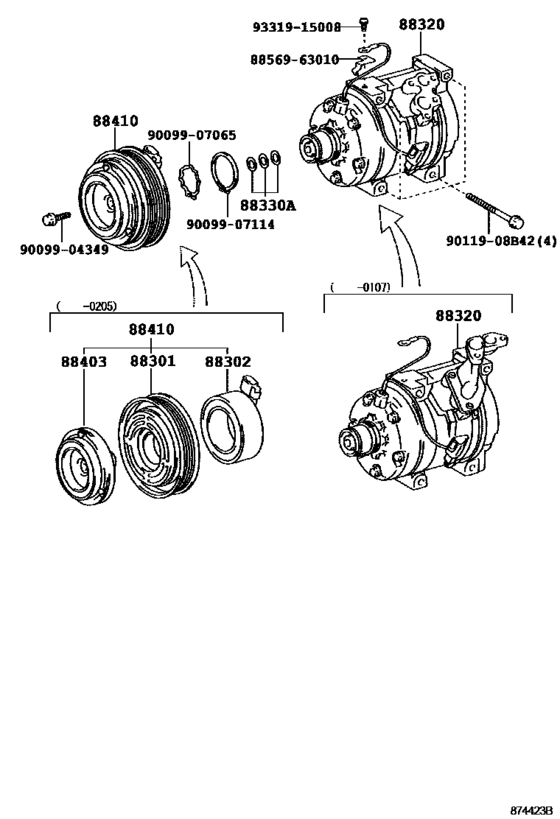

Heating & Air Conditioning - Compressor ([08.2000 - ] (0008- )ACT10) Diagram Toyota OPA
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- ACT10
- grade
- I
- ENGINE
- 1AZFSE
- Model
- OPA
- From
- 08.2000
- To
- 04.2005
- Gear Shift Type
- CVHC
- Vehicle Model
- OPA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-42010
Rotor Sub-Assy, Magnet Clutch
[08.2000 - 05.2002] ACT10 |
88412-42010 |
— | ||
|
88302
|
88302
88411-44010 Stator Sub-Assy, Magnet Clutch[04.2000 - 05.2002] ACT10,ZCT1# |
88411-44010 |
US $61.68 |
||
|
88320
|
88320
88320-32250
Compressor Assy, Cooler
[07.2001 - 05.2002] ACT10 |
88320-32250 |
— | ||
|
88320
|
88320
88320-63020
Compressor Assy, Cooler
[08.2000 - 07.2001] ACT10 |
88320-63020 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[04.2000 - 05.2002] ACT10,ZCT1# |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-32010
Hub Sub-Assy, Magnet Clutch
[04.2000 - 05.2002] ACT10,ZCT1# |
88403-32010 |
— | ||
|
88410
|
88410
88410-42040 Clutch Assy, Magnet[08.2000 - 05.2002] ACT10 |
88410-42040 |
US $586.91 |
||
|
9011908B42
|
9011908B42
90119-08B42 BOLT WWASHER |
90119-08B42 |
from US $1.21 |
||
|
8856963010
|
8856963010
88569-63010
Clamp (for Cooler Relay)
|
88569-63010 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907065
|
9009907065
90099-07065 SNAP RING |
90099-07065 |
from US $1.19 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.21 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
