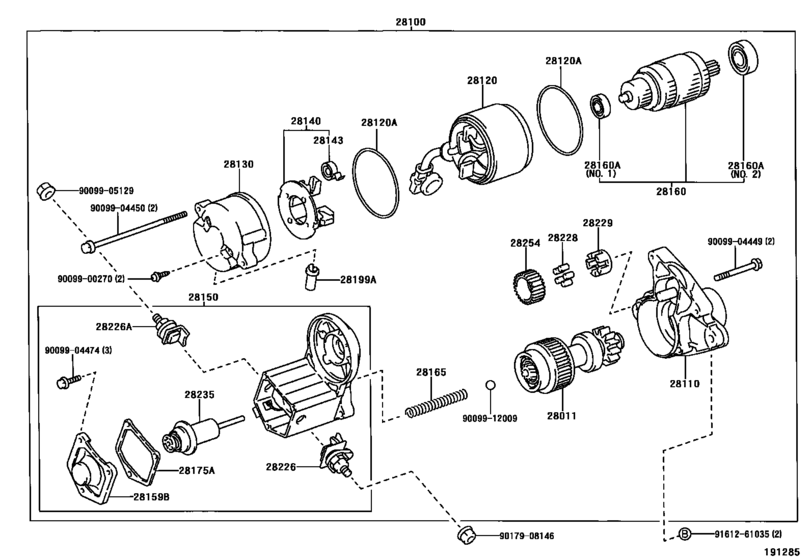

Starter ([08.2000 - 05.2002] 12V 1.2KW (0008-0205)1AZFSE) Diagram Toyota OPA
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- ACT10
- grade
- I
- ENGINE
- 1AZFSE
- Model
- OPA
- From
- 08.2000
- To
- 04.2005
- Gear Shift Type
- CVHC
- Vehicle Model
- OPA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-74070 Clutch Sub-Assy, Starter[08.2000 - 05.2002] 1AZFSE..ACT10 |
28011-74070 |
US $189.28 |
||
|
28100
|
28100
28100-28010 Starter Assy[08.2000 - 05.2002] 1AZFSE..ACT10 １２Ｖ １．２ＫＷ |
28100-28010 |
US $1,349.71 |
||
|
28110
|
28110
28110-74270 Housing Assy, Starter Drive[08.2000 - 05.2002] 1AZFSE..ACT10 |
28110-74270 |
US $58.24 |
||
|
28120
|
28120
28120-16180
Yoke Assy, Starter
[08.2000 - 05.2002] 1AZFSE..ACT10 |
28120-16180 |
— | ||
|
28120A
|
28120A
90099-14064 Rubber(For Starter Yoke)[08.2000 - 05.2002] 1AZFSE..ACT10 |
90099-14064 |
from US $3.67 |
||
|
28130
|
28130
28130-74270
Frame Assy, Starter Commutator End
[08.2000 - 05.2002] 1AZFSE..ACT10 |
28130-74270 |
— | ||
|
28140
|
28140
28140-74120 Holder Assy, Starter Brush[08.2000 - 05.2002] 1AZFSE..ACT10 |
28140-74120 |
US $18.04 |
||
|
28143
|
28143
28143-76060
Spring, Starter Brush
[08.2000 - 05.2002] 1AZFSE..ACT10 |
28143-76060 |
— | ||
|
28150
|
28150
28150-28010 Switch Assy, Magnet Starter[08.2000 - 05.2002] 1AZFSE..ACT10 |
28150-28010 |
US $215.49 |
||
|
28159B
|
28159B
28159-55050
Cover, Starter Protector
[08.2000 - 05.2002] 1AZFSE..ACT10 |
28159-55050 |
— | ||
|
28160
|
28160
28160-76060 Armature Assy, Starter[08.2000 - 05.2002] 1AZFSE..ACT10 |
28160-76060 |
US $318.86 |
||
|
28160A
|
28160A
90099-10196 Bearing, Starter Armature[08.2000 - 05.2002] 1AZFSE..ACT10 ＮＯ．１ |
90099-10196 |
from US $6.12 |
||
|
28160A
|
28160A
90099-10197 Bearing, Starter Armature[08.2000 - 05.2002] 1AZFSE..ACT10 ＮＯ．２ |
90099-10197 |
US $7.34 |
||
|
28165
|
28165
28165-74070
Spring, Starter Magnet Switch Return
[08.2000 - 05.2002] 1AZFSE..ACT10 |
28165-74070 |
— | ||
|
28175A
|
28175A
28175-55050 Gasket, Magnet Switch Cover[08.2000 - 05.2002] 1AZFSE..ACT10 |
28175-55050 |
from US $1.92 |
||
|
28199A
|
28199A
28199-74110 Cover, Starter End Frame[08.2000 - 05.2002] 1AZFSE..ACT10 |
28199-74110 |
US $2.97 |
||
|
28226
|
28226
28226-64370 Starter Kit, Battery Terminal[08.2000 - 05.2002] 1AZFSE..ACT10 |
28226-64370 |
from US $7.12 |
||
|
28226A
|
28226A
28226-74070 Starter Kit, Battery Terminal[08.2000 - 05.2002] 1AZFSE..ACT10 |
28226-74070 |
US $9.61 |
||
|
28228
|
28228
28228-26040
Roller, Starter Idle Gear Clutch
[08.2000 - 05.2002] 1AZFSE..ACT10 |
28228-26040 |
— | ||
|
28229
|
28229
28229-74070 Retainer, Starter Idle Gear[08.2000 - 05.2002] 1AZFSE..ACT10 |
28229-74070 |
US $1.50 |
||
|
28235
|
28235
28235-74130
Plunger, Magnet Switch
[08.2000 - 05.2002] 1AZFSE..ACT10 |
28235-74130 |
— | ||
|
28254
|
28254
28254-74070
Pinion, Starter Drive
[08.2000 - 05.2002] 1AZFSE..ACT10 |
28254-74070 |
— | ||
|
9009900270
|
9009900270
90099-00270
Screw, Starter
|
90099-00270 |
— | ||
|
9009904449
|
9009904449
90099-04449
New Genuine Part
|
90099-04449 |
— | ||
|
9009904450
|
9009904450
90099-04450
New Genuine Part
|
90099-04450 |
— | ||
|
9009904474
|
9009904474
90099-04474
New Genuine Part
|
90099-04474 |
— | ||
|
9009905129
|
9009905129
90099-05129
Nut (For Front Wiper Arm Setting)
|
90099-05129 |
— | ||
|
9009912009
|
9009912009
90099-12009
Ball, Starter Clutch
|
90099-12009 |
— | ||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
