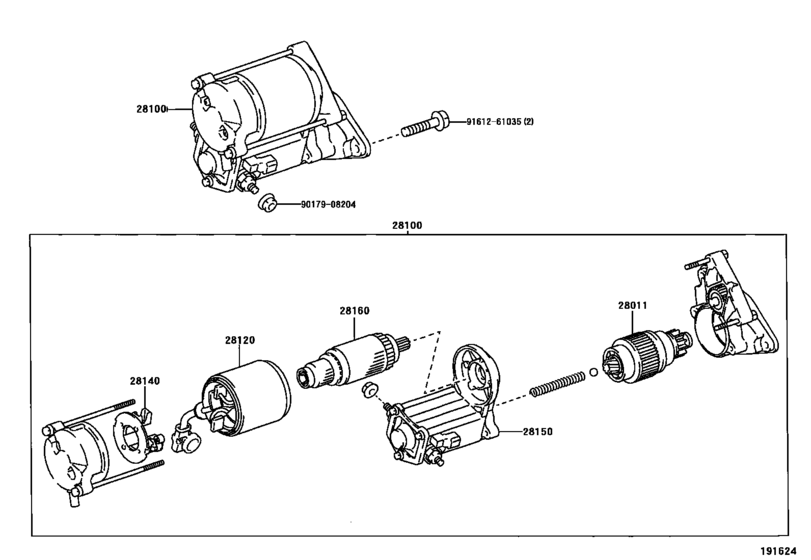

Starter ([05.2002 - ] 12V 1.2KW (0205- )1AZFSE) Diagram Toyota OPA
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- ACT10
- grade
- I
- ENGINE
- 1AZFSE
- Model
- OPA
- From
- 08.2000
- To
- 04.2005
- Gear Shift Type
- CVHC
- Vehicle Model
- OPA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-74070 Clutch Sub-Assy, Starter[08.2000 - 05.2002] 1AZFSE..ACT10 |
28011-74070 |
US $189.28 |
||
|
28100
|
28100
28100-28010 Starter Assy[08.2000 - 05.2002] 1AZFSE..ACT10 １２Ｖ １．２ＫＷ |
28100-28010 |
US $1,349.71 |
||
|
28120
|
28120
28120-16180
Yoke Assy, Starter
[08.2000 - 05.2002] 1AZFSE..ACT10 |
28120-16180 |
— | ||
|
28140
|
28140
28140-74120 Holder Assy, Starter Brush[08.2000 - 05.2002] 1AZFSE..ACT10 |
28140-74120 |
US $18.04 |
||
|
28150
|
28150
28150-28010 Switch Assy, Magnet Starter[08.2000 - 05.2002] 1AZFSE..ACT10 |
28150-28010 |
US $215.49 |
||
|
28160
|
28160
28160-76060 Armature Assy, Starter[08.2000 - 05.2002] 1AZFSE..ACT10 |
28160-76060 |
US $318.86 |
||
|
9017908204
|
9017908204
90179-08204 Nut |
90179-08204 |
from US $1.11 |
||
| replacement | |||||
|
9017908204
|
9017908204
90080-18070 NUT, WWASHER |
90080-18070 |
from US $0.80 |
||
|
9161261035
|
9161261035
91612-61035 Bolt(For Hybrid Vehicle Transaxle & Engine Setting) |
91612-61035 |
from US $1.60 |
||
