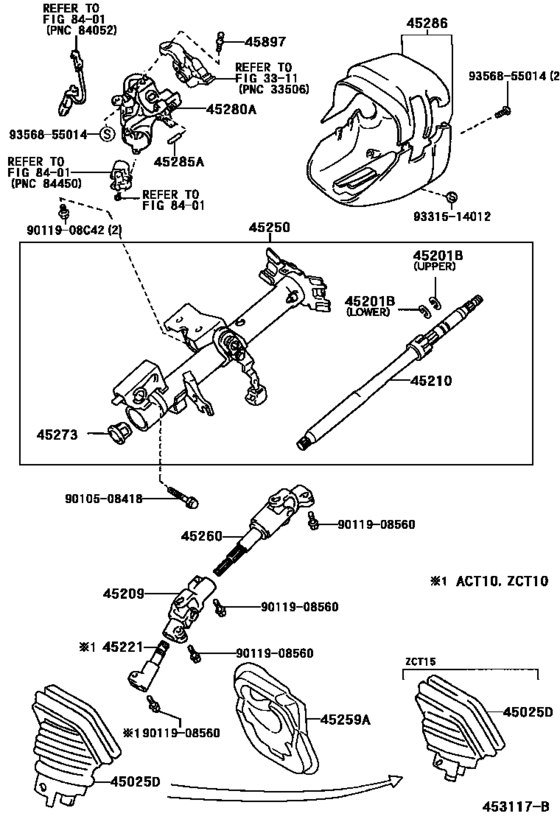

Steering Column & Shaft ([05.2002 - ] (0205- )) Diagram Toyota OPA
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- ACT10
- grade
- I
- ENGINE
- 1AZFSE
- Model
- OPA
- From
- 08.2000
- To
- 04.2005
- Gear Shift Type
- CVHC
- Vehicle Model
- OPA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025D
|
45025D
45025-32150 Cover Sub-Assy, Steering Column Hole, No.1[04.2000 - 05.2002] ACT10,ZCT10 |
45025-32150 |
US $56.64 |
||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[04.2000 - 05.2002] ACT10,ZCT1# 厚さ＝１．２０,下側 |
90520-17042 |
from US $0.86 |
||
|
45201B
|
45201B
90520-17269 Ring, Shaft Snap(For Steering Main Shaft)[04.2000 - 05.2002] ACT10,ZCT1# 厚さ＝１．２０,上側 |
90520-17269 |
US $1.92 |
||
|
45209
|
45209
45209-63010 Yoke Sub-Assy, Steering Sliding[04.2000 - 05.2002] ACT10,ZCT10 |
45209-63010 |
US $116.48 |
||
|
45210
|
45210
45210-32200 Shaft Assy, Steering Main[04.2000 - 05.2002] ACT10,ZCT1# |
45210-32200 |
US $116.48 |
||
|
45221
|
45221
45221-32120 Shaft, Steering Intermediate[04.2000 - 05.2002] ACT10,ZCT10 |
45221-32120 |
US $142.69 |
||
|
45250
|
45250
45250-63010 Column Assy, Steering[05.2002 -] ACT10,ZCT1# |
45250-63010 |
US $267.90 |
||
|
45259A
|
45259A
45259-63010 Sheet, Column Hole Cover Silencer[04.2000 - 05.2002] ACT10,ZCT1# |
45259-63010 |
US $34.65 |
||
|
45260
|
45260
45260-63010 Shaft Assy, Steering Intermediate, No.2[04.2000 - 05.2002] ACT10,ZCT10 |
45260-63010 |
US $198.02 |
||
|
45273
|
45273
45273-20060 Bush, Steering Main Shaft[04.2000 - 05.2002] ACT10,ZCT1# |
45273-20060 |
US $14.41 |
||
|
45280A
|
45280A
45280-32191 Bracket Assy, Steering Column, Upper[04.2000 - 05.2002] ACT10,ZCT1# |
45280-32191 |
US $222.77 |
||
|
45285A
|
45285A
45285-32010 Pin, Steering Lock[04.2000 - 05.2002] ACT10,ZCT1# |
45285-32010 |
US $2.48 |
||
|
45286
|
45286
45286-63901-B0 Cover, Steering Column[08.2000 - 05.2002] ACT10 DK.GRAY,TRIM1# |
45286-63901-B0 |
US $58.39 |
||
|
45897
|
45897
45897-12020 Bolt, Steering Lock Set[04.2000 - 05.2002] ACT10,ZCT1# |
45897-12020 |
from US $3.36 |
||
|
9011908C42
|
9011908C42
90119-08C42 New Genuine Part |
90119-08C42 |
US $1.28 |
||
|
9010508418
|
9010508418
90105-08418 New Genuine Part |
90105-08418 |
US $1.75 |
||
| replacement | |||||
|
9010508418
|
9010508418
91551-80855 New Genuine Part |
91551-80855 |
US $1.60 |
||
|
9011908560
|
9011908560
90119-08560 Bolt, Hexagon |
90119-08560 |
from US $1.35 |
||
| replacement | |||||
|
9011908560
|
9011908560
90080-11555 Bolt w-washer |
90080-11555 |
US $44.70 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.82 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
