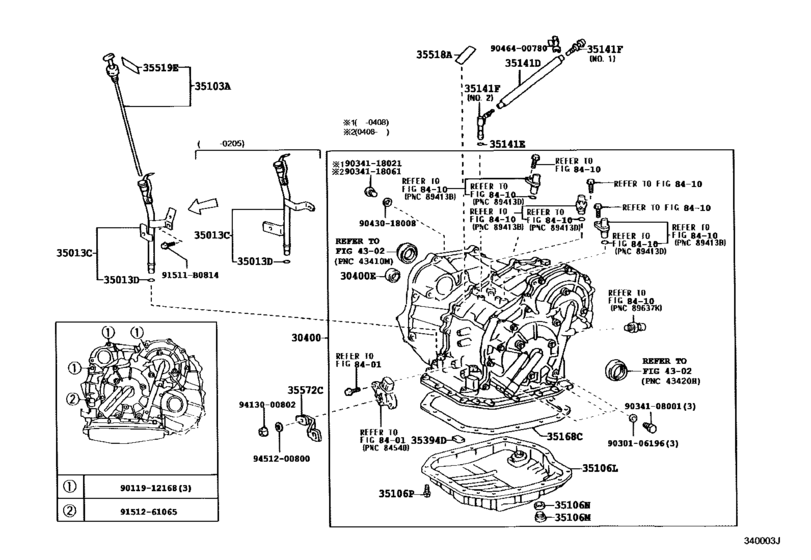

Transaxle Assy(Cvt) ([08.2000 - ] K110 (0008- )ACT10) Diagram Toyota OPA
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- ACT10
- grade
- I
- ENGINE
- 1AZFSE
- Model
- OPA
- From
- 08.2000
- To
- 04.2005
- Gear Shift Type
- CVHC
- Vehicle Model
- OPA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
30400
|
30400
30400-63010 Transaxle Assy, Continuously Variable[08.2000 - 08.2001] ACT10 |
30400-63010 |
US $6,406.40 |
||
| replacement | |||||
|
30400
|
30400
30400-63011 Transaxle Assy, Continuously Variable[08.2000 - 08.2001] ACT10 |
30400-63011 |
US $6,420.96 |
||
|
30400
|
30400
30400-63011 Transaxle Assy, Continuously Variable[08.2001 - 05.2002] ACT10 |
30400-63011 |
US $6,420.96 |
||
|
30400E
|
30400E
90311-47014 Seal, Type T Oil(For Cvt Oil Pump)[08.2000 - 05.2002] ACT10 |
90311-47014 |
from US $4.64 |
||
|
35013C
|
35013C
35013-20830 Tube Sub-Assy, Transmission Oil Filler[05.2002 -] ACT10 |
35013-20830 |
US $31.16 |
||
|
35013C
|
35013C
35013-63010 Tube Sub-Assy, Transmission Oil Filler[08.2000 - 05.2002] ACT10 |
35013-63010 |
US $32.76 |
||
|
35013D
|
35013D
90301-09173 Ring, O(For Transmission Oil Filler Tube)[08.2000 - 05.2002] ACT10 |
90301-09173 |
from US $2.18 |
||
|
35103A
|
35103A
35103-63010 Gage Sub-Assy, Transmission Oil Level[08.2000 - 05.2002] ACT10 |
35103-63010 |
US $15.58 |
||
|
35106L
|
35106L
35106-63010 Pan Sub-Assy, Transaxle Oil[08.2000 - 05.2002] ACT10 |
35106-63010 |
US $96.10 |
||
|
35106M
|
35106M
90341-18016 Plug, W/head Straight Screw(For Transaxle Housing & Case)[08.2000 - 05.2002] ACT10 |
90341-18016 |
from US $1.91 |
||
|
35106N
|
35106N
90430-18008 Gasket[08.2000 - 05.2002] ACT10 |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
35106N
|
35106N
90430-T0021
Gasket(For Manual Transmission Filler Plug)
[08.2000 - 05.2002] ACT10 |
90430-T0021 |
— | ||
|
35106P
|
35106P
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)[08.2000 - 05.2002] ACT10 |
90119-06173 |
from US $0.82 |
||
|
35141D
|
35141D
35121-63010 Hose(For Breather Plug)[08.2000 - 05.2002] ACT10 |
35121-63010 |
US $10.34 |
||
| replacement | |||||
|
35141D
|
35141D
3510A-44012 Hose Sub-Assy, Transmission Breather[08.2000 - 05.2002] ACT10 |
3510A-44012 |
US $16.11 |
||
|
35141E
|
35141E
90301-06005 Ring, O (For Breather Plug)[08.2000 - 05.2002] ACT10 |
90301-06005 |
from US $2.40 |
||
|
35141F
|
35141F
90930-03149 Plug Sub-Assy, Breather(For Transmission)[08.2000 - 05.2002] ACT10 ＮＯ．１ |
90930-03149 |
from US $3.52 |
||
|
35141F
|
35141F
90930-03164 Plug, Breather(For Transaxle)[08.2000 - 05.2002] ACT10 ＮＯ．２ |
90930-03164 |
US $5.76 |
||
|
35168C
|
35168C
35168-63010 Gasket, Transaxle Oil Pan[08.2000 - 05.2002] ACT10 |
35168-63010 |
from US $16 |
||
|
35394D
|
35394D
35394-30011 Magnet, Oil Cleaner (For Transmission)[08.2000 - 05.2002] ACT10 |
35394-30011 |
from US $5.76 |
||
|
35518A
|
35518A
35518-63010 Label, Automatic Transaxle Information, No.2[08.2000 - 05.2002] ACT10 |
35518-63010 |
US $2.33 |
||
|
35519E
|
35519E
35519-63010 Label, Automatic Trans Information[08.2000 - 05.2002] ACT10 |
35519-63010 |
US $4.51 |
||
|
35572C
|
35572C
35572-63010 Lever, Transmission Control Shaft[08.2000 - 05.2002] ACT10 |
35572-63010 |
US $12.23 |
||
|
91511B0814
|
91511B0814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
9011912168
|
9011912168
90119-12168 Bolt(For Transaxle & Engine Setting) |
90119-12168 |
from US $2.13 |
||
|
9030106196
|
9030106196
90301-06196 O Ring, Transaxle Case, No.1 |
90301-06196 |
from US $2.26 |
||
|
9034108001
|
9034108001
90341-08001 Plug, Transaxle Case, No.1 |
90341-08001 |
from US $1.92 |
||
|
9034118021
|
9034118021
90341-18021 Plug, Filler(Hv) |
90341-18021 |
from US $2.44 |
||
|
9034118061
|
9034118061
90341-18061 Plug, Hole (CVT TC) |
90341-18061 |
US $4.96 |
||
|
9043018008
|
9043018008
90430-18008 Gasket |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
9043018008
|
9043018008
90430-T0021
Gasket(For Manual Transmission Filler Plug)
|
90430-T0021 |
— | ||
|
9046400780
|
9046400780
90464-00780 New Genuine Part |
90464-00780 |
US $2.04 |
||
|
9151261065
|
9151261065
91512-61065 Bolt(For Transaxle & Engine Setting) |
91512-61065 |
US $2.62 |
||
|
9413000802
|
9413000802
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
| replacement | |||||
|
9413000802
|
9413000802
90170-A0001 New Genuine Part |
90170-A0001 |
US $1.59 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
