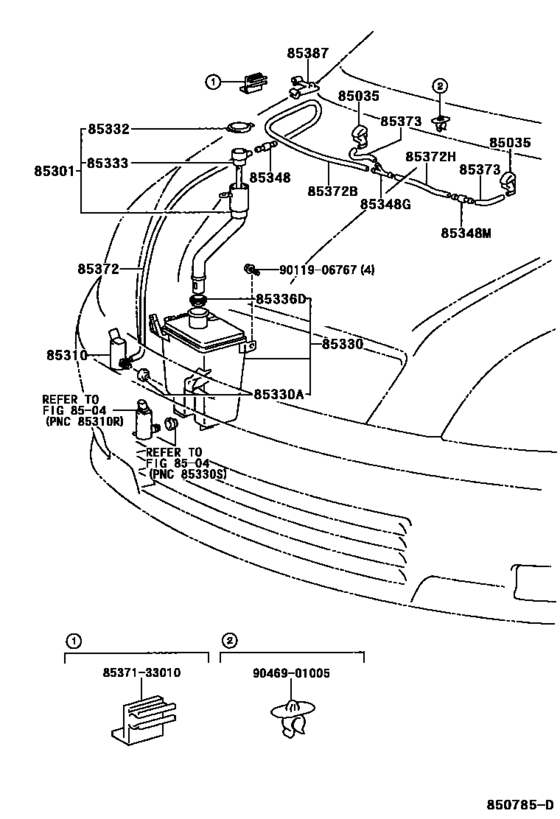

Windshield Washer ([04.2000 - ] (0004- )) Diagram Toyota OPA
- Year
- 2000 - 2005
- Sales region
- Japan
- Frame
- ACT10
- grade
- I
- ENGINE
- 1AZFSE
- Model
- OPA
- From
- 08.2000
- To
- 04.2005
- Gear Shift Type
- CVHC
- Vehicle Model
- OPA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-63010
Nozzle Sub-Assy, Washer
[04.2000 - 05.2002] ACT10,ZCT1# |
85381-63010 |
— | ||
|
85301
|
85301
85301-63010
Inlet Sub-Assy, Washer
[04.2000 - 05.2002] ACT10,ZCT1# |
85301-63010 |
— | ||
|
85310
|
85310
85330-10280 Motor And Pump Assy, Windshield Washer[04.2000 - 05.2002] ACT10,ZCT1# |
85330-10280 |
from US $60.45 |
||
|
85330
|
85330
85315-63020
Jar Assy, Windshield Washer
[04.2000 - 05.2002] ACT10,ZCT1# ｱﾘ(ﾘﾔﾜｲﾊﾟ) |
85315-63020 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[04.2000 - 05.2002] ACT10,ZCT1# |
90099-32089 |
from US $0.98 |
||
| replacements | |||||
|
85330A
|
85330A
90099320891
Grommet
[04.2000 - 05.2002] ACT10,ZCT1# |
90099320891 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[04.2000 - 05.2002] ACT10,ZCT1# |
90068-32002 |
US $7.46 |
||
|
85332
|
85332
85316-16070 Cap, Washer, Inlet[04.2000 - 05.2002] ACT10,ZCT1# |
85316-16070 |
from US $1.75 |
||
|
85333
|
85333
85312-63010 Filter, Windshield Washer Jar[04.2000 - 05.2002] ACT10,ZCT1# |
85312-63010 |
US $9.57 |
||
|
85336D
|
85336D
85336-30160 Bush, Windshield Washer Jar[04.2000 - 05.2002] ACT10,ZCT1# |
85336-30160 |
from US $3.32 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[04.2000 - 05.2002] ACT10,ZCT1# |
85349-89122 |
from US $1.25 |
||
|
85348G
|
85348G
85348-12250 Joint, Windshield Washer Hose, No.1[04.2000 - 05.2002] ACT10,ZCT1# |
85348-12250 |
from US $0.55 |
||
|
85348M
|
85348M
85349-89122 Valve Sub-Assy, Washer[04.2000 - 05.2002] ACT10,ZCT1# |
85349-89122 |
from US $1.25 |
||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[12.2000 - 05.2002] ACT10,ZCT1# ＊Ｈ，Ｌ＝１０５０ |
90099-33080 |
from US $5.95 |
||
|
85372
|
85372
90099-33956 Hose, Windshield Washer (From Joint To Joint), No.1[05.2000 - 12.2000] ACT10,ZCT1# ＊Ｈ，Ｌ＝１１３０ |
90099-33956 |
US $4.22 |
||
| replacement | |||||
|
85372
|
85372
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.2000 - 12.2000] ACT10,ZCT1# ＊Ｈ，Ｌ＝１１３０ |
90099-33080 |
from US $5.95 |
||
|
85372B
|
85372B
90446-07001 Hose, Windshield Washer (From Motor To Joint)[05.2000 - 05.2002] ACT10,ZCT1# ＊Ｈ，Ｌ＝７７０ |
90446-07001 |
from US $2.10 |
||
|
85372H
|
85372H
90446-07001 Hose, Windshield Washer (From Motor To Joint)[04.2000 - 05.2002] ACT10,ZCT1# ＊Ｈ，Ｌ＝３５０ |
90446-07001 |
from US $2.10 |
||
|
85373
|
85373
90099-33080 Hose, Windshield Washer (From Motor To Joint)[04.2000 - 05.2002] ACT10,ZCT1# ＊Ｈ，Ｌ＝１００ |
90099-33080 |
from US $5.95 |
||
|
85387
|
85387
85387-22410 Clamp No.1 (For Windseield Washer)[04.2000 - 05.2002] ACT10,ZCT1# |
85387-22410 |
US $3.14 |
||
|
8537133010
|
8537133010
85371-33010 Clamp, Washer, No.2 |
85371-33010 |
US $2.40 |
||
|
9011906767
|
9011906767
90119-06767 Bolt, W/washer(For Engine Under Cover) |
90119-06767 |
from US $0.72 |
||
|
9046901005
|
9046901005
90469-01005 New Genuine Part |
90469-01005 |
US $2.72 |
||
