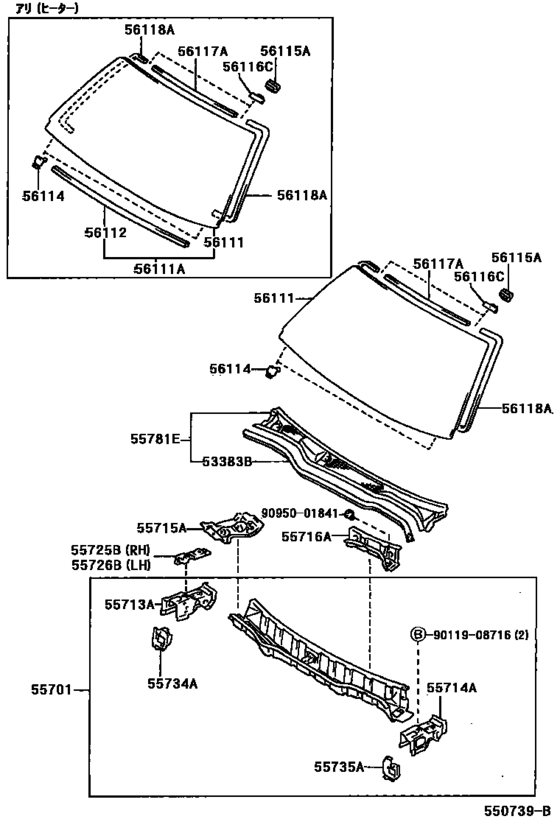

Cowl Panel & Windshield Glass ([08.2000 - ] (0008- )) Diagram Toyota ORIGIN
- Year
- 2000 - 2001
- Sales region
- Japan
- Frame
- JCG17
- body
- SED
- ENGINE
- 2JZGE
- From
- 08.2000
- To
- 04.2001
- Vehicle Model
- ORIGIN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53383B
|
53383B
53383-51010 Seal, Hood To Cowl Top[08.2000 -] JCG17 |
53383-51010 |
US $30.87 |
||
|
55701
|
55701
55700-51030 Panel Sub-Assy, Cowl[08.2000 -] JCG17 |
55700-51030 |
US $594.05 |
||
|
55701
|
55701
55700-51040 Panel Sub-Assy, Cowl[08.2000 -] JCG17 ｶﾝﾚｲﾁ ｼﾖｳ |
55700-51040 |
US $594.05 |
||
|
55713A
|
55713A
55713-51900 Panel, Cowl Top Side, Rh[08.2000 -] JCG17 |
55713-51900 |
US $67.85 |
||
|
55714A
|
55714A
55714-51900 Panel, Cowl Top Side, Lh[08.2000 -] JCG17 |
55714-51900 |
US $67.85 |
||
|
55715A
|
55715A
55715-51010 Brace, Cowl Top To Apron, Rh[08.2000 -] JCG17 |
55715-51010 |
US $22.71 |
||
|
55716A
|
55716A
55716-51010 Brace, Cowl Top To Apron, Lh[08.2000 -] JCG17 |
55716-51010 |
US $53 |
||
| replacement | |||||
|
55716A
|
55716A
55716-51011 Brace, Cowl Top To Apron, Lh[08.2000 -] JCG17 |
55716-51011 |
US $53 |
||
|
55725B
|
55725B
55725-51010 Reinforcement, Hood Hinge Mounting[08.2000 -] JCG17 |
55725-51010 |
US $28.97 |
||
|
55726B
|
55726B
55726-51010 Reinforcement, Hood Hinge Mounting, Lh[08.2000 -] JCG17 |
55726-51010 |
US $28.97 |
||
|
55734A
|
55734A
55734-51010 Plate, Water Guard, Rh[08.2000 -] JCG17 |
55734-51010 |
US $11.21 |
||
|
55735A
|
55735A
55735-51010 Plate, Water Guard, Lh[08.2000 -] JCG17 |
55735-51010 |
US $11.21 |
||
|
55781E
|
55781E
55708-51030 Louver Sub-Assy, Cowl Top Ventilator[08.2000 -] JCG17 |
55708-51030 |
US $123.76 |
||
|
55781E
|
55781E
55708-51040 Louver Sub-Assy, Cowl Top Ventilator[08.2000 -] JCG17 ｶﾝﾚｲﾁ ｼﾖｳ |
55708-51040 |
US $133.95 |
||
|
56111
|
56111
56111-51010
Glass, Windshield
[08.2000 -] JCG17 ＊ＴＬ，Ｔ＝５．３，グリーン |
56111-51010 |
— | ||
|
56111A
|
56111A
56101-51010
Glass, Windshield
[08.2000 -] JCG17 ＊ＴＬ，Ｔ＝５．３，グリーン |
56101-51010 |
— | ||
|
56112
|
56112
56112-51010 Dam, Window Glass Adhesive, No.2[08.2000 -] JCG17 |
56112-51010 |
US $11.07 |
||
| replacement | |||||
|
56112
|
56112
56117-44030 Dam Kit, Back Window Glass[08.2000 -] JCG17 |
56117-44030 |
from US $21.43 |
||
|
56114
|
56114
56114-50020 Retainer, Windshield Glass[08.2000 -] JCG17 |
56114-50020 |
from US $4.13 |
||
|
56115A
|
56115A
56115-30100 Stopper, Windshield Glass, No.1[08.2000 -] JCG17 |
56115-30100 |
from US $1.70 |
||
|
56116C
|
56116C
56116-22050 Stopper, Windshield Glass, No.1[08.2000 -] JCG17 |
56116-22050 |
from US $1.38 |
||
|
56117A
|
56117A
56117-51010 Dam, Window Glass Adhesive[08.2000 -] JCG17 |
56117-51010 |
US $8.30 |
||
| replacement | |||||
|
56117A
|
56117A
56117-44030 Dam Kit, Back Window Glass[08.2000 -] JCG17 |
56117-44030 |
from US $21.43 |
||
|
56118A
|
56118A
56118-51010 Dam, Window Glass Adhesive, No.2[08.2000 -] JCG17 |
56118-51010 |
US $18.05 |
||
| replacement | |||||
|
56118A
|
56118A
56117-44030 Dam Kit, Back Window Glass[08.2000 -] JCG17 |
56117-44030 |
from US $21.43 |
||
|
56118A
|
56118A
56118-51020 Dam, Window Glass Adhesive, No.2[08.2000 -] JCG17 ｱﾘ(ﾋ-ﾀ) |
56118-51020 |
US $9.03 |
||
| replacement | |||||
|
56118A
|
56118A
56117-44030 Dam Kit, Back Window Glass[08.2000 -] JCG17 ｱﾘ(ﾋ-ﾀ) |
56117-44030 |
from US $21.43 |
||
|
9011908716
|
9011908716
90119-08716 BOLT WWASHER |
90119-08716 |
from US $0.88 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $1.76 |
||
