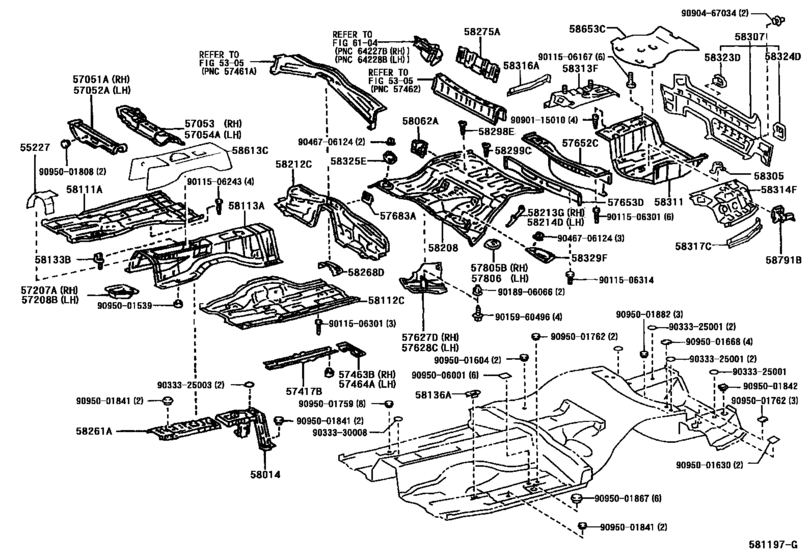

Floor Pan & Lower Back Panel ([08.2000 - ] (0008- )) Diagram Toyota ORIGIN
- Year
- 2000 - 2001
- Sales region
- Japan
- Frame
- JCG17
- body
- SED
- ENGINE
- 2JZGE
- From
- 08.2000
- To
- 04.2001
- Vehicle Model
- ORIGIN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55227
|
55227
55227-51010 Sheet, Dash Panel Insulator, No.6[08.2000 -] JCG17 |
55227-51010 |
US $23.44 |
||
|
57051A
|
57051A
57051-51010 Member Sub-Assy, Front Floor Cross, Rh[08.2000 -] JCG17 |
57051-51010 |
US $91.73 |
||
|
57052A
|
57052A
57052-51010 Member Sub-Assy, Front Floor Cross, Lh[08.2000 -] JCG17 |
57052-51010 |
US $91.73 |
||
|
57053
|
57053
57053-51010 Reinforcement Sub-Assy, Front Floor Cross Member, Rh[08.2000 -] JCG17 |
57053-51010 |
US $91.73 |
||
|
57054A
|
57054A
57054-51010 Reinforcement Sub-Assy, Front Floor Cross Member, Lh[08.2000 -] JCG17 |
57054-51010 |
US $91.73 |
||
|
57207A
|
57207A
57207-51010 Bracket Sub-Assy, Engine Rear Mounting Member, Rh[08.2000 -] JCG17 |
57207-51010 |
US $35.53 |
||
|
57208B
|
57208B
57208-51010 Bracket Sub-Assy, Engine Rear Mounting Member, Lh[08.2000 -] JCG17 |
57208-51010 |
US $35.53 |
||
|
57417B
|
57417B
57417-51010 Reinforcement, Front Floor Under[08.2000 -] JCG17 |
57417-51010 |
US $57.51 |
||
|
57463B
|
57463B
57463-51010 Reinforcement, Center Floor Crossmember[08.2000 -] JCG17 |
57463-51010 |
US $27.81 |
||
|
57464A
|
57464A
57464-51010 Strength, Center Floor Crossmember[08.2000 -] JCG17 |
57464-51010 |
US $27.81 |
||
|
57627D
|
57627D
57627-51010 Cover, Rear Floor Side Member, Rh[08.2000 -] JCG17 |
57627-51010 |
US $35.38 |
||
|
57628C
|
57628C
57628-51010 Cover, Rear Floor Side Member, Lh[08.2000 -] JCG17 |
57628-51010 |
US $35.38 |
||
|
57652C
|
57652C
57652-51010 Member, Rear Floor Cross, No.1[08.2000 -] JCG17 |
57652-51010 |
US $145.60 |
||
|
57653D
|
57653D
57653-51010 Member, Rear Floor Cross, No.2[08.2000 -] JCG17 |
57653-51010 |
US $68 |
||
|
57683A
|
57683A
57683-51010 Bracket, Fuel Tank Mounting, No.1[08.2000 -] JCG17 |
57683-51010 |
US $23.88 |
||
|
57805B
|
57805B
57805-51010 Reinforcement Sub-Assy, Belt Anchor, Rh[08.2000 -] JCG17 |
57805-51010 |
US $53 |
||
| replacement | |||||
|
57805B
|
57805B
57805-51011 Reinforcement Sub-Assy, Belt Anchor, Rh[08.2000 -] JCG17 |
57805-51011 |
US $33.20 |
||
|
57806
|
57806
57806-51010 Reinforcement Sub-Assy, Belt Anchor, Lh[08.2000 -] JCG17 |
57806-51010 |
US $53 |
||
| replacement | |||||
|
57806
|
57806
57806-51011 Reinforcement Sub-Assy, Belt Anchor, Lh[08.2000 -] JCG17 |
57806-51011 |
US $33.20 |
||
|
58014
|
58014
58014-51010 Panel Sub-Assy, Front Floor, Rear Lower[08.2000 -] JCG17 |
58014-51010 |
US $120.85 |
||
|
58062A
|
58062A
58062-30010 Bracket Sub-Assy, Fuel Tank Mounting, Rear[08.2000 -] JCG17 |
58062-30010 |
US $21.69 |
||
|
58111A
|
58111A
58111-51010 Pan, Front Floor, Rh[08.2000 -] JCG17 |
58111-51010 |
US $315.95 |
||
|
58112C
|
58112C
58112-51010 Pan, Front Floor, Lh[08.2000 -] JCG17 |
58112-51010 |
US $315.95 |
||
|
58113A
|
58113A
58113-51011 Panel, Front Floor, Center[08.2000 -] JCG17 |
58113-51011 |
US $380.02 |
||
|
58133B
|
58133B
58133-51010 Bracket, Front Floor Heat Insulator, No.3[08.2000 -] JCG17 |
58133-51010 |
US $5.97 |
||
|
58136A
|
58136A
58136-51010 Cover, Front Floor Hole[08.2000 -] JCG17 |
58136-51010 |
US $2.04 |
||
|
58208
|
58208
58211-51901 Pan, Center Floor[08.2000 -] JCG17 |
58211-51901 |
US $380.02 |
||
| replacements | |||||
|
58208
|
58208
57805-53012 Reinforcement Sub-Assy, Belt Anchor, Rh[08.2000 -] JCG17 |
57805-53012 |
US $53 |
||
|
58208
|
58208
58211-51902 Pan, Center Floor[08.2000 -] JCG17 |
58211-51902 |
US $382.93 |
||
|
58212C
|
58212C
58212-51010 Pan, Center Floor, Front[08.2000 -] JCG17 |
58212-51010 |
US $187.82 |
||
|
58213G
|
58213G
58213-51011 Reinforcement, Center Floor Panel, No.1 Rh[08.2000 -] JCG17 |
58213-51011 |
US $7.72 |
||
|
58214D
|
58214D
58214-51011 Reinforcement, Center Floor Panel, No.1 Lh[08.2000 -] JCG17 |
58214-51011 |
US $7.72 |
||
|
58261A
|
58261A
58261-51010 Cover, Transmission[08.2000 -] JCG17 |
58261-51010 |
US $88.82 |
||
|
58268D
|
58268D
58268-51011 Reinforcement, Parking Brake Cable, No.3[08.2000 -] JCG17 |
58268-51011 |
US $18.05 |
||
|
58275A
|
58275A
58275-51010 Retainer, Rear Seat Back To Center Floor[08.2000 -] JCG17 |
58275-51010 |
US $46.01 |
||
|
58298E
|
58298E
58298-30030 Bracket, Hot Air Intake, No.1[08.2000 -] JCG17 |
58298-30030 |
US $4.80 |
||
|
58299C
|
58299C
58299-30010 Bracket, Hot Air Intake, No.2[08.2000 -] JCG17 |
58299-30010 |
US $9.03 |
||
|
58305
|
58305
58351-53010 Bracket Sub-Assy, Spare Wheel Clamp[08.2000 -] JCG17 |
58351-53010 |
US $9.90 |
||
|
58307
|
58307
58307-51020 Panel Sub-Assy, Body Lower Back[08.2000 -] JCG17 |
58307-51020 |
US $270.82 |
||
|
58311
|
58311
58311-51010 Pan, Rear Floor[08.2000 - 12.2000] JCG17 |
58311-51010 |
US $254.80 |
||
| replacement | |||||
|
58311
|
58311
58311-51011 Pan, Rear Floor[08.2000 - 12.2000] JCG17 |
58311-51011 |
US $251.89 |
||
|
58311
|
58311
58311-51011 Pan, Rear Floor[12.2000 -] JCG17 |
58311-51011 |
US $251.89 |
||
|
58313F
|
58313F
58313-51010 Extension, Rear Floor Pan To Quarter Panel, Rh[08.2000 -] JCG17 |
58313-51010 |
US $63.48 |
||
|
58314F
|
58314F
58314-51010 Extension, Rear Floor Pan To Quarter Panel, Lh[08.2000 -] JCG17 |
58314-51010 |
US $63.19 |
||
|
58316A
|
58316A
58317-51010 Extension, Rear Floor Side Panel, Rear Rh[08.2000 - 04.2001] JCG17 |
58317-51010 |
US $16.60 |
||
|
58317C
|
58317C
58316-51010 Extension, Rear Floor Side Panel, Rear Lh[08.2000 - 04.2001] JCG17 |
58316-51010 |
US $16.60 |
||
|
58323D
|
58323D
58323-51010 Reinforcement, Rear Bumper Arm Support[08.2000 -] JCG17 |
58323-51010 |
US $18.05 |
||
|
58324D
|
58324D
58324-51010 Reinforcement, Rear Bumper Arm Support, Lh[08.2000 -] JCG17 |
58324-51010 |
US $31.01 |
||
|
58325E
|
58325E
58325-30010 Cover, Rear Floor Service Hole[08.2000 -] JCG17 |
58325-30010 |
US $9.32 |
||
|
58329F
|
58329F
58329-30020 Cover, Rear Floor Service Hole, No.2[08.2000 -] JCG17 |
58329-30020 |
US $17.76 |
||
|
58613C
|
58613C
58613-51010 Sheet, Front Floor Silencer, Center[08.2000 -] JCG17 |
58613-51010 |
US $125.22 |
||
|
58653C
|
58653C
58653-51010 Sheet, Rear Floor Silencer, No.2[08.2000 -] JCG17 |
58653-51010 |
US $126.67 |
||
|
58791B
|
58791B
58791-30030 Carrier, Jack[08.2000 -] JCG17 |
58791-30030 |
US $14.71 |
||
|
9011506167
|
9011506167
90115-06167 Bolt, Weld(For Front Floor Panel, Center) |
90115-06167 |
US $1.12 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.28 |
||
|
9011506301
|
9011506301
90115-06301 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06301 |
US $0.96 |
||
|
9011506314
|
9011506314
90115-06314 New Genuine Part |
90115-06314 |
US $1.46 |
||
|
9015960496
|
9015960496
90159-60496 SCREW WWASHER |
90159-60496 |
from US $0.68 |
||
|
9018906066
|
9018906066
90189-06066 CLIP |
90189-06066 |
from US $0.76 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.31 |
||
|
9033325003
|
9033325003
90333-25003 Plug, Hole(For Hood) |
90333-25003 |
from US $1.12 |
||
|
9033330008
|
9033330008
90333-30008 PLUG PLATE |
90333-30008 |
from US $1.12 |
||
|
9046706124
|
9046706124
90467-06124 New Genuine Part |
90467-06124 |
US $3.20 |
||
|
9090115010
|
9090115010
90901-15010 New Genuine Part |
90901-15010 |
US $4.95 |
||
|
9090467034
|
9090467034
90904-67034 Clip |
90904-67034 |
US $2.48 |
||
|
9095001539
|
9095001539
90950-01539 PLUG HOLE |
90950-01539 |
from US $1.42 |
||
|
9095001604
|
9095001604
90950-01604 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01604 |
US $1.76 |
||
|
9095001630
|
9095001630
90950-01630 New Genuine Part |
90950-01630 |
US $3.20 |
||
|
9095001668
|
9095001668
90950-01668 New Genuine Part |
90950-01668 |
US $0.79 |
||
|
9095001759
|
9095001759
90950-01759 PLUG |
90950-01759 |
from US $1.92 |
||
|
9095001762
|
9095001762
90950-01762 New Genuine Part |
90950-01762 |
US $1.76 |
||
|
9095001808
|
9095001808
90950-01808 PLUG HOLE |
90950-01808 |
from US $1.76 |
||
|
9095001841
|
9095001841
90950-01841 Direct |
90950-01841 |
from US $0.92 |
||
|
9095001842
|
9095001842
90950-01842 New Genuine Part |
90950-01842 |
US $3.20 |
||
|
9095001867
|
9095001867
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.71 |
||
|
9095001882
|
9095001882
90950-01882 Cover, Hole |
90950-01882 |
from US $2.24 |
||
|
9095006001
|
9095006001
90950-06001 Protector, Front Side Panel, No.3 |
90950-06001 |
US $2.72 |
||
