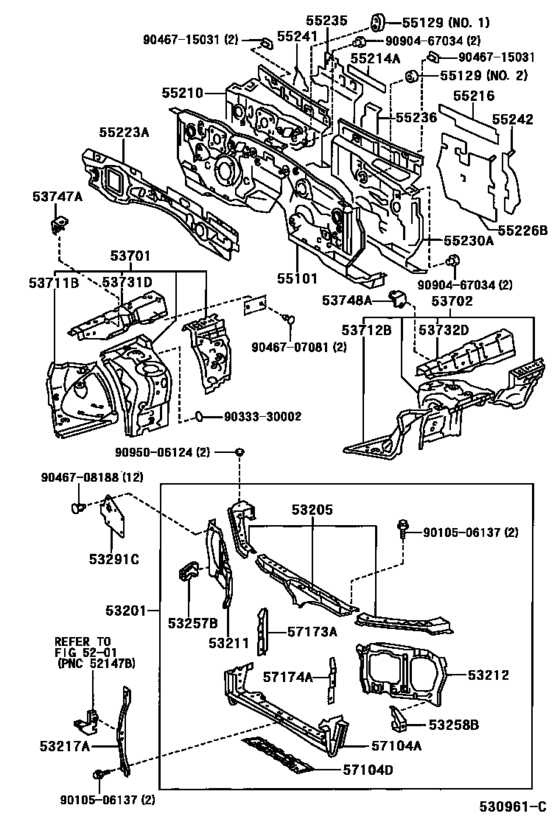

Front Fender Apron & Dash Panel ([07.2000 - ] (0007- )) Diagram Toyota ORIGIN
- Year
- 2000 - 2001
- Sales region
- Japan
- Frame
- JCG17
- body
- SED
- ENGINE
- 2JZGE
- From
- 08.2000
- To
- 04.2001
- Vehicle Model
- ORIGIN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53201
|
53201
53201-51031 Support Sub-Assy, Radiator[08.2000 -] JCG17 |
53201-51031 |
US $409.14 |
||
|
53205
|
53205
53205-51020 Support Sub-Assy, Radiator, Upper[08.2000 -] JCG17 |
53205-51020 |
US $145.60 |
||
|
53211
|
53211
53211-51010 Support, Radiator, Rh[08.2000 -] JCG17 |
53211-51010 |
US $41.35 |
||
|
53212
|
53212
53212-51010 Support, Radiator, Lh[08.2000 -] JCG17 |
53212-51010 |
US $41.35 |
||
|
53217A
|
53217A
53217-51020 Brace, Hood Lock Support[08.2000 -] JCG17 |
53217-51020 |
US $22.86 |
||
|
53257B
|
53257B
53257-51020 Bracket, Radiator Support To Front Fender[08.2000 -] JCG17 |
53257-51020 |
US $11.36 |
||
|
53258B
|
53258B
53258-51020 Bracket, Radiator Support To Front Fender, Lh[08.2000 -] JCG17 |
53258-51020 |
US $11.36 |
||
|
53291C
|
53291C
53291-51020 Seal, Radiator Support To Frame[08.2000 -] JCG17 |
53291-51020 |
US $33.92 |
||
|
53701
|
53701
53701-51011 Apron Sub-Assy, Front Fender, Rh[08.2000 -] JCG17 |
53701-51011 |
US $650.83 |
||
| replacements | |||||
|
53701
|
53701
53701-51012 Apron Sub-Assy, Front Fender, Rh[08.2000 -] JCG17 |
53701-51012 |
US $649.38 |
||
|
53701
|
53701
90173-10012 Nut(For Suspension Upper Arm)[08.2000 -] JCG17 |
90173-10012 |
US $1.60 |
||
|
53702
|
53702
53702-51011 Apron Sub-Assy, Front Fender, Lh[08.2000 -] JCG17 |
53702-51011 |
US $650.83 |
||
| replacements | |||||
|
53702
|
53702
53702-51012 Apron Sub-Assy, Front Fender, Lh[08.2000 -] JCG17 |
53702-51012 |
US $649.38 |
||
|
53702
|
53702
90173-10012 Nut(For Suspension Upper Arm)[08.2000 -] JCG17 |
90173-10012 |
US $1.60 |
||
|
53711B
|
53711B
53711-51010 Apron, Front Fender, Front Rh[08.2000 -] JCG17 |
53711-51010 |
US $82.99 |
||
|
53712B
|
53712B
53712-51010 Apron, Front Fender, Front Lh[08.2000 -] JCG17 |
53712-51010 |
US $82.99 |
||
|
53731D
|
53731D
53705-51010 Member, Front Apron To Cowl Side, Upper Rh[08.2000 -] JCG17 |
53705-51010 |
US $72.22 |
||
|
53732D
|
53732D
53706-51010 Member, Front Apron To Cowl Side, Upper Lh[08.2000 -] JCG17 |
53706-51010 |
US $72.22 |
||
|
53747A
|
53747A
53747-51010 Extension, Apron Fender Side, Rh[08.2000 -] JCG17 |
53747-51010 |
US $6.26 |
||
|
53748A
|
53748A
53747-51010 Extension, Apron Fender Side, Rh[08.2000 -] JCG17 |
53747-51010 |
US $6.26 |
||
|
55101
|
55101
55101-51010 Panel Sub-Assy, Dash[08.2000 -] JCG17 |
55101-51010 |
US $502.32 |
||
|
55101
|
55101
55101-51020 Panel Sub-Assy, Dash[08.2000 -] JCG17 ｶﾝﾚｲﾁ ｼﾖｳ |
55101-51020 |
US $502.32 |
||
| replacements | |||||
|
55101
|
55101
55101-51010 Panel Sub-Assy, Dash[08.2000 -] JCG17 ｶﾝﾚｲﾁ ｼﾖｳ |
55101-51010 |
US $502.32 |
||
|
55101
|
55101
90333-15002 PLUG[08.2000 -] JCG17 ｶﾝﾚｲﾁ ｼﾖｳ |
90333-15002 |
from US $1.44 |
||
|
55129
|
55129
55129-51010 Cover, Dash Panel Hole[08.2000 -] JCG17 右側 |
55129-51010 |
US $7.43 |
||
|
55129
|
55129
55139-51010 Cover, Dash Panel Hole[08.2000 -] JCG17 左側 |
55139-51010 |
US $17.47 |
||
|
55210
|
55210
55210-51020 Insulator Assy, Dash Panel[08.2000 -] JCG17 |
55210-51020 |
US $334.88 |
||
|
55214A
|
55214A
55214-51010 Pad, Dash Panel Insulator, No.2[08.2000 -] JCG17 |
55214-51010 |
US $8.30 |
||
|
55216
|
55216
55216-51010 Pad, Dash Panel Insulator, No.4[08.2000 -] JCG17 |
55216-51010 |
US $11.07 |
||
|
55223A
|
55223A
55223-51010 Insulator, Dash Panel, Outer[08.2000 -] JCG17 |
55223-51010 |
US $90.27 |
||
|
55226B
|
55226B
55226-51010 Sheet, Dash Panel Insulator, No.5[08.2000 -] JCG17 |
55226-51010 |
US $91.73 |
||
|
55230A
|
55230A
55230-51030 Insulator Assy, Dash Panel, No.4[08.2000 -] JCG17 |
55230-51030 |
US $334.88 |
||
|
55235
|
55235
55235-51010 Sheet, Dash Panel Insulator, No.3[08.2000 -] JCG17 |
55235-51010 |
US $50.67 |
||
|
55236
|
55236
55236-51010 Sheet, Dash Panel Insulator, No.4[08.2000 -] JCG17 |
55236-51010 |
US $47.47 |
||
|
55241
|
55241
55241-51010 Silencer, Front Panel Side, No.1 Rh[08.2000 -] JCG17 |
55241-51010 |
US $14.27 |
||
|
55242
|
55242
55242-51010 Silencer, Front Panel Side, No.1 Lh[08.2000 -] JCG17 |
55242-51010 |
US $21.84 |
||
|
57104A
|
57104A
57104-51010 Member Sub-Assy, Front Cross[08.2000 -] JCG17 |
57104-51010 |
US $138.32 |
||
|
57104D
|
57104D
57104-51020 Member Sub-Assy, Front Cross[08.2000 -] JCG17 |
57104-51020 |
US $145.60 |
||
|
57173A
|
57173A
57173-51010 Reinforcement, Front Crossmember, No.3 Rh[08.2000 -] JCG17 |
57173-51010 |
US $11.21 |
||
|
57174A
|
57174A
57174-51010 Reinforcement, Front Crossmember, No.3 Lh[08.2000 -] JCG17 |
57174-51010 |
US $11.21 |
||
|
9010506137
|
9010506137
90105-06137 BOLT, WASHER BASED H |
90105-06137 |
from US $0.86 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9046707081
|
9046707081
90467-07081 CLIP |
90467-07081 |
US $0.96 |
||
|
9046708188
|
9046708188
90467-08188 Clip, Radiator Support To Frame |
90467-08188 |
US $1.28 |
||
|
9046715031
|
9046715031
90467-15031 New Genuine Part |
90467-15031 |
US $2.72 |
||
|
9090467034
|
9090467034
90904-67034 Clip |
90904-67034 |
US $2.48 |
||
|
9095006124
|
9095006124
90950-06124 Tape, Seal |
90950-06124 |
from US $1.44 |
||
