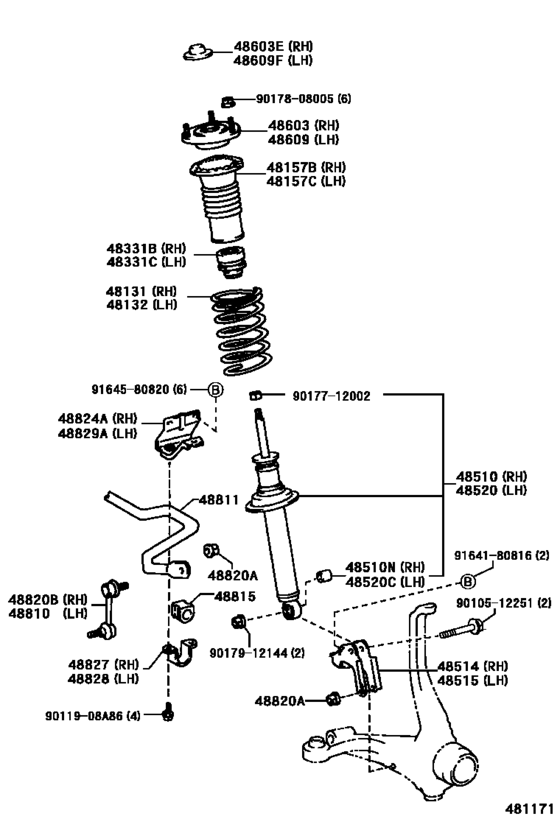

Front Spring & Shock Absorber ([08.2000 - ] (0008- )) Diagram Toyota ORIGIN
- Year
- 2000 - 2001
- Sales region
- Japan
- Frame
- JCG17
- body
- SED
- ENGINE
- 2JZGE
- From
- 08.2000
- To
- 04.2001
- Vehicle Model
- ORIGIN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-51060 Spring, Front Coil, Rh[08.2000 -] JCG17 |
48131-51060 |
US $131.04 |
||
|
48132
|
48132
48131-51060 Spring, Front Coil, Rh[08.2000 -] JCG17 |
48131-51060 |
US $131.04 |
||
|
48157B
|
48157B
48157-22040 Insulator, Front Coil Spring, Upper Rh[08.2000 -] JCG17 |
48157-22040 |
from US $33.70 |
||
|
48157C
|
48157C
48157-22040 Insulator, Front Coil Spring, Upper Rh[08.2000 -] JCG17 |
48157-22040 |
from US $33.70 |
||
|
48331B
|
48331B
48331-30130 Bumper, Front Spring, Rh[08.2000 -] JCG17 |
48331-30130 |
from US $18.60 |
||
|
48331C
|
48331C
48331-30130 Bumper, Front Spring, Rh[08.2000 -] JCG17 |
48331-30130 |
from US $18.60 |
||
|
48510
|
48510
48510-59115 Absorber Assy, Shock, Front Rh[08.2000 -] JCG17 マーク ４８５１０−５１０１０ |
48510-59115 |
US $125.22 |
||
| replacement | |||||
|
48510
|
48510
48510-59185 Absorber Assy, Shock, Front Rh[08.2000 -] JCG17 マーク ４８５１０−５１０１０ |
48510-59185 |
US $137.64 |
||
|
48510N
|
48510N
90389-12016 Bush(For Front Shock Absorber)[08.2000 -] JCG17 |
90389-12016 |
from US $14.40 |
||
|
48514
|
48514
48514-22010 Bracket, Front Shock Absorber, Lower Rh[08.2000 -] JCG17 |
48514-22010 |
US $27.36 |
||
|
48515
|
48515
48515-22010 Bracket, Front Shock Absorber, Lower Lh[08.2000 -] JCG17 |
48515-22010 |
US $27.36 |
||
|
48520
|
48520
48510-59115 Absorber Assy, Shock, Front Rh[08.2000 -] JCG17 マーク ４８５１０−５１０１０ |
48510-59115 |
US $125.22 |
||
| replacement | |||||
|
48520
|
48520
48510-59185 Absorber Assy, Shock, Front Rh[08.2000 -] JCG17 マーク ４８５１０−５１０１０ |
48510-59185 |
US $137.64 |
||
|
48520C
|
48520C
90389-12016 Bush(For Front Shock Absorber)[08.2000 -] JCG17 |
90389-12016 |
from US $14.40 |
||
|
48603
|
48603
48680-30150 Support Sub-Assy, Front Suspension, Rh[08.2000 -] JCG17 |
48680-30150 |
US $79.92 |
||
|
48603E
|
48603E
90950-01659 Plug, Hole(For Front Suspension Support)[08.2000 -] JCG17 |
90950-01659 |
from US $4.21 |
||
|
48609
|
48609
48680-30150 Support Sub-Assy, Front Suspension, Rh[08.2000 -] JCG17 |
48680-30150 |
US $79.92 |
||
|
48609F
|
48609F
90950-01659 Plug, Hole(For Front Suspension Support)[08.2000 -] JCG17 |
90950-01659 |
from US $4.21 |
||
|
48810
|
48810
48820-22041 Link Assy, Front Stabilizer[08.2000 -] JCG17 |
48820-22041 |
from US $75.14 |
||
|
48811
|
48811
48811-51010 Bar, Stabilizer, Front[08.2000 -] JCG17 |
48811-51010 |
US $174.72 |
||
|
48815
|
48815
48815-51010 Bush, Front Stabilizer Bar, No.1[08.2000 -] JCG17 |
48815-51010 |
from US $13.92 |
||
|
48820A
|
48820A
90179-10054 Nut, No.1 (For Center Support Bearing)[08.2000 -] JCG17 スタビライザバー側 |
90179-10054 |
from US $0.37 |
||
|
48820A
|
48820A
90179-12047 Nut(For Front Stabilizer Link)[08.2000 -] JCG17 ブラケット側 |
90179-12047 |
from US $1.56 |
||
|
48820B
|
48820B
48820-22041 Link Assy, Front Stabilizer[08.2000 -] JCG17 |
48820-22041 |
from US $75.14 |
||
|
48824A
|
48824A
48809-30020 Bracket, Front Stabilizer, No.1 Rh[08.2000 -] JCG17 |
48809-30020 |
US $17.91 |
||
| replacement | |||||
|
48824A
|
48824A
48809-30021 Bracket, Front Stabilizer, No.1 Rh[08.2000 -] JCG17 |
48809-30021 |
US $20.22 |
||
|
48827
|
48827
48824-22090 Bracket, Front Stabilizer, No.2 Rh[08.2000 -] JCG17 |
48824-22090 |
US $13.44 |
||
|
48828
|
48828
48824-22090 Bracket, Front Stabilizer, No.2 Rh[08.2000 -] JCG17 |
48824-22090 |
US $13.44 |
||
|
48829A
|
48829A
48809-30030 Bracket, Front Stabilizer, No.1 Lh[08.2000 -] JCG17 |
48809-30030 |
US $17.91 |
||
| replacement | |||||
|
48829A
|
48829A
48809-30031 Bracket, Front Stabilizer, No.1 Lh[08.2000 -] JCG17 |
48809-30031 |
US $20.22 |
||
|
9011908A86
|
9011908A86
90119-08A86 New Genuine Part |
90119-08A86 |
US $1.92 |
||
|
9010512251
|
9010512251
90105-12251 BOLT WASHER BASED |
90105-12251 |
US $4.96 |
||
|
9017712002
|
9017712002
90177-12002 Nut |
90177-12002 |
US $1.44 |
||
|
9017808005
|
9017808005
90178-08005 NUT, FLANGE |
90178-08005 |
US $2.72 |
||
|
9017912144
|
9017912144
90179-12144 Nut(For Front Stabilizer Link) |
90179-12144 |
from US $0.96 |
||
|
9164180816
|
9164180816
91641-80816 BOLT W/WASHER |
91641-80816 |
US $1.76 |
||
|
9164580820
|
9164580820
91645-80820
New Genuine Part
|
91645-80820 |
— | ||
| replacement | |||||
|
9164580820
|
9164580820
91641-K0816 BOLT WWASHER |
91641-K0816 |
US $2.08 |
||
