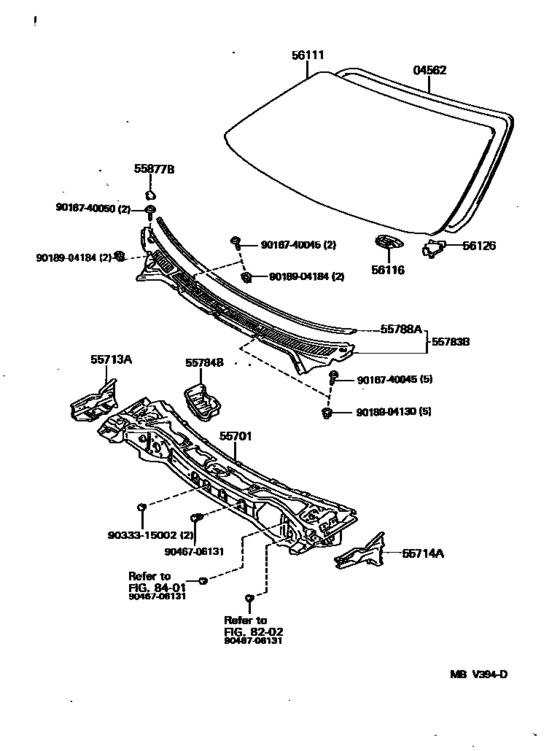

Cowl Panel & Windshield Glass ([04.1991 - ] (9104- )) Diagram Toyota PASEO
- Year
- 1991 - 1995
- Sales region
- U.S.A.
- Frame
- EL44
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- PASEO
- From
- 04.1991
- To
- 08.1995
- Vehicle Model
- PASEO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04562
|
04562
04562-12010 Dam Kit, Windshield Glass[04.1991 - 08.1995] EL44 |
04562-12010 |
from US $31.92 |
||
|
55701
|
55701
55700-16210 Panel Sub-Assy, CowlCOWL [04.1991 - 08.1992] EL44 |
55700-16210 |
US $499.41 |
||
| replacements | |||||
|
55701
|
55701
55700-16231 Panel Sub-Assy, CowlCOWL [04.1991 - 08.1992] EL44 |
55700-16231 |
US $496.50 |
||
|
55701
|
55701
89629-16070 Bracket, Igniter AssyIGNITER ASSY [04.1991 - 08.1992] EL44 |
89629-16070 |
US $8.59 |
||
|
55701
|
55701
55700-16230 Panel Sub-Assy, CowlCOWL [08.1992 - 09.1994] EL44 |
55700-16230 |
US $496.50 |
||
| replacements | |||||
|
55701
|
55701
55700-16231 Panel Sub-Assy, CowlCOWL [08.1992 - 09.1994] EL44 |
55700-16231 |
US $496.50 |
||
|
55701
|
55701
89629-16070 Bracket, Igniter AssyIGNITER ASSY [08.1992 - 09.1994] EL44 |
89629-16070 |
US $8.59 |
||
|
55701
|
55701
55700-16231 Panel Sub-Assy, CowlCOWL [09.1994 - 08.1995] EL44 |
55700-16231 |
US $496.50 |
||
|
55701
|
55701
55700-16300 Panel Sub-Assy, CowlCOWL [09.1994 - 08.1995] EL44..USA CALIFORNIA SPEC |
55700-16300 |
US $496.50 |
||
|
55713A
|
55713A
55713-16050 Panel, Cowl Top Side, Rh[04.1991 - 09.1994] EL44 |
55713-16050 |
US $53.14 |
||
| replacement | |||||
|
55713A
|
55713A
55713-16060 Panel, Cowl Top Side, Rh[04.1991 - 09.1994] EL44 |
55713-16060 |
US $53 |
||
|
55713A
|
55713A
55713-16060 Panel, Cowl Top Side, Rh[09.1994 - 08.1995] EL44 |
55713-16060 |
US $53 |
||
|
55714A
|
55714A
55714-16050 Panel, Cowl Top Side, Lh[04.1991 - 09.1994] EL44 |
55714-16050 |
US $53.14 |
||
| replacement | |||||
|
55714A
|
55714A
55714-16060 Panel, Cowl Top Side, Lh[04.1991 - 09.1994] EL44 |
55714-16060 |
US $53 |
||
|
55714A
|
55714A
55714-16060 Panel, Cowl Top Side, Lh[09.1994 - 08.1995] EL44 |
55714-16060 |
US $53 |
||
|
55783B
|
55783B
55708-16060 Louver, Cowl Top Ventilator, Center No.1COWL TOP VENTILATOR, CENTER NO.1 [04.1991 - 08.1995] EL44..USA |
55708-16060 |
US $106.29 |
||
|
55783B
|
55783B
55708-16070 Louver, Cowl Top Ventilator, Center No.1COWL TOP VENTILATOR, CENTER NO.1 [04.1991 - 08.1995] EL44..CND; EL44..USA COLD AREA PACKAGE |
55708-16070 |
US $113.57 |
||
|
55783B
|
55783B
55783-16060 Louver, Cowl Top Ventilator, Center No.1COWL TOP VENTILATOR, CENTER NO.1 [04.1991 - 08.1995] EL44 |
55783-16060 |
US $10.19 |
||
|
55784B
|
55784B
55783-16060 Louver, Cowl Top Ventilator, Center No.1COWL TOP VENTILATOR, CENTER NO.1 [01.1991 - 08.1995] EL44 |
55783-16060 |
US $10.19 |
||
|
55788A
|
55788A
55788-16080 Protector, Cowl Top Ventilator Louver[04.1991 - 08.1995] EL44 |
55788-16080 |
US $6.26 |
||
|
55877B
|
55877B
55877-16020
Cover, Cowl Vent, Rh
[04.1991 - 08.1995] EL44 |
55877-16020 |
— | ||
|
56111
|
56111
56111-16290
Glass, Windshield
[04.1991 - 08.1992] EL44..USA *LAM,T=4.7,BLUE; EL44..CND *LAM,T=4.7,BLUE |
56111-16290 |
— | ||
| replacement | |||||
|
56111
|
56111
56111-16291
Glass, Windshield
[04.1991 - 08.1992] EL44..USA *LAM,T=4.7,BLUE; EL44..CND *LAM,T=4.7,BLUE |
56111-16291 |
— | ||
|
56111
|
56111
56111-16291
Glass, Windshield
[08.1992 - 01.1993] EL44..USA *LAM,T=4.7,BLUE; EL44..CND *LAM,T=4.7,BLUE |
56111-16291 |
— | ||
|
56111
|
56111
56111-16380
Glass, Windshield
[09.1994 - 08.1995] EL44 *LAM,T=4.7,BLUE |
56111-16380 |
— | ||
|
56116
|
56116
56116-16040 Spacer, Windshield Glass[04.1991 - 08.1993] EL44 |
56116-16040 |
US $4.37 |
||
| replacement | |||||
|
56116
|
56116
56116-16041 Spacer, Windshield Glass[04.1991 - 08.1993] EL44 |
56116-16041 |
US $4.37 |
||
|
56116
|
56116
56116-16041 Spacer, Windshield Glass[08.1993 - 08.1995] EL44 |
56116-16041 |
US $4.37 |
||
|
56126
|
56126
56126-16030 Spacer, Windshield Glass, No.2[04.1991 - 03.1992] EL44 RH |
56126-16030 |
US $3.93 |
||
| replacement | |||||
|
56126
|
56126
56126-16032 Spacer, Windshield Glass, No.2[04.1991 - 03.1992] EL44 RH |
56126-16032 |
US $3.93 |
||
|
56126
|
56126
56126-16031 Spacer, Windshield Glass, No.2[03.1992 - 08.1993] EL44 RH |
56126-16031 |
US $3.93 |
||
| replacement | |||||
|
56126
|
56126
56126-16032 Spacer, Windshield Glass, No.2[03.1992 - 08.1993] EL44 RH |
56126-16032 |
US $3.93 |
||
|
56126
|
56126
56126-16032 Spacer, Windshield Glass, No.2[08.1993 - 08.1995] EL44 RH |
56126-16032 |
US $3.93 |
||
|
56126
|
56126
56127-16020 Spacer, Windshield Glass, No.2[04.1991 - 03.1992] EL44 LH |
56127-16020 |
US $4.37 |
||
| replacement | |||||
|
56126
|
56126
56127-16022 Spacer, Windshield Glass, No.2[04.1991 - 03.1992] EL44 LH |
56127-16022 |
US $3.93 |
||
|
56126
|
56126
56127-16021 Spacer, Windshield Glass, No.2[03.1992 - 08.1993] EL44 LH |
56127-16021 |
US $3.93 |
||
| replacement | |||||
|
56126
|
56126
56127-16022 Spacer, Windshield Glass, No.2[03.1992 - 08.1993] EL44 LH |
56127-16022 |
US $3.93 |
||
|
56126
|
56126
56127-16022 Spacer, Windshield Glass, No.2[08.1993 - 08.1995] EL44 LH |
56127-16022 |
US $3.93 |
||
|
9016740045
|
9016740045
90167-40045 SCREW |
90167-40045 |
from US $0.86 |
||
|
9016740050
|
9016740050
90167-40050 New Genuine Part |
90167-40050 |
US $1.12 |
||
|
9018904130
|
9018904130
90189-04130 GROMMET SCREW |
90189-04130 |
from US $1.05 |
||
|
9018904184
|
9018904184
90189-04184 GROMMET SCREW |
90189-04184 |
US $2.08 |
||
|
9033315002
|
9033315002
90333-15002 PLUG |
90333-15002 |
from US $1.44 |
||
|
9046706131
|
9046706131
90467-06131 New Genuine Part |
90467-06131 |
US $2.62 |
||
| replacement | |||||
|
9046706131
|
9046706131
90467-06131-B2 Clip |
90467-06131-B2 |
US $1.22 |
||
