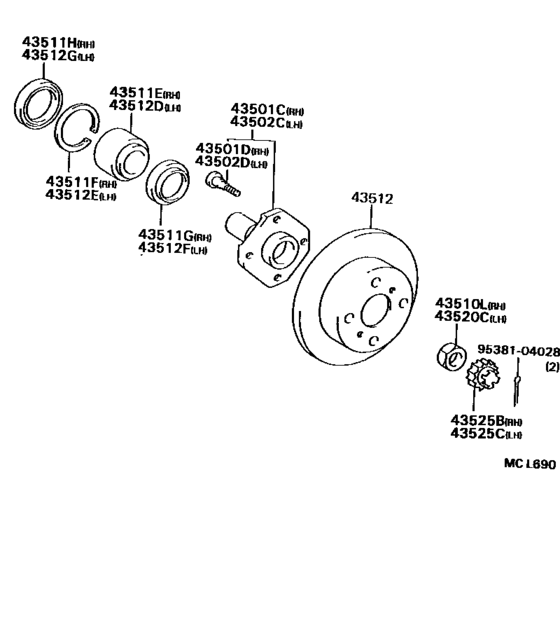

Front Axle Hub ([04.1991 - ] (9104- )) Diagram Toyota PASEO
- Year
- 1991 - 1995
- Sales region
- U.S.A.
- Frame
- EL44
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- PASEO
- From
- 04.1991
- To
- 08.1995
- Vehicle Model
- PASEO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43501C
|
43501C
43502-16040 Hub Sub-Assy, Front Axle[04.1991 - 08.1995] EL44 |
43502-16040 |
US $122.30 |
||
|
43501D
|
43501D
90942-02047 Bolt, Hub[04.1991 - 08.1995] EL44 |
90942-02047 |
from US $3.68 |
||
|
43502C
|
43502C
43502-16040 Hub Sub-Assy, Front Axle[04.1991 - 08.1995] EL44 |
43502-16040 |
US $122.30 |
||
|
43502D
|
43502D
90942-02047 Bolt, Hub[04.1991 - 08.1995] EL44 |
90942-02047 |
from US $3.68 |
||
|
43510L
|
43510L
90179-22020 Nut (For Rear Axle Shaft)[04.1991 - 08.1995] EL44 |
90179-22020 |
from US $2.34 |
||
|
43511E
|
43511E
90369-38006 Bearing (For Front Axle Hub)[04.1991 - 08.1995] EL44 |
90369-38006 |
US $51.89 |
||
|
43511F
|
43511F
90521-77001 Ring, Hole Snap (For Front Axle Hub)[04.1991 - 08.1995] EL44 |
90521-77001 |
US $4.80 |
||
|
43511G
|
43511G
90311-54003 Seal, Oil (For Front Axle Hub)[04.1991 - 08.1995] EL44 |
90311-54003 |
US $5.60 |
||
|
43511H
|
43511H
90311-56016 Seal, Oil (For Front Axle Hub Inner Rh)[04.1991 - 08.1995] EL44 |
90311-56016 |
US $5.07 |
||
|
43511H
|
43511H
90311-56017 Seal, Oil (For Front Axle Hub Inner Rh)[08.1992 - 08.1995] EL44 W(*66) |
90311-56017 |
from US $6.29 |
||
|
43512
|
43512
43512-16080 Disc, Front[04.1991 - 08.1995] EL44 |
43512-16080 |
US $170.35 |
||
| replacement | |||||
|
43512
|
43512
43512-16130
Disc, Front
[04.1991 - 08.1995] EL44 |
43512-16130 |
— | ||
|
43512D
|
43512D
90369-38006 Bearing (For Front Axle Hub)[04.1991 - 08.1995] EL44 |
90369-38006 |
US $51.89 |
||
|
43512E
|
43512E
90521-77001 Ring, Hole Snap (For Front Axle Hub)[04.1991 - 08.1995] EL44 |
90521-77001 |
US $4.80 |
||
|
43512F
|
43512F
90311-54003 Seal, Oil (For Front Axle Hub)[04.1991 - 08.1995] EL44 |
90311-54003 |
US $5.60 |
||
|
43512G
|
43512G
90311-56016 Seal, Oil (For Front Axle Hub Inner Rh)[04.1991 - 08.1995] EL44 |
90311-56016 |
US $5.07 |
||
|
43512G
|
43512G
90311-56017 Seal, Oil (For Front Axle Hub Inner Rh)[08.1992 - 08.1995] EL44 W(*66) |
90311-56017 |
from US $6.29 |
||
|
43520C
|
43520C
90179-22020 Nut (For Rear Axle Shaft)[04.1991 - 08.1995] EL44 |
90179-22020 |
from US $2.34 |
||
|
43525B
|
43525B
43525-20030 Cap, Front Wheel Adjusting Lock[04.1991 - 08.1995] EL44 |
43525-20030 |
from US $2.91 |
||
|
43525C
|
43525C
43525-20030 Cap, Front Wheel Adjusting Lock[04.1991 - 08.1995] EL44 |
43525-20030 |
from US $2.91 |
||
|
9538104028
|
9538104028
95381-04028 PIN |
95381-04028 |
US $1.92 |
||
