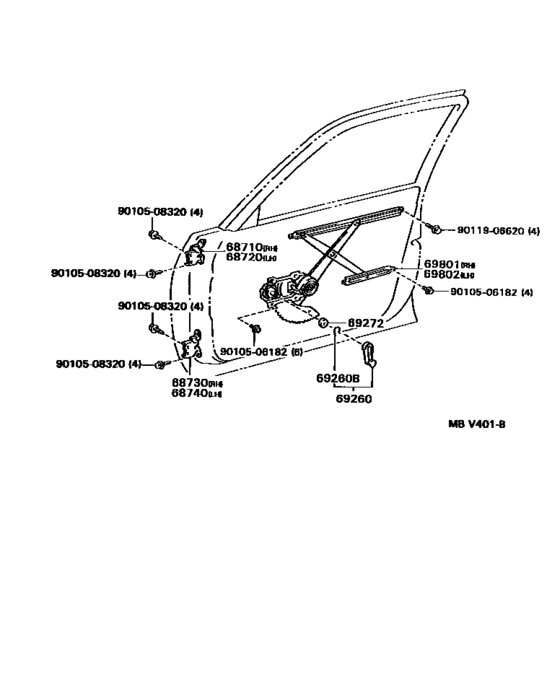

Front Door Window Regulator & Hinge ([04.1991 - ] (9104- )) Diagram Toyota PASEO
- Year
- 1991 - 1995
- Sales region
- U.S.A.
- Frame
- EL44
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- PASEO
- From
- 04.1991
- To
- 08.1995
- Vehicle Model
- PASEO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-16040 Hinge Assy, Front Door, Upper Rh[04.1991 - 08.1992] EL44 |
68710-16040 |
US $44.41 |
||
| replacement | |||||
|
68710
|
68710
68710-16050 Hinge Assy, Front Door, Upper Rh[04.1991 - 08.1992] EL44 |
68710-16050 |
US $44.41 |
||
|
68710
|
68710
68710-16041 Hinge Assy, Front Door, Upper Rh[06.1994 - 08.1995] EL44 |
68710-16041 |
US $44.41 |
||
|
68710
|
68710
68710-16050 Hinge Assy, Front Door, Upper Rh[08.1992 - 06.1994] EL44 |
68710-16050 |
US $44.41 |
||
|
68720
|
68720
68720-16040
Hinge Assy, Front Door, Upper Lh
[04.1991 - 08.1992] EL44 |
68720-16040 |
— | ||
| replacement | |||||
|
68720
|
68720
68720-16050
Hinge Assy, Front Door, Upper Lh
[04.1991 - 08.1992] EL44 |
68720-16050 |
— | ||
|
68720
|
68720
68720-16041 Hinge Assy, Front Door, Upper Lh[06.1994 - 08.1995] EL44 |
68720-16041 |
US $44.41 |
||
|
68720
|
68720
68720-16050
Hinge Assy, Front Door, Upper Lh
[08.1992 - 06.1994] EL44 |
68720-16050 |
— | ||
|
68730
|
68730
68730-16050 Hinge Assy, Front Door, Lower Rh[04.1991 - 08.1992] EL44 |
68730-16050 |
US $44.41 |
||
| replacement | |||||
|
68730
|
68730
68730-16051 Hinge Assy, Front Door, Lower Rh[04.1991 - 08.1992] EL44 |
68730-16051 |
US $44.41 |
||
|
68730
|
68730
68730-16051 Hinge Assy, Front Door, Lower Rh[03.1994 - 08.1995] EL44 |
68730-16051 |
US $44.41 |
||
|
68730
|
68730
68730-16070 Hinge Assy, Front Door, Lower Rh[08.1992 - 10.1992] EL44 |
68730-16070 |
US $44.41 |
||
| replacement | |||||
|
68730
|
68730
68730-16051 Hinge Assy, Front Door, Lower Rh[08.1992 - 10.1992] EL44 |
68730-16051 |
US $44.41 |
||
|
68740
|
68740
68740-16050 Hinge Assy, Front Door, Lower Lh[04.1991 - 08.1992] EL44 |
68740-16050 |
US $44.41 |
||
| replacement | |||||
|
68740
|
68740
68740-16051 Hinge Assy, Front Door, Lower Lh[04.1991 - 08.1992] EL44 |
68740-16051 |
US $44.41 |
||
|
68740
|
68740
68740-16051 Hinge Assy, Front Door, Lower Lh[03.1994 - 08.1995] EL44 |
68740-16051 |
US $44.41 |
||
|
68740
|
68740
68740-16070 Hinge Assy, Front Door, Lower Lh[08.1992 - 10.1992] EL44 |
68740-16070 |
US $44.41 |
||
| replacement | |||||
|
68740
|
68740
68740-16051 Hinge Assy, Front Door, Lower Lh[08.1992 - 10.1992] EL44 |
68740-16051 |
US $44.41 |
||
|
69260
|
69260
69260-16010-01
Handle Assy, Front Door Window Regulator
[04.1991 - 08.1992] EL44 BLACK,TRIM2# |
69260-16010-01 |
— | ||
| replacement | |||||
|
69260
|
69260
69260-16010-22 Handle Assy, Door Window Regulator (Black)[04.1991 - 08.1992] EL44 BLACK,TRIM2# |
69260-16010-22 |
from US $13.75 |
||
|
69260
|
69260
69260-16010-04 Handle Assy, Front Door Window Regulator[04.1991 - 08.1992] EL44 GRAYISH BLUE,TRIM8# |
69260-16010-04 |
US $21.69 |
||
| replacement | |||||
|
69260
|
69260
69260-16010-22 Handle Assy, Door Window Regulator (Black)[04.1991 - 08.1992] EL44 GRAYISH BLUE,TRIM8# |
69260-16010-22 |
from US $13.75 |
||
|
69260
|
69260
69260-16010-22 Handle Assy, Door Window Regulator (Black)[08.1992 - 08.1995] EL44 BLACK,TRIM2# |
69260-16010-22 |
from US $13.75 |
||
|
69260
|
69260
69260-16010-W4 Handle Assy, Front Door Window Regulator[08.1992 - 09.1994] EL44 EISEN BLUE,TRIM8# |
69260-16010-W4 |
US $21.55 |
||
| replacement | |||||
|
69260
|
69260
69260-16010-22 Handle Assy, Door Window Regulator (Black)[08.1992 - 09.1994] EL44 EISEN BLUE,TRIM8# |
69260-16010-22 |
from US $13.75 |
||
|
69260B
|
69260B
90520-01002
Ring, Shaft Snap(For Vent Window Control)
[04.1991 - 08.1995] EL44 |
90520-01002 |
— | ||
| replacement | |||||
|
69260B
|
69260B
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[04.1991 - 08.1995] EL44 |
90520-01274 |
from US $0.99 |
||
|
69272
|
69272
69268-20020
Plate, Window Regulator Handle
[04.1991 - 08.1995] EL44 |
69268-20020 |
— | ||
| replacement | |||||
|
69272
|
69272
69285-22010-08 Escutcheon, Window Regulator Handle[04.1991 - 08.1995] EL44 |
69285-22010-08 |
from US $1.93 |
||
|
69801
|
69801
69810-16100 Regulator Sub-Assy, Front Door Window, Rh[04.1991 - 08.1992] EL44 |
69810-16100 |
US $84.45 |
||
|
69801
|
69801
69810-16101 Regulator Sub-Assy, Front Door Window, Rh[08.1992 - 08.1995] EL44 |
69810-16101 |
US $84.45 |
||
|
69802
|
69802
69820-16100
Regulator Sub-Assy, Front Door Window, Lh
[04.1991 - 08.1992] EL44 |
69820-16100 |
— | ||
|
69802
|
69802
69820-16101 Regulator Sub-Assy, Front Door Window, Lh[08.1992 - 08.1995] EL44 |
69820-16101 |
US $84.45 |
||
|
9010506182
|
9010506182
90105-06182 New Genuine Part |
90105-06182 |
US $1.60 |
||
| replacement | |||||
|
9010506182
|
9010506182
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.25 |
||
|
9010508320
|
9010508320
90105-08320 BOLT WASHER BASED |
90105-08320 |
US $1.44 |
||
|
9011906620
|
9011906620
90119-06620 BOLT WWASHER |
90119-06620 |
US $1.92 |
||
