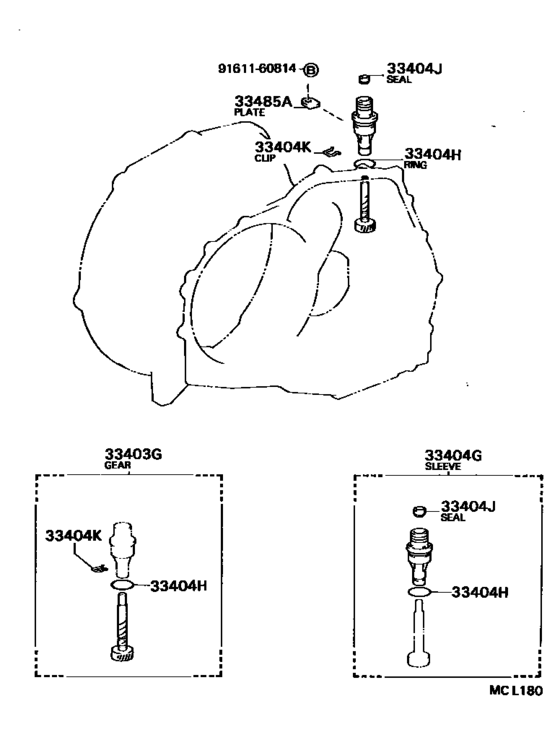

Speedometer Driven Gear (Atm) ([04.1991 - ] A244E (9104- )ATM) Diagram Toyota PASEO
- Year
- 1991 - 1995
- Sales region
- U.S.A.
- Frame
- EL44
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- DESTINATION
- USA
- Model
- PASEO
- From
- 04.1991
- To
- 08.1995
- Vehicle Model
- PASEO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33403G
|
33403G
33403-19385 Gear Sub-Assy, Speedometer Driven (Mtm)[04.1991 - 08.1995] EL44..ATM N=30,MARK 30:34 |
33403-19385 |
from US $25.16 |
||
|
33404G
|
33404G
33404-12030 Sleeve Sub-Assy, Speedometer Shaft (Mtm)[04.1991 - 08.1995] EL44..ATM |
33404-12030 |
US $20.62 |
||
|
33404H
|
33404H
96711-24030 Ring,o (For Speedometer Driven Hole Cover)[04.1991 - 08.1995] EL44..ATM |
96711-24030 |
from US $2.32 |
||
|
33404J
|
33404J
90310-09001 Seal, Oil (For Mtm Speedometer Shaft Sleeve)[04.1991 - 08.1995] EL44..ATM |
90310-09001 |
from US $2.56 |
||
|
33404K
|
33404K
90468-12005 Clip (For Mtm Speedometer Shaft Sleeve)[04.1991 - 08.1995] EL44..ATM |
90468-12005 |
US $1.44 |
||
|
33485A
|
33485A
33485-30020 Plate, Speedometer Sleeve Lock (For Atm)[04.1991 - 08.1995] EL44..ATM |
33485-30020 |
from US $1.89 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
