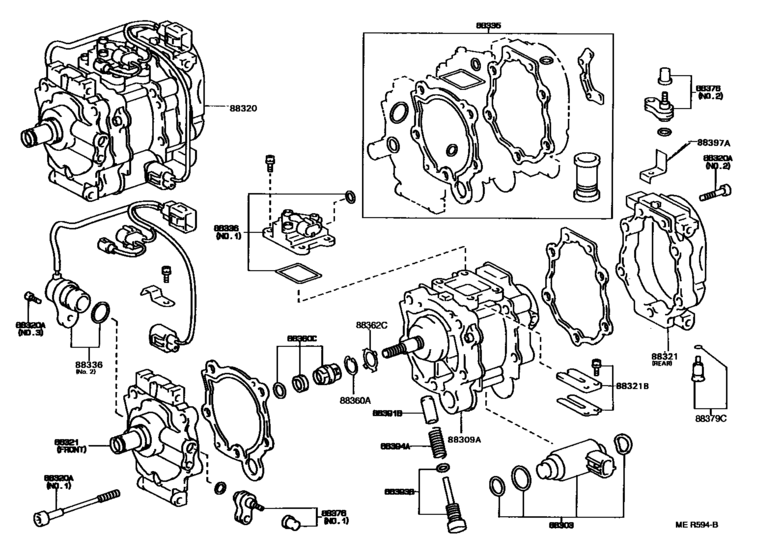

Heating & Air Conditioning - Compressor ([04.1991 - ] (9104- )) Diagram Toyota PASEO
- Year
- 1991 - 1995
- Sales region
- General
- Frame
- EL44
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- Model
- PASEO
- From
- 04.1991
- To
- 08.1995
- Vehicle Model
- PASEO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88309A
|
88309A
88309-12010
Pump Sub-Assy, Compressor
[04.1991 - 06.1992] EL44..MTM |
88309-12010 |
— | ||
|
88309A
|
88309A
88309-12030
Pump Sub-Assy, Compressor
[06.1992 - 08.1993] EL44..MTM |
88309-12030 |
— | ||
|
88309A
|
88309A
88309-12110
Pump Sub-Assy, Compressor
[08.1993 - 08.1995] EL44..MTM |
88309-12110 |
— | ||
|
88320
|
88320
88320-16230
Compressor Assy, Cooler
[04.1991 - 06.1992] EL44..MTM |
88320-16230 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-16350
Compressor Assy, Cooler
[04.1991 - 06.1992] EL44..MTM |
88320-16350 |
— | ||
|
88320
|
88320
88320-16241
Compressor Assy, Cooler
[08.1993 - 08.1995] EL44..MTM |
88320-16241 |
— | ||
|
88320
|
88320
88320-16350
Compressor Assy, Cooler
[06.1992 - 08.1993] EL44..MTM |
88320-16350 |
— | ||
|
88320A
|
88320A
88329-16010
Bolt, Through
[04.1991 - 08.1995] EL44 NO.1 |
88329-16010 |
— | ||
|
88320A
|
88320A
88329-16020
Bolt, Through
[04.1991 - 08.1995] EL44 NO.2 |
88329-16020 |
— | ||
|
88320A
|
88320A
88329-16030
Bolt, Through
[04.1991 - 08.1995] EL44 NO.3 |
88329-16030 |
— | ||
|
88321
|
88321
88321-12130
Head, Cooler Compressor Cylinder
[08.1993 - 08.1995] EL44..MTM FR |
88321-12130 |
— | ||
|
88321
|
88321
88321-16040
Head, Cooler Compressor Cylinder
[04.1991 - 08.1993] EL44..MTM FR |
88321-16040 |
— | ||
|
88321
|
88321
88322-12060
Case, Oil Separator
[04.1991 - 08.1993] EL44..MTM RR |
88322-12060 |
— | ||
|
88321
|
88321
88322-12100
Head, Cooler Compressor Cylinder
[08.1993 - 08.1995] EL44..MTM RR |
88322-12100 |
— | ||
|
88321B
|
88321B
88307-12050
Reed Sub-Assy, Valve
[04.1991 - 08.1995] EL44 |
88307-12050 |
— | ||
|
88335
|
88335
88335-12110
Gasket Kit, Overhaul
[08.1993 - 08.1995] EL44..MTM |
88335-12110 |
— | ||
|
88335
|
88335
88335-16050
Gasket Kit, Overhaul
[04.1991 - 08.1993] EL44..MTM |
88335-16050 |
— | ||
|
88336
|
88336
88336-16010
Sensor, Compressor
[04.1991 - 08.1995] EL44 NO.1 |
88336-16010 |
— | ||
|
88336
|
88336
88336-16030
Sensor, Compressor
[04.1991 - 08.1993] EL44..MTM NO.2 |
88336-16030 |
— | ||
|
88336
|
88336
88336-16050
Sensor, Compressor
[08.1993 - 08.1995] EL44..MTM NO.2 |
88336-16050 |
— | ||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[08.1993 - 08.1995] EL44 |
90096-90022 |
— | ||
|
88360C
|
88360C
88360-12100 Seal Assy, ShaftSHAFT [08.1993 - 08.1995] EL44 |
88360-12100 |
US $86.35 |
||
|
88360C
|
88360C
88360-16010
Seal, Shaft
[04.1991 - 08.1993] EL44 |
88360-16010 |
— | ||
|
88362C
|
88362C
88362-12020
Plate, Pulse
[08.1993 - 08.1995] EL44 |
88362-12020 |
— | ||
|
88376
|
88376
88376-12010 Cap, BlindBLIND [08.1993 - 08.1995] EL44 NO.1 |
88376-12010 |
US $6.18 |
||
|
88376
|
88376
88376-12020 Cap, BlindBLIND [08.1993 - 08.1995] EL44 NO.2 |
88376-12020 |
US $6.18 |
||
|
88376
|
88376
88376-16020
Valve, Suction
[04.1991 - 08.1993] EL44 NO.1 |
88376-16020 |
— | ||
|
88376
|
88376
88376-16030
Valve, Discharge
[04.1991 - 06.1992] EL44 NO.2 |
88376-16030 |
— | ||
|
88376
|
88376
88376-16040
Cap, Blind
[06.1992 - 08.1993] EL44 NO.2 |
88376-16040 |
— | ||
|
88379C
|
88379C
88379-12050
Valve, Pressure Relief
[08.1993 - 08.1995] EL44 |
88379-12050 |
— | ||
|
88397A
|
88397A
88397-16030
Clip, Compressor
[04.1991 - 08.1995] EL44 |
88397-16030 |
— | ||
