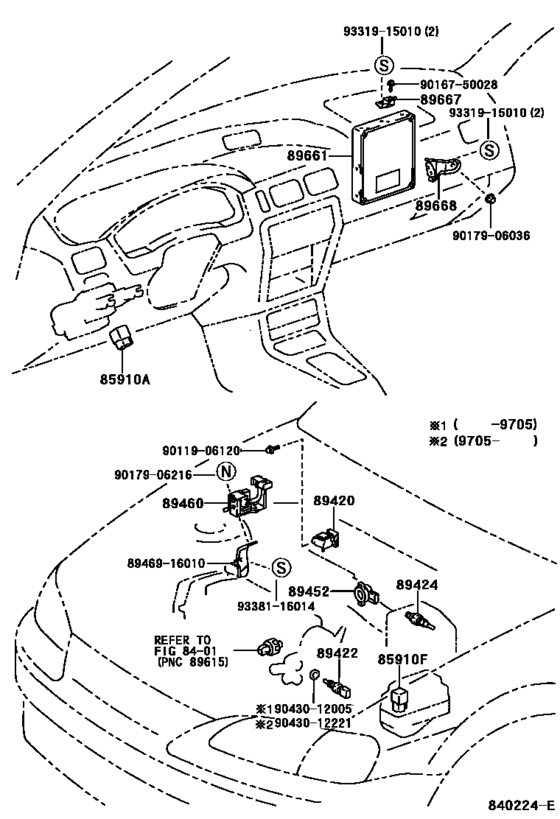

Electronic Fuel Injection System ([08.1995 - ] (9508- )) Diagram Toyota PASEO
- Year
- 1995 - 1999
- Sales region
- Europe
- Frame
- EL54
- body
- CP
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- PASEO
- From
- 08.1995
- To
- 07.1999
- Vehicle Model
- PASEO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90987-02009 Relay Assy[08.1995 -] EL54 |
90987-02009 |
from US $33.87 |
||
|
85910F
|
85910F
90987-02009 Relay Assy[08.1995 -] EL54 |
90987-02009 |
from US $33.87 |
||
|
89420
|
89420
89420-0W020 Sensor Assy, VacuumVACUUM [04.1996 - 12.1997] EL54 DELCO |
89420-0W020 |
US $126.67 |
||
|
89420
|
89420
89420-16060
Sensor Assy, Vacuum
[08.1995 - 04.1996] EL54 |
89420-16060 |
— | ||
|
89420
|
89420
89420-16090 Sensor Assy, VacuumVACUUM [12.1997 - 02.1998] EL54..CP |
89420-16090 |
US $126.67 |
||
|
89422
|
89422
89422-16010 Sensor, Water Temperature (For E.f.i.)[05.1997 -] EL54 DENSO |
89422-16010 |
from US $36.63 |
||
|
89422
|
89422
89422-20010 Sensor, Water Temperature (For E.f.i.)[08.1995 - 05.1997] EL54 |
89422-20010 |
from US $36.78 |
||
|
89422
|
89422
89422-22030 Sensor, Water Temperature (For E.f.i.)[05.1997 -] EL54 SAAMOSTA |
89422-22030 |
from US $52.51 |
||
|
89424
|
89424
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[08.1995 -] EL54 |
89424-12010 |
from US $57 |
||
|
89452
|
89452
89452-10040 Sensor, Throttle Position (For E.f.i.)[02.1997 - 08.1998] EL54 |
89452-10040 |
US $59.40 |
||
| replacement | |||||
|
89452
|
89452
89452-20130 Sensor, Throttle Position (For E.f.i.)[02.1997 - 08.1998] EL54 |
89452-20130 |
from US $66.88 |
||
|
89452
|
89452
89452-20130 Sensor, Throttle Position (For E.f.i.)[08.1996 - 02.1997] EL54 |
89452-20130 |
from US $66.88 |
||
|
89452
|
89452
89452-22090 Sensor, Throttle Position[08.1995 - 08.1996] EL54 |
89452-22090 |
from US $138.98 |
||
|
89460
|
89460
89460-16010
Sensor Assy, Vapor Pressure
[08.1996 -] EL54 |
89460-16010 |
— | ||
|
89661
|
89661
89661-16460 Computer, Engine ControlENGINE CONTROL [08.1995 - 12.1995] EL54..MTM |
89661-16460 |
US $1,557.92 |
||
| replacement | |||||
|
89661
|
89661
89661-16461 Computer, Engine ControlENGINE CONTROL [08.1995 - 12.1995] EL54..MTM |
89661-16461 |
US $1,557.92 |
||
|
89661
|
89661
89661-16461 Computer, Engine ControlENGINE CONTROL [12.1995 - 08.1996] EL54..MTM |
89661-16461 |
US $1,557.92 |
||
|
89661
|
89661
89661-16530
Computer, Engine Control
[08.1996 - 09.1997] EL54..MTM |
89661-16530 |
— | ||
|
89661
|
89661
89661-16531
Computer, Engine Control
[09.1997 - 12.1997] EL54..MTM |
89661-16531 |
— | ||
|
89661
|
89661
89661-16620
Computer, Engine Control
[12.1997 - 02.1998] EL54..CP..MTM |
89661-16620 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-16621
Computer, Engine Control
[12.1997 - 02.1998] EL54..CP..MTM |
89661-16621 |
— | ||
|
89661
|
89661
89661-16621
Computer, Engine Control
[03.1998 - 08.1998] EL54..MTM |
89661-16621 |
— | ||
|
89661
|
89661
89661-16622
Computer, Engine Control
[08.1998 -] EL54..MTM |
89661-16622 |
— | ||
|
89667
|
89667
89667-16060
Bracket, Engine Control Computer
[08.1995 -] EL54 |
89667-16060 |
— | ||
|
89668
|
89668
89668-16050 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [08.1995 - 08.1996] EL54..MTM |
89668-16050 |
US $8.15 |
||
|
89668
|
89668
89668-16070
Bracket, Engine Control Computer, No.2
[12.1997 - 02.1998] EL54..CP |
89668-16070 |
— | ||
|
89668
|
89668
89668-16080 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [08.1996 - 12.1997] EL54 |
89668-16080 |
US $8.88 |
||
|
8946916010
|
8946916010
89469-16010 Bracket, Altitude Compensation Switch |
89469-16010 |
US $12.23 |
||
|
9011906120
|
9011906120
90119-06120 BOLT |
90119-06120 |
US $1.12 |
||
|
9016750028
|
9016750028
90167-50028
Direct
|
90167-50028 |
— | ||
| replacement | |||||
|
9016750028
|
9016750028
93568-55014 Screw |
93568-55014 |
from US $1.12 |
||
|
9017906036
|
9017906036
90179-06036
Nut, Cap(For Cylinder Head Cover)
|
90179-06036 |
— | ||
| replacement | |||||
|
9017906036
|
9017906036
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9017906216
|
9017906216
90179-06216
Direct
|
90179-06216 |
— | ||
| replacement | |||||
|
9017906216
|
9017906216
90179-06274 Nut |
90179-06274 |
from US $0.74 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9043012221
|
9043012221
90430-12221 Gasket |
90430-12221 |
from US $1.13 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9338116014
|
9338116014
93381-16014 New Genuine Part |
93381-16014 |
US $0.87 |
||
