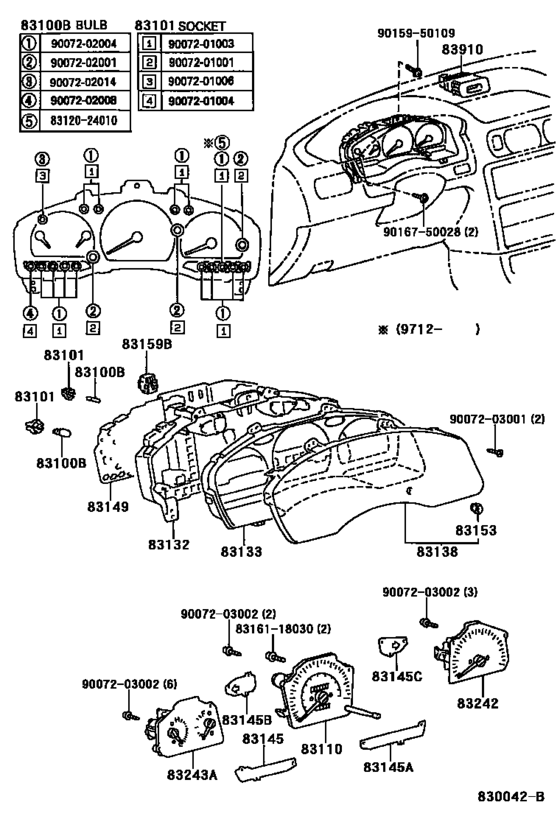

Meter ([08.1995 - ] W(TACHOMETER) (9508- )) Diagram Toyota PASEO
- Year
- 1995 - 1999
- Sales region
- Europe
- Frame
- EL54
- body
- CP
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- Model
- PASEO
- From
- 08.1995
- To
- 07.1999
- Vehicle Model
- PASEO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83120-24010
Bulb, Combination Meter, No.1
[12.1997 - 02.1998] EL54..CP 13.5V,W(SOCKET),NO.5 |
83120-24010 |
— | ||
|
83100B
|
83100B
90072-02001 Bulb, Combination Meter, No.1[08.1995 -] EL54 12V 3.4W,GREEN CAP,NO.2 |
90072-02001 |
US $3.84 |
||
|
83100B
|
83100B
90072-02004 Bulb, Combination Meter, No.1[12.1997 -] EL54..CP..USA 14V 1.1W,PUERTORICO SPEC,NO.1 |
90072-02004 |
US $4 |
||
|
83100B
|
83100B
90072-02008 Bulb, Combination Meter, No.1[08.1995 -] EL54 14V 3.0W,NO.4 |
90072-02008 |
US $1.14 |
||
|
83100B
|
83100B
90072-02014 Bulb, Combination Meter, No.1[08.1995 -] EL54 14V 1.4W,GREEN CAP,NO.3 |
90072-02014 |
US $1.89 |
||
|
83101
|
83101
90072-01001 Socket Sub-Assy, Combination Meter Bulb[08.1995 -] EL54 NO.2 |
90072-01001 |
US $3.79 |
||
|
83101
|
83101
90072-01003 Socket Sub-Assy, Combination Meter Bulb[12.1997 -] EL54..CP..USA PUERTORICO SPEC,NO.1 |
90072-01003 |
US $7.36 |
||
|
83101
|
83101
90072-01004 Socket Sub-Assy, Combination Meter Bulb[08.1995 -] EL54 NO.4 |
90072-01004 |
US $3.79 |
||
|
83101
|
83101
90072-01006 Socket Sub-Assy, Combination Meter Bulb[08.1995 -] EL54 NO.3 |
90072-01006 |
US $3.79 |
||
|
83110
|
83110
83220-16020 Speedometer Assy[08.1995 - 12.1997] EL54..USA |
83220-16020 |
US $445.54 |
||
|
83110
|
83110
83220-16220 Speedometer Assy[12.1997 - 02.1998] EL54..CP..USA |
83220-16220 |
US $448.45 |
||
|
83132
|
83132
83132-1G060
Case, Combination Meter
[08.1995 -] EL54 |
83132-1G060 |
— | ||
|
83133
|
83133
83133-1G020 Plate, Combination Meter, No.1[08.1995 -] EL54 |
83133-1G020 |
US $55.18 |
||
|
83138
|
83138
83138-1G020
Glass, Speedometer
[08.1995 -] EL54 |
83138-1G020 |
— | ||
|
83145
|
83145
83831-16030 Lens, Meter, No.1METER, NO.1 [08.1995 -] EL54..USA |
83831-16030 |
US $7.72 |
||
|
83145A
|
83145A
83145-1G180 Lens, Meter, No.2[08.1995 -] EL54 |
83145-1G180 |
US $7.72 |
||
|
83145B
|
83145B
83145-1G220 Lens, Meter, No.3[08.1995 -] EL54 |
83145-1G220 |
US $7.72 |
||
|
83145C
|
83145C
83835-16030 Lens, Meter, No.4METER, NO.4 [08.1995 -] EL54..USA |
83835-16030 |
US $7.72 |
||
|
83149
|
83149
83861-16030 Plate, Meter CircuitMETER CIRCUIT [08.1995 -] EL54 |
83861-16030 |
US $57.80 |
||
|
83149
|
83149
83861-16040 Plate, Meter CircuitMETER CIRCUIT [08.1995 -] EL54..CP..USA PUERTORICO SPEC |
83861-16040 |
US $57.80 |
||
|
83153
|
83153
83153-1G020 Grommet, Meter Glass[08.1995 -] EL54 |
83153-1G020 |
US $4.22 |
||
|
83159B
|
83159B
83159-22170 Switch, Meter, No.1[08.1995 -] EL54 |
83159-22170 |
US $54.69 |
||
|
83242
|
83242
83881-16030 Tachometer Assy, EngineENGINE [08.1995 - 12.1997] EL54..USA |
83881-16030 |
US $484.85 |
||
|
83242
|
83242
83881-16040 Tachometer Assy, EngineENGINE [08.1995 - 12.1997] EL54..CP..USA PUERTORICO SPEC |
83881-16040 |
US $505.23 |
||
|
83242
|
83242
83881-16440 Tachometer Assy, EngineENGINE [12.1997 - 02.1998] EL54..CP..USA |
83881-16440 |
US $484.85 |
||
|
83242
|
83242
83881-16450 Tachometer Assy, EngineENGINE [12.1997 -] EL54..CP..USA PUERTORICO SPEC |
83881-16450 |
US $496.50 |
||
|
83243A
|
83243A
83882-16010 Gauge Sub-Assy, Fuel Receiver[08.1995 - 12.1997] EL54 |
83882-16010 |
US $149.97 |
||
|
83243A
|
83243A
83882-16040 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [08.1995 - 12.1997] EL54..CP..USA PUERTORICO SPEC |
83882-16040 |
US $170.35 |
||
|
83243A
|
83243A
83882-16440 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [12.1997 - 02.1998] EL54..CP |
83882-16440 |
US $142.69 |
||
|
83243A
|
83243A
83882-16450 Gauge Sub-Assy, Fuel ReceiverFUEL RECEIVER [12.1997 -] EL54..CP..USA PUERTORICO SPEC |
83882-16450 |
US $142.69 |
||
|
83910
|
83910
83910-16200-B1 Clock Assy[08.1995 -] EL54 GRAY,TRIM1# |
83910-16200-B1 |
US $420.78 |
||
|
8316118030
|
8316118030
83161-18030 Case, Combination Meter Mirror, No.1 |
83161-18030 |
US $1.75 |
||
|
9007203001
|
9007203001
90072-03001 New Genuine Part |
90072-03001 |
US $0.87 |
||
|
9007203002
|
9007203002
90072-03002 New Genuine Part |
90072-03002 |
US $0.87 |
||
|
9015950109
|
9015950109
90159-50109 New Genuine Part |
90159-50109 |
US $2.33 |
||
|
9016750028
|
9016750028
90167-50028
Direct
|
90167-50028 |
— | ||
| replacement | |||||
|
9016750028
|
9016750028
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
