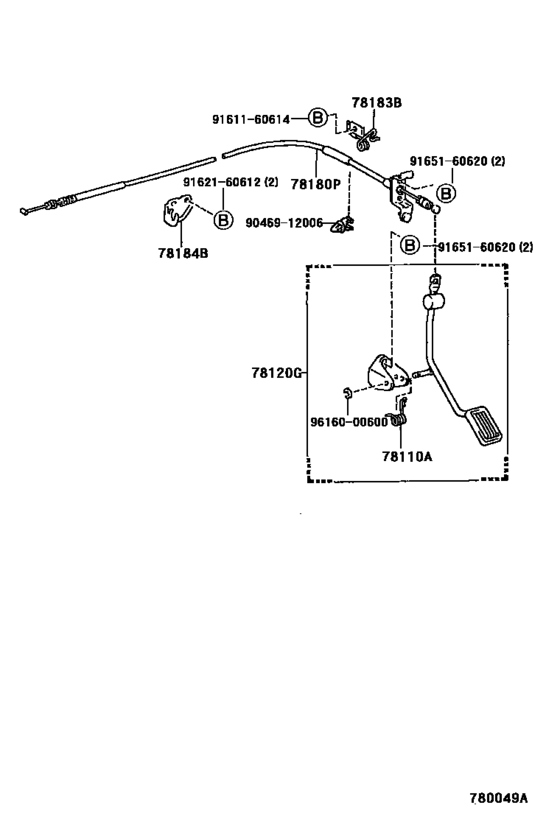

Accelerator Link ([08.1995 - ] (9508- )RHD) Diagram Toyota PASEO
- Year
- 1995 - 1999
- Sales region
- General
- Frame
- EL54
- body
- CP
- ENGINE
- 5EFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- Model
- PASEO
- From
- 08.1995
- To
- 07.1999
- Vehicle Model
- PASEO
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110A
|
78110A
90959-03007 Spring (For Accelerator Pedal Rod)[08.1995 -] EL54..RHD..MTM |
90959-03007 |
US $2.62 |
||
|
78120G
|
78120G
78120-16130 Rod Assy, Accelerator Pedal[08.1995 -] EL54..RHD..MTM |
78120-16130 |
US $40.91 |
||
|
78180P
|
78180P
78180-16410 Cable Assy, Accelerator ControlACCELERATOR CONTROL [08.1995 -] EL54..ARL |
78180-16410 |
US $58.24 |
||
|
78183B
|
78183B
78183-10061 Clamp, Accelerator Control Cable[08.1995 -] EL54..RHD |
78183-10061 |
US $7.43 |
||
|
78184B
|
78184B
78184-16070 Bracket, Accelerator Control Cable[08.1995 -] EL54 |
78184-16070 |
US $7.57 |
||
|
9046912006
|
9046912006
90469-12006 New Genuine Part |
90469-12006 |
US $3.49 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9165160620
|
9165160620
91651-60620 BOLTWWASHER |
91651-60620 |
from US $1.28 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
