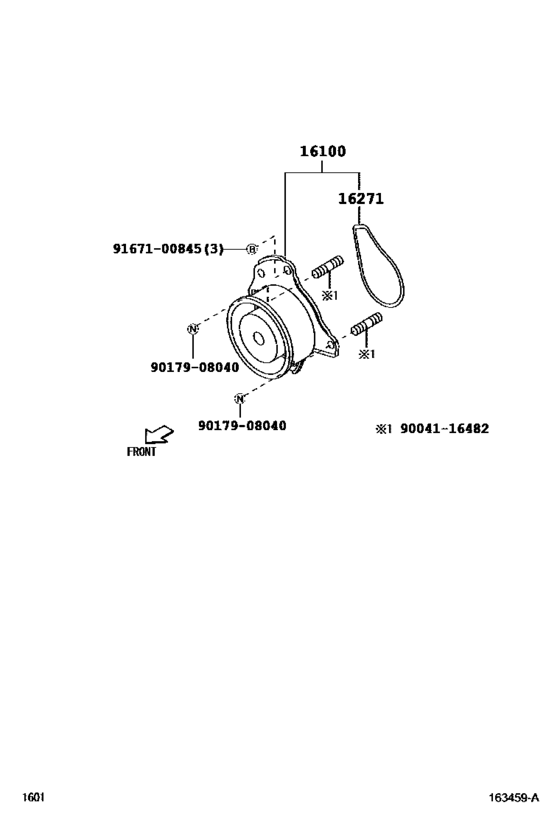

Water Pump ([09.2004 - 08.2005] (0409-0508)1KRFE) Diagram Toyota PASSO
- Year
- 2004 - 2010
- Sales region
- Japan
- Frame
- KGC10
- grade
- X
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 05.2004
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-80001 Pump Assy, Engine Water[01.2005 - 08.2005] 1KRFE..KGC1# |
16100-80001 |
US $126.67 |
||
| replacements | |||||
|
16100
|
16100
16100-80007 Pump Assy, Engine WaterWATER [01.2005 - 08.2005] 1KRFE..KGC1# |
16100-80007 |
from US $109.92 |
||
|
16100
|
16100
91551-00820 Bolt, Hexagon (For Rear Spring Seat Bolt)[01.2005 - 08.2005] 1KRFE..KGC1# |
91551-00820 |
US $1.43 |
||
|
16100
|
16100
91551-00845 Bolt (For Transfer Case)[01.2005 - 08.2005] 1KRFE..KGC1# |
91551-00845 |
US $1.79 |
||
|
16100
|
16100
91551-00850 Flange bolt[01.2005 - 08.2005] 1KRFE..KGC1# |
91551-00850 |
US $1.97 |
||
|
16100
|
16100
16100-80003 Pump Assy, Engine Water[08.2005 - 12.2006] 1KRFE..KGC1# |
16100-80003 |
US $115.02 |
||
| replacements | |||||
|
16100
|
16100
16100-80007 Pump Assy, Engine WaterWATER [08.2005 - 12.2006] 1KRFE..KGC1# |
16100-80007 |
from US $109.92 |
||
|
16100
|
16100
91551-00820 Bolt, Hexagon (For Rear Spring Seat Bolt)[08.2005 - 12.2006] 1KRFE..KGC1# |
91551-00820 |
US $1.43 |
||
|
16100
|
16100
91551-00845 Bolt (For Transfer Case)[08.2005 - 12.2006] 1KRFE..KGC1# |
91551-00845 |
US $1.79 |
||
|
16100
|
16100
91551-00850 Flange bolt[08.2005 - 12.2006] 1KRFE..KGC1# |
91551-00850 |
US $1.97 |
||
|
16100
|
16100
16100-80007 Pump Assy, Engine WaterWATER [11.2008 - 02.2010] 1KRFE..KGC1# |
16100-80007 |
from US $109.92 |
||
|
16100
|
16100
16100-97234 Pump Assy, Engine Water[05.2004 - 01.2005] 1KRFE..KGC1# |
16100-97234 |
US $126.67 |
||
| replacements | |||||
|
16100
|
16100
16100-80007 Pump Assy, Engine WaterWATER [05.2004 - 01.2005] 1KRFE..KGC1# |
16100-80007 |
from US $109.92 |
||
|
16100
|
16100
91551-00820 Bolt, Hexagon (For Rear Spring Seat Bolt)[05.2004 - 01.2005] 1KRFE..KGC1# |
91551-00820 |
US $1.43 |
||
|
16100
|
16100
91551-00845 Bolt (For Transfer Case)[05.2004 - 01.2005] 1KRFE..KGC1# |
91551-00845 |
US $1.79 |
||
|
16100
|
16100
91551-00850 Flange bolt[05.2004 - 01.2005] 1KRFE..KGC1# |
91551-00850 |
US $1.97 |
||
|
16271
|
16271
16271-40020 Gasket, Water Pump[05.2004 - 12.2006] 1KRFE..KGC1# |
16271-40020 |
US $7.88 |
||
|
9004116482
|
9004116482
90041-16482 New Genuine Part |
90041-16482 |
US $3.79 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.01 |
||
|
9167100845
|
9167100845
91671-00845 Bolt(For Alternator) |
91671-00845 |
US $1.38 |
||
