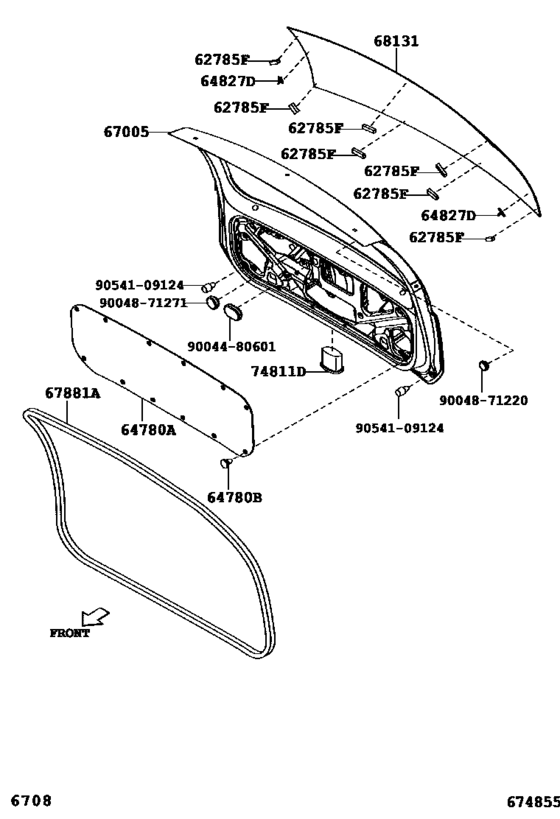

Back Door Panel & Glass ([12.2006 - 02.2010] (0612-1002)) Diagram Toyota PASSO
- Year
- 2006 - 2010
- Sales region
- Japan
- Frame
- KGC10
- grade
- RACY
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2006
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62785F
|
62785F
64818-87704 Spacer, Quarter Window Glass[12.2006 - 02.2010] KGC1#,QNC10 |
64818-87704 |
US $3.94 |
||
|
64780A
|
64780A
64780-B1010-S1 Panel Assy, Back Door Trim[12.2006 - 02.2010] KGC1#,QNC10 BS74,TRIM1# |
64780-B1010-S1 |
US $45.86 |
||
|
64780B
|
64780B
90044-68061-B1
Clip(For Back Door Trim Panel)
[12.2006 - 01.2010] KGC1#,QNC10 DK.GRAY,TRIM1# |
90044-68061-B1 |
— | ||
| replacement | |||||
|
64780B
|
64780B
90044-68061-C0 Clip(For Back Door Trim Panel)[12.2006 - 01.2010] KGC1#,QNC10 DK.GRAY,TRIM1# |
90044-68061-C0 |
US $2.87 |
||
|
64827D
|
64827D
64827-87701 Clip, Back Window Glass, Rh[12.2006 - 02.2010] KGC1#,QNC10 |
64827-87701 |
US $5.91 |
||
|
67005
|
67005
67005-B1050 Panel Sub-Assy, Back Door[12.2006 - 11.2007] KGC1#,QNC10..RACY |
67005-B1050 |
US $473.20 |
||
| replacement | |||||
|
67005
|
67005
67005-B1080 Panel Sub-Assy, Back Door[12.2006 - 11.2007] KGC1#,QNC10..RACY |
67005-B1080 |
US $521.25 |
||
|
67005
|
67005
67005-B1080 Panel Sub-Assy, Back Door[11.2007 - 02.2010] KGC1#,QNC10..RACY |
67005-B1080 |
US $521.25 |
||
|
67881A
|
67881A
67881-B1011 Weatherstrip, Back Door[12.2006 - 02.2010] KGC1#,QNC10 |
67881-B1011 |
US $147.60 |
||
|
68131
|
68131
68131-B1020
Glass, Back Door
[12.2006 - 02.2010] KGC1#,QNC10 ＊ＴＴ，厚さ＝３．１，クールグリーン |
68131-B1020 |
— | ||
|
74811D
|
74811D
74811-13010-C0
Pull Assy, Door, Inside
[12.2006 - 02.2010] KGC1#,QNC10 BLACK |
74811-13010-C0 |
— | ||
| replacement | |||||
|
74811D
|
74811D
7481113010C2 HANDLE DOOR PULL[12.2006 - 02.2010] KGC1#,QNC10 BLACK |
7481113010C2 |
from US $7.43 |
||
|
9004480601
|
9004480601
90044-80601 Grommet, Rear Washer Hose |
90044-80601 |
US $2.87 |
||
|
9004871220
|
9004871220
90048-71220 New Genuine Part |
90048-71220 |
US $1.65 |
||
|
9004871271
|
9004871271
90048-71271 New Genuine Part |
90048-71271 |
US $2.15 |
||
|
9054109124
|
9054109124
90541-09124 Cushion, Luggage Compartment Door |
90541-09124 |
from US $1.77 |
||
