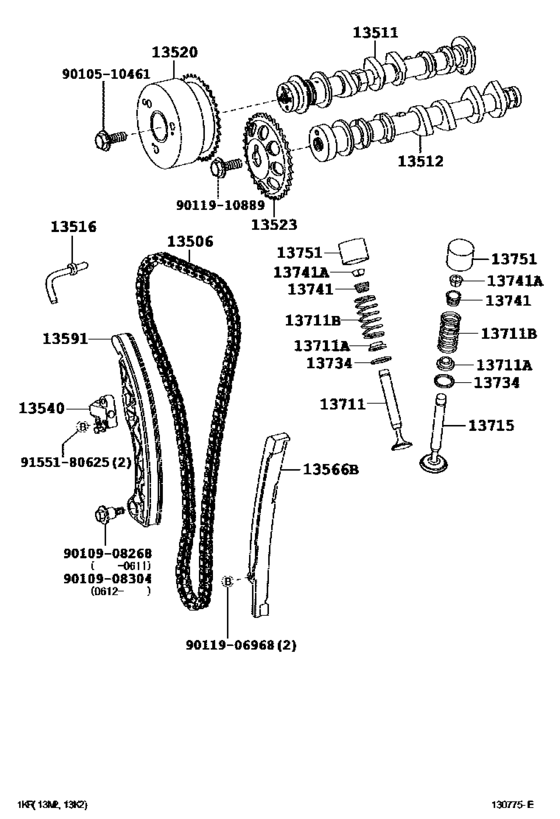

Camshaft & Valve ([05.2004 - 02.2010] (0405-1002)1KRFE) Diagram Toyota PASSO
- Year
- 2006 - 2010
- Sales region
- Japan
- Frame
- KGC10
- grade
- RACY
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2006
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13506
|
13506
13506-21020
Chain Sub-Assy
[12.2006 - 05.2008] 1KRFE..KGC1# １ＫＲ Ｅ／Ｇ ＮＯ ６２９２４０マデ |
13506-21020 |
— | ||
| replacements | |||||
|
13506
|
13506
13506-40020 Chain Sub-Assy[12.2006 - 05.2008] 1KRFE..KGC1# １ＫＲ Ｅ／Ｇ ＮＯ ６２９２４０マデ |
13506-40020 |
US $162.36 |
||
|
13506
|
13506
13506-21050 Chain Sub-Assy[12.2006 - 05.2008] 1KRFE..KGC1# １ＫＲ Ｅ／Ｇ ＮＯ ６２９２４０マデ |
13506-21050 |
from US $96.44 |
||
|
13506
|
13506
13506-40010
Chain Sub-Assy
[05.2008 - 02.2010] 1KRFE..KGC1# １ＫＲ Ｅ／Ｇ ＮＯ ６２９２４１カラ |
13506-40010 |
— | ||
| replacement | |||||
|
13506
|
13506
13506-40020 Chain Sub-Assy[05.2008 - 02.2010] 1KRFE..KGC1# １ＫＲ Ｅ／Ｇ ＮＯ ６２９２４１カラ |
13506-40020 |
US $162.36 |
||
|
13511
|
13511
13501-40040
Camshaft
[12.2006 - 02.2010] 1KRFE..KGC1# |
13501-40040 |
— | ||
| replacement | |||||
|
13511
|
13511
13501-40041 Camshaft[12.2006 - 02.2010] 1KRFE..KGC1# |
13501-40041 |
US $237.33 |
||
|
13512
|
13512
13502-40010 Camshaft, No.2[12.2006 - 02.2010] 1KRFE..KGC1# |
13502-40010 |
US $237.33 |
||
| replacement | |||||
|
13512
|
13512
13502-40011 Camshaft, No.2[12.2006 - 02.2010] 1KRFE..KGC1# |
13502-40011 |
US $237.33 |
||
|
13516
|
13516
13516-40010 Jet, Oil[12.2006 - 06.2008] 1KRFE..KGC1# |
13516-40010 |
US $4.80 |
||
|
13520
|
13520
13520-40020
Sprocket Assy, Camshaft Timing
[12.2006 - 02.2010] 1KRFE..KGC1# |
13520-40020 |
— | ||
| replacement | |||||
|
13520
|
13520
13520-40021 SPROCKET ASSY[12.2006 - 02.2010] 1KRFE..KGC1# |
13520-40021 |
US $147.60 |
||
|
13523
|
13523
13523-22020 Gear Or Sprocket, Camshaft Timing[12.2006 - 02.2010] 1KRFE..KGC1# |
13523-22020 |
from US $24.93 |
||
|
13540
|
13540
13540-21020 Tensioner Assy, Chain, No.1[12.2006 - 02.2010] 1KRFE..KGC1# |
13540-21020 |
from US $28.27 |
||
|
13566B
|
13566B
13566-40020
Guide, Timing Chain
[12.2006 - 02.2010] 1KRFE..KGC1# |
13566-40020 |
— | ||
| replacements | |||||
|
13566B
|
13566B
13566-40030
Guide, Timing Chain
[12.2006 - 02.2010] 1KRFE..KGC1# |
13566-40030 |
— | ||
|
13566B
|
13566B
13566-40031 GUIDE, TIMING CHAIN[12.2006 - 02.2010] 1KRFE..KGC1# |
13566-40031 |
from US $11.38 |
||
|
13591
|
13591
13591-40020 Arm, Timing Chain Tension[12.2006 - 02.2010] 1KRFE..KGC1# |
13591-40020 |
from US $26.01 |
||
|
13711
|
13711
13711-40040 Valve, Intake[12.2006 - 02.2010] 1KRFE..KGC1# |
13711-40040 |
US $15 |
||
| replacement | |||||
|
13711
|
13711
13711-40050 Valve, Intake[12.2006 - 02.2010] 1KRFE..KGC1# |
13711-40050 |
from US $9.73 |
||
|
13711A
|
13711A
90913-02092
Seal Or Ring, O(For Valve Stem Oil)
[12.2006 - 02.2010] 1KRFE..KGC1# エキゾースト側 |
90913-02092 |
— | ||
| replacement | |||||
|
13711A
|
13711A
90913-02128 Seal, Exhaust Valve Stem Oil[12.2006 - 02.2010] 1KRFE..KGC1# エキゾースト側 |
90913-02128 |
from US $4.84 |
||
|
13711A
|
13711A
90913-02093 Seal Or Ring, O(For Valve Stem Oil)[12.2006 - 02.2010] 1KRFE..KGC1# インテーク側 |
90913-02093 |
from US $5.02 |
||
|
13711B
|
13711B
90501-25063 Spring, Compression(For Inner)[12.2006 - 02.2010] 1KRFE..KGC1# 中央発條 |
90501-25063 |
US $2.04 |
||
|
13711B
|
13711B
90501-25064
Spring, Compression(For Inner)
[12.2006 - 02.2010] 1KRFE..KGC1# サンコール |
90501-25064 |
— | ||
|
13715
|
13715
13715-40040 Valve, Exhaust[12.2006 - 02.2010] 1KRFE..KGC1# |
13715-40040 |
US $22.28 |
||
| replacement | |||||
|
13715
|
13715
13715-40050 Valve, Exhaust[12.2006 - 02.2010] 1KRFE..KGC1# |
13715-40050 |
from US $15.60 |
||
|
13734
|
13734
13734-40010 Seat, Valve Spring[12.2006 - 02.2010] 1KRFE..KGC1# |
13734-40010 |
US $0.96 |
||
|
13741
|
13741
13741-22021 Retainer, Valve Spring[12.2006 - 02.2010] 1KRFE..KGC1# |
13741-22021 |
US $3.94 |
||
|
13741A
|
13741A
90913-03031 Lock, Valve Spring Retainer[12.2006 - 02.2010] 1KRFE..KGC1# |
90913-03031 |
from US $1.25 |
||
|
13751
|
13751
13751-23030 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．１２ |
13751-23030 |
US $19.15 |
||
|
13751
|
13751
13751-23040 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．１４ |
13751-23040 |
US $19.15 |
||
|
13751
|
13751
13751-23050 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．１６ |
13751-23050 |
US $11.97 |
||
|
13751
|
13751
13751-23060 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．１８ |
13751-23060 |
US $16.07 |
||
|
13751
|
13751
13751-23070 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．２０ |
13751-23070 |
US $19.15 |
||
|
13751
|
13751
13751-23080 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．２２ |
13751-23080 |
US $11.97 |
||
|
13751
|
13751
13751-23090 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．２４ |
13751-23090 |
US $11.97 |
||
|
13751
|
13751
13751-23100 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．２６ |
13751-23100 |
US $11.97 |
||
|
13751
|
13751
13751-23110 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．２８ |
13751-23110 |
US $11.97 |
||
|
13751
|
13751
13751-23120 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．３０ |
13751-23120 |
US $19.15 |
||
|
13751
|
13751
13751-23130 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．３２ |
13751-23130 |
US $19.15 |
||
|
13751
|
13751
13751-23140 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．３４ |
13751-23140 |
US $19.15 |
||
|
13751
|
13751
13751-23150 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．３６ |
13751-23150 |
US $19.15 |
||
|
13751
|
13751
13751-23160 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．３８ |
13751-23160 |
US $19.15 |
||
|
13751
|
13751
13751-23170 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．４０ |
13751-23170 |
US $19.15 |
||
|
13751
|
13751
13751-23180 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．４２ |
13751-23180 |
US $19.15 |
||
|
13751
|
13751
13751-23190 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．４４ |
13751-23190 |
US $19.15 |
||
|
13751
|
13751
13751-23200 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．４６ |
13751-23200 |
US $19.15 |
||
|
13751
|
13751
13751-23210 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．４８ |
13751-23210 |
US $19.15 |
||
|
13751
|
13751
13751-23220 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．５０ |
13751-23220 |
US $19.15 |
||
|
13751
|
13751
13751-23230 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．５２ |
13751-23230 |
US $11.97 |
||
|
13751
|
13751
13751-23240 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．５４ |
13751-23240 |
US $19.15 |
||
|
13751
|
13751
13751-23250 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．５６ |
13751-23250 |
US $19.15 |
||
|
13751
|
13751
13751-23260 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．５８ |
13751-23260 |
US $19.15 |
||
|
13751
|
13751
13751-23270 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．６０ |
13751-23270 |
US $19.15 |
||
|
13751
|
13751
13751-23280 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．６２ |
13751-23280 |
US $19.15 |
||
|
13751
|
13751
13751-23290 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．６４ |
13751-23290 |
US $11.97 |
||
|
13751
|
13751
13751-23300 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．６６ |
13751-23300 |
US $11.97 |
||
|
13751
|
13751
13751-23310 Lifter, Valve[12.2006 - 02.2010] 1KRFE..KGC1# 厚さ＝５．６８ |
13751-23310 |
from US $12.69 |
||
|
9010510461
|
9010510461
90105-10461 New Genuine Part |
90105-10461 |
US $2.04 |
||
|
9010908268
|
9010908268
90109-08268 BOLT |
90109-08268 |
US $2.87 |
||
|
9010908304
|
9010908304
90109-08304 BOLT |
90109-08304 |
from US $1.25 |
||
|
9011906968
|
9011906968
90119-06968 New Genuine Part |
90119-06968 |
US $0.87 |
||
|
9011910889
|
9011910889
90119-10889 Bolt(For Camshaft Timing Gear) |
90119-10889 |
from US $1.27 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.63 |
||
