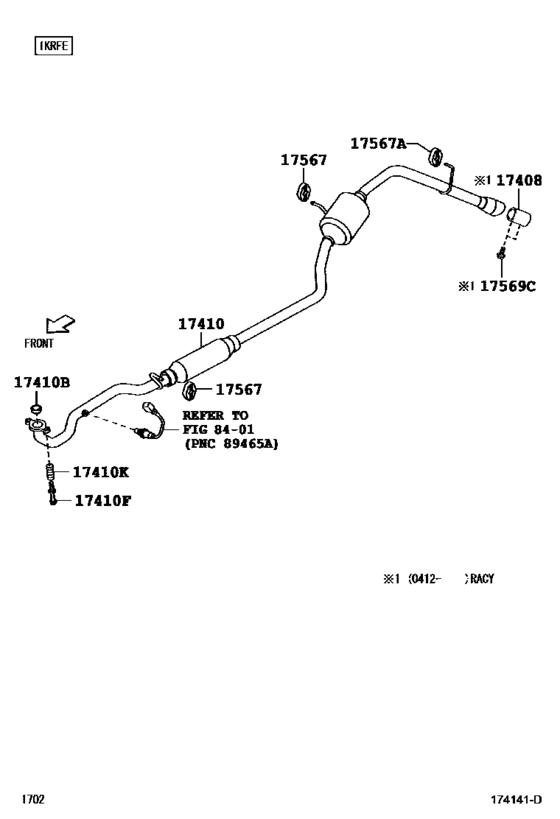

Exhaust Pipe ([05.2004 - 02.2010] (0405-1002)1KRFE) Diagram Toyota PASSO
- Year
- 2006 - 2010
- Sales region
- Japan
- Frame
- KGC10
- grade
- RACY
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2006
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17408
|
17408
17408-B1010 Baffle Sub Assy, Exhaust Tail Pipe[12.2006 - 02.2010] K3VE,1KRFE..KGC1#,QNC10..RACY; K3VE..QNC10..RACY パッケージ オプション ２−モデリスタ Ｍ／Ｔ; K3VE..QNC10..RACY パッケージ オプション ２−モデリスタ Ａ／Ｔ |
17408-B1010 |
US $60.86 |
||
|
17410
|
17410
17410-B1200 Pipe Assy, Exhaust, Front[12.2006 - 02.2010] 1KRFE..KGC1#..RACY |
17410-B1200 |
US $481.94 |
||
|
17410B
|
17410B
17451-B1020 Gasket, Exhaust Pipe[12.2006 - 02.2010] 1KRFE..KGC1# |
17451-B1020 |
US $28.56 |
||
| replacement | |||||
|
17410B
|
17410B
17451-B1021 Gasket, Exhaust PipeEXHAUST PIPE [12.2006 - 02.2010] 1KRFE..KGC1# |
17451-B1021 |
US $30.07 |
||
|
17410F
|
17410F
17569-97201 Bolt Or Ring, Exhaust Pipe Front (For Front)[12.2006 - 02.2010] K3VE,1KRFE..KGC1#,QNC10 |
17569-97201 |
US $11.11 |
||
|
17410K
|
17410K
17152-97201 Spring, Exhaust Pipe[12.2006 - 02.2010] K3VE,1KRFE..KGC1#,QNC10 |
17152-97201 |
US $18.14 |
||
|
17567
|
17567
17567-87210
Cushion, Exhaust Pipe Support
[12.2006 - 02.2010] 1KRFE..KGC1# |
17567-87210 |
— | ||
| replacement | |||||
|
17567
|
17567
17567-B1010 Cushion, Exhaust Pipe Support[12.2006 - 02.2010] 1KRFE..KGC1# |
17567-B1010 |
US $29.06 |
||
|
17567A
|
17567A
17567-B2010 Support, Exhaust Pipe, No.1[12.2006 - 02.2010] 1KRFE..KGC1# |
17567-B2010 |
US $14.87 |
||
|
17569C
|
17569C
17569-B1010 Bolt, Exhaust Pipe Support[12.2006 - 02.2010] K3VE,1KRFE..KGC1#,QNC10..RACY; K3VE..QNC10..RACY パッケージ オプション ２−モデリスタ Ｍ／Ｔ; K3VE..QNC10..RACY パッケージ オプション ２−モデリスタ Ａ／Ｔ |
17569-B1010 |
US $2.18 |
||
