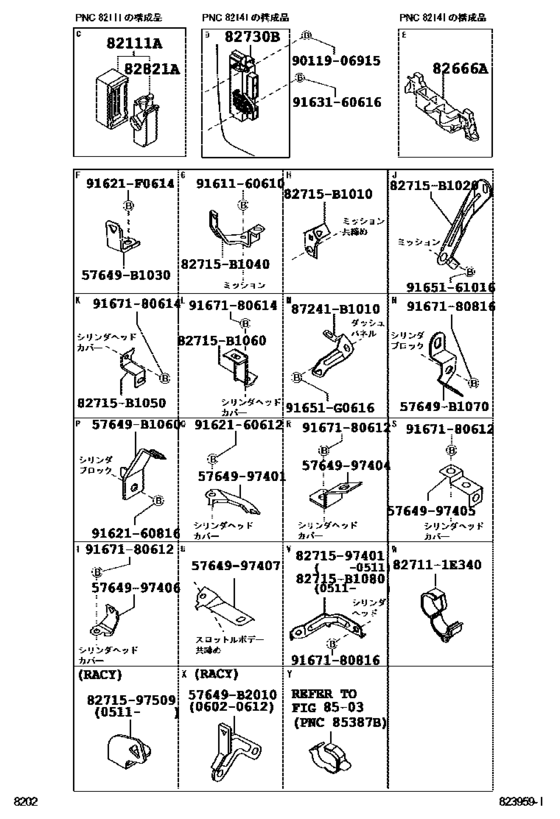

Wiring & Clamp ([05.2004 - 02.2010] (0405-1002)) Diagram Toyota PASSO
- Year
- 2006 - 2010
- Sales region
- Japan
- Frame
- KGC10
- grade
- RACY
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2006
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82111A
|
82111A
90048-75333 Connector, Engine Room Main Wire[12.2006 - 02.2010] KGC1#,QNC10 |
90048-75333 |
US $27.37 |
||
|
82666A
|
82666A
82666-B1010 Holder, Connector No.2[12.2006 - 02.2010] KGC1#,QNC10 |
82666-B1010 |
US $14.71 |
||
|
82730B
|
82730B
82730-B1010 Block Assy, Passenger Side Junction[12.2006 - 02.2010] KGC1#,QNC10 |
82730-B1010 |
US $112.20 |
||
|
82821A
|
82821A
82821-B1010 Cover, Connector[12.2006 - 02.2010] KGC1#,QNC10 |
82821-B1010 |
US $8.30 |
||
|
57649B1030
|
57649B1030
57649-B1030 Gusset, Quarter Wheel House, No.1 Lh |
57649-B1030 |
US $4.08 |
||
|
57649B1060
|
57649B1060
57649-B1060 Gusset, Quarter Wheel House, No.1 Lh |
57649-B1060 |
US $5.68 |
||
|
57649B1070
|
57649B1070
57649-B1070 Gusset, Quarter Wheel House, No.1 Lh |
57649-B1070 |
US $4.08 |
||
|
57649B2010
|
57649B2010
57649-B2010
Gusset, Quarter Wheel House, No.1 Lh
|
57649-B2010 |
— | ||
|
82715B1010
|
82715B1010
82715-B1010 Bracket,wiring Harness Clamp |
82715-B1010 |
US $4.22 |
||
|
82715B1020
|
82715B1020
82715-B1020 Bracket,wiring Harness Clamp |
82715-B1020 |
US $8.01 |
||
|
82715B1040
|
82715B1040
82715-B1040 Bracket,wiring Harness Clamp |
82715-B1040 |
US $8.15 |
||
|
82715B1050
|
82715B1050
82715-B1050 Bracket,wiring Harness Clamp |
82715-B1050 |
US $3.20 |
||
|
82715B1060
|
82715B1060
82715-B1060 Bracket,wiring Harness Clamp |
82715-B1060 |
US $3.06 |
||
|
82715B1080
|
82715B1080
82715-B1080 Bracket,wiring Harness Clamp |
82715-B1080 |
US $2.33 |
||
|
87241B1010
|
87241B1010
87241-B1010 Controller, Water Valve |
87241-B1010 |
US $4.66 |
||
|
91621F0614
|
91621F0614
91621-F0614
BOLT WWASHER
|
91621-F0614 |
— | ||
| replacement | |||||
|
91621F0614
|
91621F0614
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
91651G0616
|
91651G0616
91651-G0616 BOLT WWASHER |
91651-G0616 |
US $1.43 |
||
|
827111E340
|
827111E340
82711-1E340 Clamp, Hood Lock Control Cable |
82711-1E340 |
from US $1.22 |
||
|
5764997401
|
5764997401
57649-97401 Gusset, Quarter Wheel House, No.1 Lh |
57649-97401 |
US $3.93 |
||
|
5764997404
|
5764997404
57649-97404 Gusset, Quarter Wheel House, No.1 Lh |
57649-97404 |
US $1.75 |
||
|
5764997405
|
5764997405
57649-97405 Gusset, Quarter Wheel House, No.1 Lh |
57649-97405 |
US $1.89 |
||
|
5764997406
|
5764997406
57649-97406 Gusset, Quarter Wheel House, No.1 Lh |
57649-97406 |
US $3.93 |
||
|
5764997407
|
5764997407
57649-97407 Gusset, Quarter Wheel House, No.1 Lh |
57649-97407 |
US $6.99 |
||
|
8271597401
|
8271597401
82715-97401 Bracket,wiring Harness Clamp |
82715-97401 |
US $6.55 |
||
|
8271597509
|
8271597509
82715-97509
Bracket,wiring Harness Clamp
|
82715-97509 |
— | ||
|
9011906915
|
9011906915
90119-06915 BOLT WWASHER |
90119-06915 |
from US $0.53 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.78 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.65 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.82 |
||
|
9163160616
|
9163160616
91631-60616
BOLT WWASHER
|
91631-60616 |
— | ||
| replacement | |||||
|
9163160616
|
9163160616
91631-B0616 BOLT WWASHER |
91631-B0616 |
from US $0.65 |
||
|
9165161016
|
9165161016
91651-61016 Bolt |
91651-61016 |
US $1.14 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.65 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.63 |
||
|
9167180816
|
9167180816
91671-80816 Bolt (For Transmission Control Cable Bracket) |
91671-80816 |
from US $0.76 |
||
