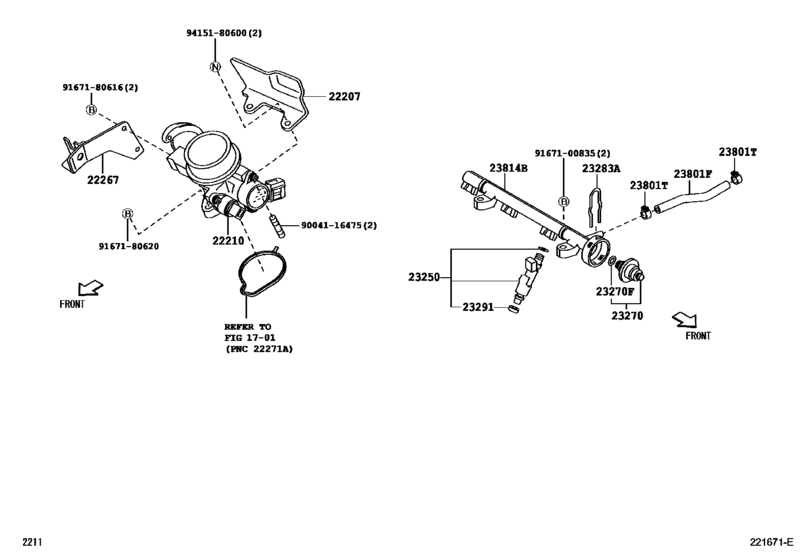

Fuel Injection System ([05.2004 - 12.2006] (0405-0612)1KRFE) Diagram Toyota PASSO
- Year
- 2004 - 2010
- Sales region
- Japan
- Frame
- KGC15
- grade
- X
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 05.2004
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22207
|
22207
22266-B1010 Cover Sub-Assy, Throttle Body[05.2004 - 12.2006] 1KRFE..KGC1# |
22266-B1010 |
US $16.60 |
||
|
22210
|
22210
22210-B1010 Body Assy, Throttle[05.2004 - 12.2006] 1KRFE..KGC1# |
22210-B1010 |
US $1,124.03 |
||
|
22210
|
22210
22210-B1060 Body Assy, Throttle[12.2006 - 02.2010] 1KRFE..KGC1# |
22210-B1060 |
US $707.62 |
||
|
22267
|
22267
22267-B1010 Bracket, Throttle Body[05.2004 - 12.2006] 1KRFE..KGC1# |
22267-B1010 |
US $23.44 |
||
|
23250
|
23250
23209-49085 Injector Assy, Fuel[05.2004 - 12.2006] 1KRFE..KGC1# |
23209-49085 |
US $313.56 |
||
|
23270
|
23270
23270-40010 Damper Assy, Fuel Pressure Pulsation[05.2004 - 12.2006] 1KRFE..KGC1# |
23270-40010 |
US $90.85 |
||
|
23270F
|
23270F
90301-07033 Ring, O(For Fuel Injector)[05.2004 - 12.2006] 1KRFE..KGC1# |
90301-07033 |
from US $2.13 |
||
|
23283A
|
23283A
23283-40010 Holder, Fuel Pressure Regulator[05.2004 - 12.2006] 1KRFE..KGC1# |
23283-40010 |
US $2.33 |
||
|
23291
|
23291
23291-87701 Insulator, Injector Vibration[05.2004 - 12.2006] 1KRFE..KGC1# |
23291-87701 |
US $5.56 |
||
|
23801F
|
23801F
23271-B1010 Hose, Fuel, No.1[05.2004 - 04.2005] 1KRFE..KGC1# |
23271-B1010 |
US $40.62 |
||
| replacement | |||||
|
23801F
|
23801F
23271-B1070 Hose, Fuel, No.1[05.2004 - 04.2005] 1KRFE..KGC1# |
23271-B1070 |
US $39.02 |
||
|
23801F
|
23801F
23271-B1011 Hose, Fuel, No.1[05.2005 - 12.2006] 1KRFE..KGC1# |
23271-B1011 |
US $39.75 |
||
| replacement | |||||
|
23801F
|
23801F
23271-B1070 Hose, Fuel, No.1[05.2005 - 12.2006] 1KRFE..KGC1# |
23271-B1070 |
US $39.02 |
||
|
23801F
|
23801F
23271-B1070 Hose, Fuel, No.1[09.2008 - 02.2010] 1KRFE..KGC1# |
23271-B1070 |
US $39.02 |
||
|
23801T
|
23801T
90044-67234 Clip(For Fuel Hose No.2)[05.2004 - 12.2006] 1KRFE..KGC1#; K3VE..QNC10 |
90044-67234 |
US $7.88 |
||
|
23814B
|
23814B
23814-B1010 Pipe, Fuel Delivery[05.2004 - 12.2006] 1KRFE..KGC1# |
23814-B1010 |
US $77.17 |
||
|
9004116475
|
9004116475
90041-16475 New Genuine Part |
90041-16475 |
US $2.48 |
||
|
9167100835
|
9167100835
91671-00835 New Genuine Part |
91671-00835 |
US $1.79 |
||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.63 |
||
|
9167180620
|
9167180620
91671-80620 New Genuine Part |
91671-80620 |
US $1.08 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.65 |
||
