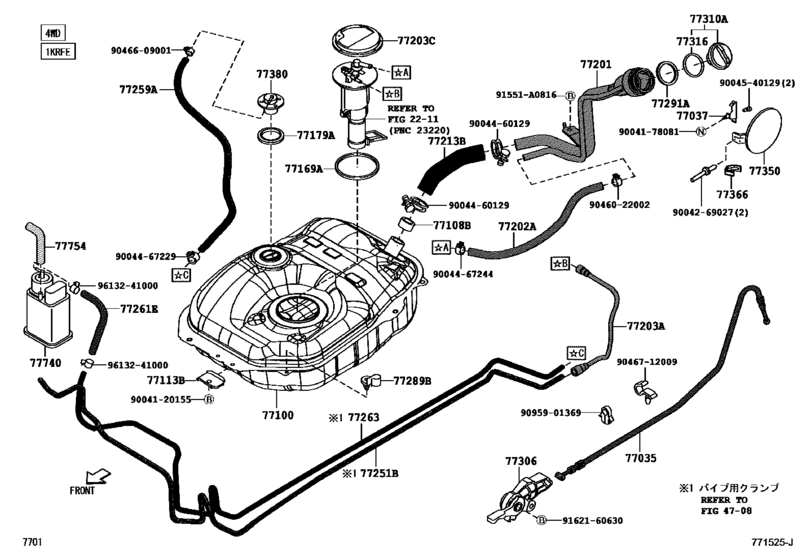

Fuel Tank & Tube ([05.2004 - 02.2010] 4WD 1KRFE (0405-1002)KGC15) Diagram Toyota PASSO
- Year
- 2004 - 2010
- Sales region
- Japan
- Frame
- KGC15
- grade
- X
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 05.2004
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77035
|
77035
77035-B1010 Cable Sub-Assy, Fuel Lid Lock Control[05.2004 - 12.2006] KGC1#,QNC10 |
77035-B1010 |
US $32.32 |
||
|
77037
|
77037
77037-97201 Lock Sub-Assy, Fuel Filler Opening Lid[05.2004 - 12.2006] KGC1#,QNC10 |
77037-97201 |
US $23.46 |
||
|
77100
|
77100
77001-B1020
Tank Assy, Fuel
[05.2004 - 12.2006] KGC15 |
77001-B1020 |
— | ||
| replacement | |||||
|
77100
|
77100
77001-B1051 Tank Assy, Fuel[05.2004 - 12.2006] KGC15 |
77001-B1051 |
US $400.92 |
||
|
77100
|
77100
77001-B1050 Tank Assy, Fuel[12.2008 - 02.2010] KGC15 |
77001-B1050 |
US $318.86 |
||
| replacement | |||||
|
77100
|
77100
77001-B1051 Tank Assy, Fuel[12.2008 - 02.2010] KGC15 |
77001-B1051 |
US $400.92 |
||
|
77108B
|
77108B
77108-B2010 Valve Sub-Assy, Fuel Tank Filler Check[05.2004 - 12.2006] KGC1#,QNC10 |
77108-B2010 |
US $8.42 |
||
|
77113B
|
77113B
77141-B1010 Plate, Fuel Tank Side[05.2004 - 11.2005] QNC10;KGC1#..G,X |
77141-B1010 |
US $9.03 |
||
| replacement | |||||
|
77113B
|
77113B
77141-B1020 Plate, Fuel Tank Side[05.2004 - 11.2005] QNC10;KGC1#..G,X |
77141-B1020 |
US $10.04 |
||
|
77113B
|
77113B
77141-B1020 Plate, Fuel Tank Side[12.2005 - 12.2006] KGC1#,QNC10 |
77141-B1020 |
US $10.04 |
||
|
77169A
|
77169A
23232-87401 Gasket, Fuel Pump Bracket[05.2004 - 12.2006] KGC1#,QNC10 |
23232-87401 |
US $7.17 |
||
|
77179A
|
77179A
77179-33010 Gasket, Fuel Tank Evap/vent Tube[05.2004 - 12.2006] KGC1#,QNC10 |
77179-33010 |
from US $3.20 |
||
|
77201
|
77201
77201-B1060 Pipe Sub-Assy, Fuel Tank Inlet[05.2004 - 12.2006] KGC15 |
77201-B1060 |
US $132.50 |
||
|
77202A
|
77202A
77269-B1020 Hose, Fuel, No.1 (For Breather Tube)[05.2004 - 12.2006] KGC15 ＊Ｈ，Ｌ＝５７０ |
77269-B1020 |
US $21.84 |
||
|
77203A
|
77203A
77203-B1020 Tube Sub-Assy, Fuel Suction[05.2004 - 12.2006] KGC15 |
77203-B1020 |
US $26.64 |
||
|
77203C
|
77203C
23265-B2010 Bracket, Fuel Pump[05.2004 - 12.2006] KGC1#,QNC10 |
23265-B2010 |
US $8.26 |
||
|
77213B
|
77213B
77213-B1020 Hose, Fuel Tank To Filler Pipe[05.2004 - 12.2006] KGC15 |
77213-B1020 |
US $27.81 |
||
|
77251B
|
77251B
77251-B1010
Tube, Fuel Main
[05.2004 - 12.2006] KGC1#,QNC10 |
77251-B1010 |
— | ||
| replacement | |||||
|
77251B
|
77251B
77251-B1011 Tube, Fuel Main[05.2004 - 12.2006] KGC1#,QNC10 |
77251-B1011 |
US $52.36 |
||
|
77251B
|
77251B
77251-B1011 Tube, Fuel Main[06.2009 - 02.2010] KGC1#,QNC10 |
77251-B1011 |
US $52.36 |
||
|
77259A
|
77259A
77259-B2010 Hose, Fuel(For Breather Tube)[05.2004 - 12.2006] KGC15 |
77259-B2010 |
US $13.40 |
||
|
77261E
|
77261E
95331-04028 Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)[05.2004 - 12.2006] KGC1#,QNC10 ＊Ｈ，Ｌ＝２８０ |
95331-04028 |
US $4.51 |
||
|
77263
|
77263
77263-B1010 Tube, Fuel Tank To Canister, No.3[05.2004 - 12.2006] KGC1#,QNC10 |
77263-B1010 |
US $36.84 |
||
|
77289B
|
77289B
77289-B2010 Clamp, Fuel Tube, No.3[05.2004 - 12.2006] KGC1#,QNC10 |
77289-B2010 |
US $2.91 |
||
|
77291A
|
77291A
77291-B2020 Shield, Fuel Tank Filler Pipe[05.2004 - 12.2006] KGC1#,QNC10 |
77291-B2020 |
US $15.41 |
||
|
77306
|
77306
64606-97202 Lever Sub-Assy, Fuel Lid Lock Open[05.2004 - 12.2006] KGC1#,QNC10 |
64606-97202 |
US $55.44 |
||
|
77310A
|
77310A
77310-48010 Cap Assy, Fuel Tank[05.2004 - 12.2006] KGC1#,QNC10 |
77310-48010 |
from US $28.77 |
||
|
77316
|
77316
77316-16010 Gasket (For Fuel Tank Cap)[05.2004 - 12.2006] KGC1#,QNC10 |
77316-16010 |
from US $10.77 |
||
|
77350
|
77350
77350-B1010 Lid Assy, Fuel Filler Opening[05.2004 - 12.2006] KGC1#,QNC10 |
77350-B1010 |
US $35.24 |
||
|
77366
|
77366
77366-52010 Spring, Fuel Filler Opening Lid Hinge[05.2004 - 12.2006] KGC1#,QNC10 |
77366-52010 |
from US $0.65 |
||
|
77380
|
77380
77380-B2010 Valve Assy, Fuel Cut Off[05.2004 - 12.2006] KGC1#,QNC10 |
77380-B2010 |
US $14.16 |
||
|
77740
|
77740
77740-B1010 Canister Assy, Charcoal[05.2004 - 12.2006] KGC1#,QNC10 |
77740-B1010 |
US $87.36 |
||
|
77754
|
77754
77754-B1010 Hose Sub-Assy, Vacuum[05.2004 - 12.2006] KGC1# 長さ＝３００ |
77754-B1010 |
US $11.65 |
||
|
91551A0816
|
91551A0816
91551-A0816 Bolt |
91551-A0816 |
US $1.43 |
||
|
9004120155
|
9004120155
90041-20155 New Genuine Part |
90041-20155 |
US $3.76 |
||
|
9004178081
|
9004178081
90041-78081 New Genuine Part |
90041-78081 |
US $1.75 |
||
|
9004269027
|
9004269027
90042-69027 Rivet |
90042-69027 |
US $3.58 |
||
|
9004460129
|
9004460129
90044-60129 Clamp Sub-Assy, Fuel Hose |
90044-60129 |
US $5.73 |
||
|
9004467229
|
9004467229
90044-67229 New Genuine Part |
90044-67229 |
US $3.76 |
||
|
9004467244
|
9004467244
90044-67244 Clamp Or Clip, Hose(For Water By-Pass Pipe) |
90044-67244 |
US $14.34 |
||
|
9004540129
|
9004540129
90045-40129 Cushion(For Fuel Inlet Box Cover) |
90045-40129 |
US $4.48 |
||
|
9046022002
|
9046022002
90460-22002 CLAMP |
90460-22002 |
US $9.50 |
||
| replacement | |||||
|
9046022002
|
9046022002
90460-22001 CLAMP |
90460-22001 |
from US $4.12 |
||
|
9046609001
|
9046609001
90466-09001 Clip(For Fuel Vapor Feed Hose, No.1) |
90466-09001 |
US $2.33 |
||
|
9046712009
|
9046712009
90467-12009 Clamp, No.1(For Luggage Door Lock Control Cable) |
90467-12009 |
from US $2.83 |
||
|
9095901369
|
9095901369
90959-01369 Clamp, Hood Lock Control Cable |
90959-01369 |
from US $0.97 |
||
|
9162160630
|
9162160630
91621-60630 New Genuine Part |
91621-60630 |
US $1.97 |
||
|
9613241000
|
9613241000
96132-41000 Clip, No.1(For Idle-Up Hose) |
96132-41000 |
from US $1.43 |
||
