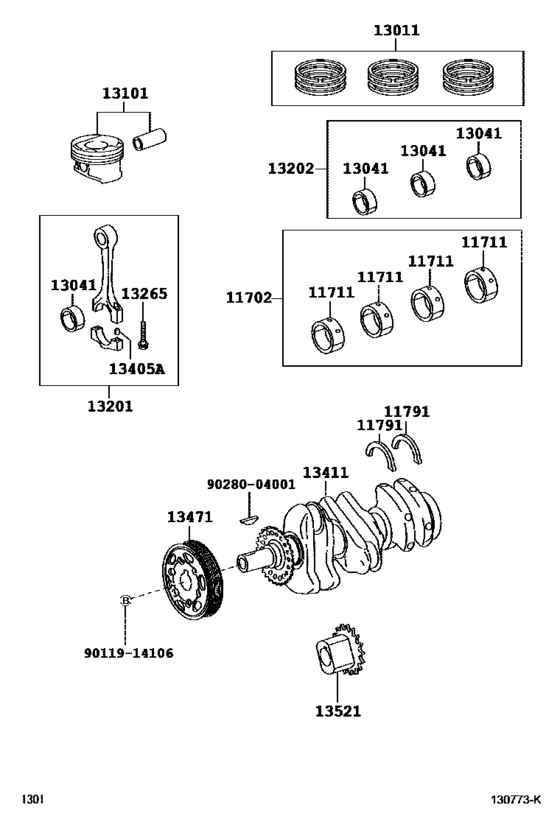

Crankshaft & Piston ([05.2004 - 02.2010] (0405-1002)1KRFE) Diagram Toyota PASSO
- Year
- 2006 - 2010
- Sales region
- Japan
- Frame
- KGC15
- grade
- RACY
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2006
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11702
|
11702
11704-40040 Bearing Set, Crankshaft[12.2006 - 02.2010] 1KRFE..KGC1# Ｕ／Ｓ ０．２５ |
11704-40040 |
US $124.05 |
||
|
11711
|
11711
11701-40040-02 Bearing, Crankshaft[12.2006 - 02.2010] 1KRFE..KGC1# MARK2 |
11701-40040-02 |
US $30.41 |
||
|
11711
|
11711
11701-40040-03 Bearing, Crankshaft[12.2006 - 02.2010] 1KRFE..KGC1# MARK3 |
11701-40040-03 |
US $30.41 |
||
|
11711
|
11711
11701-40040-04 Bearing, Crankshaft[12.2006 - 02.2010] 1KRFE..KGC1# MARK4 |
11701-40040-04 |
US $30.41 |
||
|
11711
|
11711
11701-40040-05 Bearing, Crankshaft[12.2006 - 02.2010] 1KRFE..KGC1# MARK5 |
11701-40040-05 |
US $30.41 |
||
|
11791
|
11791
11791-40020 Washer, Crankshaft Thrust, Upper[12.2006 - 02.2010] 1KRFE..KGC1# ＳＴＤ |
11791-40020 |
US $25.92 |
||
|
11791
|
11791
11792-40020 Washer, Crankshaft Thrust, Upper[12.2006 - 02.2010] 1KRFE..KGC1# Ｏ／Ｓ ０．１２５ |
11792-40020 |
US $23.44 |
||
|
11791
|
11791
11793-40020 Washer, Crankshaft Thrust, Upper[12.2006 - 02.2010] 1KRFE..KGC1# Ｏ／Ｓ ０．２５ |
11793-40020 |
US $23.44 |
||
|
13011
|
13011
13011-40030 Ring Set, Piston[12.2006 - 08.2008] 1KRFE..KGC1# ＳＴＤ |
13011-40030 |
US $199.47 |
||
| replacement | |||||
|
13011
|
13011
13011-40052 Ring Set, Piston[12.2006 - 08.2008] 1KRFE..KGC1# ＳＴＤ |
13011-40052 |
US $184.96 |
||
|
13011
|
13011
13011-40050
Ring Set, Piston
[08.2008 - 11.2009] 1KRFE..KGC1# ＳＴＤ |
13011-40050 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-40052 Ring Set, Piston[08.2008 - 11.2009] 1KRFE..KGC1# ＳＴＤ |
13011-40052 |
US $184.96 |
||
|
13011
|
13011
13011-40051
Ring Set, Piston
[11.2009 - 02.2010] 1KRFE..KGC1# ＳＴＤ |
13011-40051 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-40052 Ring Set, Piston[11.2009 - 02.2010] 1KRFE..KGC1# ＳＴＤ |
13011-40052 |
US $184.96 |
||
|
13041
|
13041
13041-40030-01
Bearing, Connecting Rod
[12.2006 - 05.2008] 1KRFE..KGC1# MARK1 |
13041-40030-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-40032-01 Bearing, Connecting Rod[12.2006 - 05.2008] 1KRFE..KGC1# MARK1 |
13041-40032-01 |
US $21.17 |
||
|
13041
|
13041
13041-40030-02 Bearing, Connecting Rod[12.2006 - 05.2008] 1KRFE..KGC1# MARK2 |
13041-40030-02 |
US $26.94 |
||
| replacement | |||||
|
13041
|
13041
13041-40032-02 Bearing, Connecting Rod[12.2006 - 05.2008] 1KRFE..KGC1# MARK2 |
13041-40032-02 |
US $21.17 |
||
|
13041
|
13041
13041-40030-03
Bearing, Connecting Rod
[12.2006 - 05.2008] 1KRFE..KGC1# MARK3 |
13041-40030-03 |
— | ||
| replacements | |||||
|
13041
|
13041
13041-40032-03 Bearing, Connecting Rod[12.2006 - 05.2008] 1KRFE..KGC1# MARK3 |
13041-40032-03 |
US $21.17 |
||
|
13041
|
13041
13041-40031-03 Bearing, Connecting Rod[12.2006 - 05.2008] 1KRFE..KGC1# MARK3 |
13041-40031-03 |
US $26.21 |
||
| replacement | |||||
|
13041
|
13041
13041-40032-03 Bearing, Connecting Rod[12.2006 - 05.2008] 1KRFE..KGC1# MARK3 |
13041-40032-03 |
US $21.17 |
||
|
13041
|
13041
13041-40031-01
Bearing, Connecting Rod
[05.2008 - 02.2010] 1KRFE..KGC1# MARK1 |
13041-40031-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-40032-01 Bearing, Connecting Rod[05.2008 - 02.2010] 1KRFE..KGC1# MARK1 |
13041-40032-01 |
US $21.17 |
||
|
13041
|
13041
13041-40031-02 Bearing, Connecting Rod[05.2008 - 02.2010] 1KRFE..KGC1# MARK2 |
13041-40031-02 |
US $22.42 |
||
| replacement | |||||
|
13041
|
13041
13041-40032-02 Bearing, Connecting Rod[05.2008 - 02.2010] 1KRFE..KGC1# MARK2 |
13041-40032-02 |
US $21.17 |
||
|
13041
|
13041
13041-40031-03 Bearing, Connecting Rod[05.2008 - 02.2010] 1KRFE..KGC1# MARK3 |
13041-40031-03 |
US $26.21 |
||
| replacement | |||||
|
13041
|
13041
13041-40032-03 Bearing, Connecting Rod[05.2008 - 02.2010] 1KRFE..KGC1# MARK3 |
13041-40032-03 |
US $21.17 |
||
|
13101
|
13101
13101-40021
Piston Sub-Assy, W/pin
[12.2006 - 09.2009] 1KRFE..KGC1# ＳＴＤ,櫻興業 |
13101-40021 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-40030 Piston Sub-Assy, W/pinW/PIN [12.2006 - 09.2009] 1KRFE..KGC1# ＳＴＤ,櫻興業 |
13101-40030 |
from US $43.23 |
||
|
13101
|
13101
13101-40030 Piston Sub-Assy, W/pinW/PIN [09.2009 - 02.2010] 1KRFE..KGC1# ＳＴＤ |
13101-40030 |
from US $43.23 |
||
|
13201
|
13201
13201-49075
Rod Sub-Assy, Connecting
[12.2006 - 05.2008] 1KRFE..KGC1# |
13201-49075 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-49077 Rod Sub-Assy, Connecting[12.2006 - 05.2008] 1KRFE..KGC1# |
13201-49077 |
US $81.65 |
||
|
13201
|
13201
13201-49076 Rod Sub-Assy, Connecting[05.2008 - 02.2010] 1KRFE..KGC1# |
13201-49076 |
US $87.36 |
||
| replacement | |||||
|
13201
|
13201
13201-49077 Rod Sub-Assy, Connecting[05.2008 - 02.2010] 1KRFE..KGC1# |
13201-49077 |
US $81.65 |
||
|
13202
|
13202
13204-40030
Bearing Set, Connecting Rod
[12.2006 - 04.2008] 1KRFE..KGC1# Ｕ／Ｓ ０．２５ |
13204-40030 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-40031 Bearing Set, Connecting Rod[12.2006 - 04.2008] 1KRFE..KGC1# Ｕ／Ｓ ０．２５ |
13204-40031 |
US $63.77 |
||
|
13202
|
13202
13204-40031 Bearing Set, Connecting Rod[05.2008 - 02.2010] 1KRFE..KGC1# Ｕ／Ｓ ０．２５ |
13204-40031 |
US $63.77 |
||
|
13202
|
13202
13205-B1010 Bearing Set, Connecting RodCONNECTING ROD [05.2008 - 02.2010] 1KRFE..KGC1# Ｕ／Ｓ ０．５０ |
13205-B1010 |
US $77.17 |
||
|
13202
|
13202
13205-B1020
Bearing Set, Connecting Rod
[12.2006 - 05.2008] 1KRFE..KGC1# Ｕ／Ｓ ０．５０ |
13205-B1020 |
— | ||
| replacement | |||||
|
13202
|
13202
13205-B1010 Bearing Set, Connecting RodCONNECTING ROD [12.2006 - 05.2008] 1KRFE..KGC1# Ｕ／Ｓ ０．５０ |
13205-B1010 |
US $77.17 |
||
|
13265
|
13265
13265-21020 Bolt, Connecting Rod[12.2006 - 02.2010] 1KRFE..KGC1# |
13265-21020 |
from US $2.83 |
||
|
13405A
|
13405A
90250-04070 Pin, Straight(For Flywheel)[12.2006 - 02.2010] 1KRFE..KGC1# |
90250-04070 |
US $0.87 |
||
|
13411
|
13411
13401-40020 Crankshaft[12.2006 - 02.2010] 1KRFE..KGC1# |
13401-40020 |
US $588.22 |
||
| replacement | |||||
|
13411
|
13411
13401-40060 Crankshaft Assy[12.2006 - 02.2010] 1KRFE..KGC1# |
13401-40060 |
US $588.22 |
||
|
13471
|
13471
13471-40060 Pulley, Crankshaft[12.2006 - 02.2010] 1KRFE..KGC1# |
13471-40060 |
US $155.79 |
||
|
13521
|
13521
13521-40020 Gear Or Sprocket, Crankshaft Timing[12.2006 - 02.2010] 1KRFE..KGC1# |
13521-40020 |
from US $17.06 |
||
|
9011914106
|
9011914106
90119-14106 Bolt(For Crankshaft Pulley Set) |
90119-14106 |
US $6.45 |
||
|
9028004001
|
9028004001
90280-04001 Pin, Straight(For Crankshaft) |
90280-04001 |
from US $0.82 |
||
