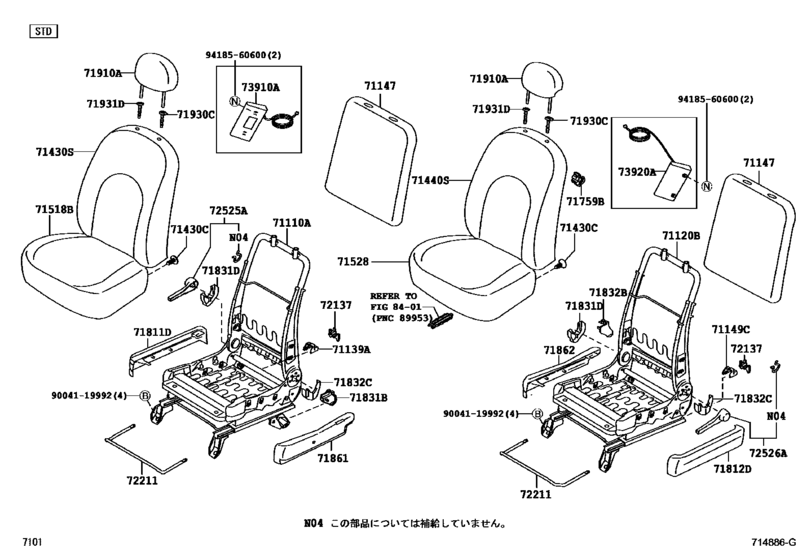

Front Seat & Seat Track ([12.2006 - 06.2007] (0612-0706)KGC1# ; (0612-0706)QNC10..G) Diagram Toyota PASSO
- Year
- 2006 - 2010
- Sales region
- Japan
- Frame
- KGC15
- grade
- RACY
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2006
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71110A
|
71110A
71110-B1011 Frame Assy, Front Seat W/adjuster, Rh[06.2007 - 02.2010] KGC1#..RACY,X |
71110-B1011 |
US $521.25 |
||
|
71110A
|
71110A
71110-B1040 Frame Assy, Front Seat W/adjuster, Rh[12.2006 - 06.2007] KGC1#..RACY,X |
71110-B1040 |
US $843.02 |
||
|
71120B
|
71120B
71120-B1040 Frame Assy, Front Seat W/adjuster, Lh[12.2006 - 06.2007] KGC1#,QNC10 |
71120-B1040 |
US $630.45 |
||
| replacement | |||||
|
71120B
|
71120B
71120-B1041 Frame Assy, Front Seat W/adjuster, Lh[12.2006 - 06.2007] KGC1#,QNC10 |
71120-B1041 |
US $838.66 |
||
|
71120B
|
71120B
71120-B1041 Frame Assy, Front Seat W/adjuster, Lh[06.2007 - 02.2010] KGC1#,QNC10 |
71120-B1041 |
US $838.66 |
||
|
71139A
|
71139A
71139-B1010-B0
Cover, Front Seat Leg, No.1
[12.2006 - 02.2010] KGC1#,QNC10 DK.GRAY,TRIM1# |
71139-B1010-B0 |
— | ||
| replacement | |||||
|
71139A
|
71139A
71139-B1010-C0 Cover, Front Seat Leg, No.1[12.2006 - 02.2010] KGC1#,QNC10 DK.GRAY,TRIM1# |
71139-B1010-C0 |
US $7.69 |
||
|
71147
|
71147
71147-B1010 Silencer, Seat Spring[12.2006 - 02.2010] KGC1#,QNC10 |
71147-B1010 |
US $8.15 |
||
|
71149C
|
71149C
71149-B1010-B0 Cover, Front Seat Leg, Lh (For Lh Seat)[12.2006 - 02.2010] KGC1#,QNC10 DK.GRAY,TRIM1# |
71149-B1010-B0 |
US $7.28 |
||
|
71430C
|
71430C
90044-68028-B0 Clip, Rear Floor Board[12.2006 - 06.2007] KGC1#,QNC10 DK.GRAY,TRIM1# |
90044-68028-B0 |
US $1.65 |
||
|
71430C
|
71430C
90044-68028-S2 Clip[06.2007 - 02.2010] KGC1#,QNC10 DK.GRAY,TRIM1# |
90044-68028-S2 |
US $1.65 |
||
|
71430S
|
71430S
71558-B1230-C0 Back Assy, Front Seat, Rh(For Separate Type)[12.2006 - 02.2010] KGC1#..RACY BLACK,TRIM1# |
71558-B1230-C0 |
US $441.17 |
||
|
71430S
|
71430S
71558-B1240-C0 Back Assy, Front Seat, Rh(For Separate Type)[12.2006 - 02.2010] KGC1#..RACY ＳＲＳ エアバッグ−Ｄ／Ｐ、サイド、エアカーテン,BLACK,TRIM1# |
71558-B1240-C0 |
US $441.17 |
||
|
71440S
|
71440S
71568-B1200-C1 Back Assy, Front Seat, Lh(For Separate Type)[12.2006 - 02.2010] KGC1#..RACY BLACK,TRIM1# |
71568-B1200-C1 |
US $441.17 |
||
|
71440S
|
71440S
71568-B1210-C1 Back Assy, Front Seat, Lh(For Separate Type)[12.2006 - 02.2010] KGC1#..RACY ＳＲＳ エアバッグ−Ｄ／Ｐ、サイド、エアカーテン,BLACK,TRIM1# |
71568-B1210-C1 |
US $441.17 |
||
|
71518B
|
71518B
71518-B1120-C0 Pad, Front Seat Cushion W/cover, Rh[12.2006 - 02.2010] KGC1#..RACY BLACK,TRIM1# |
71518-B1120-C0 |
US $380.02 |
||
|
71528
|
71528
71528-B1090-C0 Pad, Front Seat Cushion W/cover, Lh[12.2006 - 02.2010] KGC1#..RACY BLACK,TRIM1# |
71528-B1090-C0 |
US $380.02 |
||
|
71759B
|
71759B
71759-B2010-B0 Hook, Front Seat Back[12.2006 - 06.2007] KGC1#..X DK.GRAY,TRIM12,カイモノフックアリ ＲＨ／ＬＨ; KGC1#,QNC10..RACY DK.GRAY,TRIM1#,カイモノフックアリ ＲＨ／ＬＨ |
71759-B2010-B0 |
US $10.77 |
||
|
71759B
|
71759B
71759-B2020-B0 Hook, Front Seat Back[06.2007 - 02.2010] KGC1#..X DK.GRAY,TRIM12,カイモノフックアリ ＬＨノミ; KGC1#,QNC10..RACY DK.GRAY,TRIM1#,カイモノフックアリ ＬＨノミ |
71759-B2020-B0 |
US $7.57 |
||
| replacement | |||||
|
71759B
|
71759B
71759-B2020-B6 Hook, Front Seat BackFRONT SEAT BACK [06.2007 - 02.2010] KGC1#..X DK.GRAY,TRIM12,カイモノフックアリ ＬＨノミ; KGC1#,QNC10..RACY DK.GRAY,TRIM1#,カイモノフックアリ ＬＨノミ |
71759-B2020-B6 |
US $8.01 |
||
|
71811D
|
71811D
71811-B1010-B0 Shield, Front Seat Cushion, Rh[12.2006 - 02.2010] KGC1#..RACY,X DK.GRAY,TRIM1# |
71811-B1010-B0 |
US $37.56 |
||
|
71811D
|
71811D
71811-B1020-B0
Shield, Front Seat Cushion, Rh
[12.2006 - 02.2010] KGC1#..RACY,X ＳＲＳ エアバッグ−Ｄ／Ｐ、サイド、エアカーテン,DK.GRAY,TRIM1# |
71811-B1020-B0 |
— | ||
|
71812D
|
71812D
71812-B1030-B0 Shield, Front Seat Cushion, Lh[12.2006 - 02.2010] KGC1#,QNC10 DK.GRAY,TRIM1# |
71812-B1030-B0 |
US $37.56 |
||
|
71812D
|
71812D
71812-B1040-B0 Shield, Front Seat Cushion, Lh[12.2006 - 02.2010] KGC15,QNC10..G グレード パッケージ−Ｆ パッケージ＆ＳＲＳ エアバッグ−Ｄ／Ｐ、サイド、エアカー テン,DK.GRAY,TRIM1#; KGC1#..X フロント シート 上下 アジャスター−有り（ドライバー席）＆ＳＲＳ エアバッグ−Ｄ ／Ｐ、サイド、エアカーテン,DK.GRAY,TRIM1#; KGC1#,QNC10 ＳＲＳ エアバッグ−Ｄ／Ｐ、サイド、エアカーテン,DK.GRAY,TRIM1# |
71812-B1040-B0 |
US $40.62 |
||
|
71831B
|
71831B
71831-B1010-B0 Cover, Front Seat Hinge, Rh[12.2006 - 02.2010] KGC1#,QNC10 DK.GRAY,TRIM1# |
71831-B1010-B0 |
US $11.50 |
||
|
71831D
|
71831D
71831-B2010-B0 Cover, Front Seat Hinge, Rh[12.2006 - 06.2007] KGC1#,QNC10 DK.GRAY,TRIM1# |
71831-B2010-B0 |
US $6.70 |
||
| replacement | |||||
|
71831D
|
71831D
71831-B2010-B1 Cover, Front Seat Hinge, Rh[12.2006 - 06.2007] KGC1#,QNC10 DK.GRAY,TRIM1# |
71831-B2010-B1 |
US $7.13 |
||
|
71831D
|
71831D
71831-B2010-B1 Cover, Front Seat Hinge, Rh[06.2007 - 02.2010] KGC1#,QNC10 DK.GRAY,TRIM1# |
71831-B2010-B1 |
US $7.13 |
||
|
71832B
|
71832B
71832-B1010-B0 Cover, Front Seat Hinge, Lh[12.2006 - 02.2010] KGC1#,QNC10 DK.GRAY,TRIM1# |
71832-B1010-B0 |
US $11.50 |
||
|
71832C
|
71832C
71832-B2010-B0 Cover, Front Lh Seat Hinge[12.2006 - 06.2007] KGC1#,QNC10 DK.GRAY,TRIM1# |
71832-B2010-B0 |
US $6.70 |
||
| replacement | |||||
|
71832C
|
71832C
71832-B2010-B1 Cover, Front Seat Hinge, Lh[12.2006 - 06.2007] KGC1#,QNC10 DK.GRAY,TRIM1# |
71832-B2010-B1 |
US $7.13 |
||
|
71832C
|
71832C
71832-B2010-B1 Cover, Front Seat Hinge, Lh[06.2007 - 02.2010] KGC1#,QNC10 DK.GRAY,TRIM1# |
71832-B2010-B1 |
US $7.13 |
||
|
71861
|
71861
71861-B1010-B0 Shield, Front Seat Cushion, Inner Rh[12.2006 - 02.2010] KGC1#..RACY,X DK.GRAY,TRIM1# |
71861-B1010-B0 |
US $33.78 |
||
|
71862
|
71862
71862-B1020-B0 Shield, Front Seat Cushion, Inner Lh[12.2006 - 02.2010] KGC1#,QNC10 DK.GRAY,TRIM1# |
71862-B1020-B0 |
US $37.56 |
||
|
71910A
|
71910A
71910-B1170-C1 Headrest Assy, Front Seat[12.2006 - 02.2010] KGC1#..RACY BLACK,TRIM1# |
71910-B1170-C1 |
US $192.19 |
||
|
71930C
|
71930C
71930-97202-C0 Support Assy, Rear Seat Headrest[12.2006 - 02.2010] KGC1#,QNC10..RACY BLACK,TRIM1#; KGC1#..X フロント シート 上下 アジャスター−有り（ドライバー席）＆ＳＲＳ エアバッグ−Ｄ ／Ｐ、サイド、エアカーテン,BLACK,TRIM12; KGC1#..X ＳＲＳ エアバッグ−Ｄ／Ｐ、サイド、エアカーテン,BLACK,TRIM12 |
71930-97202-C0 |
US $12.23 |
||
|
71931D
|
71931D
71931-97202-C0 Support, Front Seat Headrest[12.2006 - 02.2010] KGC1#,QNC10..RACY BLACK,TRIM1#; KGC1#..X フロント シート 上下 アジャスター−有り（ドライバー席）＆ＳＲＳ エアバッグ−Ｄ ／Ｐ、サイド、エアカーテン,BLACK,TRIM12; KGC1#..X ＳＲＳ エアバッグ−Ｄ／Ｐ、サイド、エアカーテン,BLACK,TRIM12 |
71931-97202-C0 |
US $8.30 |
||
|
72137
|
72137
72137-97205 Protector, Seat Track Lower Rail, No.1[12.2006 - 02.2010] KGC1#,QNC10 |
72137-97205 |
US $5.24 |
||
|
72211
|
72211
72211-B1010 Handle, Seat Track Adjusting[12.2006 - 02.2010] KGC1#,QNC10 右側 |
72211-B1010 |
US $23.44 |
||
|
72211
|
72211
72212-B1010 Handle, Seat Track Adjusting[12.2006 - 02.2010] KGC1#,QNC10 左側 |
72212-B1010 |
US $23.44 |
||
|
72525A
|
72525A
72525-B1010-B0 Handle, Reclining Adjuster Release, Rh[12.2006 - 02.2010] KGC1#,QNC10 DK.GRAY,TRIM1# |
72525-B1010-B0 |
US $10.83 |
||
|
72526A
|
72526A
72526-B1010-B0 Handle, Reclining Adjuster Release, Lh[12.2006 - 02.2010] KGC1#,QNC10 DK.GRAY,TRIM1# |
72526-B1010-B0 |
US $10.83 |
||
|
73910A
|
73910A
73910-B2010 Air Bag Assy, Front Seat, Rh[12.2006 - 02.2010] KGC15,QNC10..G グレード パッケージ−Ｆ パッケージ＆ＳＲＳ エアバッグ−Ｄ／Ｐ、サイド、エアカー テン; KGC1#..X フロント シート 上下 アジャスター−有り（ドライバー席）＆ＳＲＳ エアバッグ−Ｄ ／Ｐ、サイド、エアカーテン; KGC1#,QNC10 ＳＲＳ エアバッグ−Ｄ／Ｐ、サイド、エアカーテン |
73910-B2010 |
US $394.58 |
||
|
73920A
|
73920A
73920-B2010 Air Bag Assy, Front Seat, Lh[12.2006 - 02.2010] KGC15,QNC10..G グレード パッケージ−Ｆ パッケージ＆ＳＲＳ エアバッグ−Ｄ／Ｐ、サイド、エアカー テン; KGC1#..X フロント シート 上下 アジャスター−有り（ドライバー席）＆ＳＲＳ エアバッグ−Ｄ ／Ｐ、サイド、エアカーテン; KGC1#,QNC10 ＳＲＳ エアバッグ−Ｄ／Ｐ、サイド、エアカーテン |
73920-B2010 |
US $394.58 |
||
|
9004119992
|
9004119992
90041-19992 New Genuine Part |
90041-19992 |
US $2.18 |
||
|
9418560600
|
9418560600
94185-60600 Nut, Wire Adjusting, No.1 |
94185-60600 |
from US $0.70 |
||
