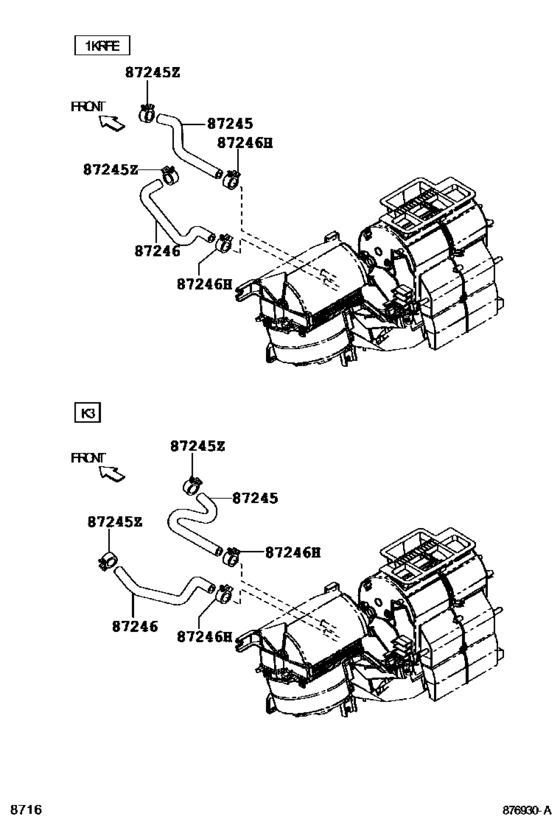

Heating & Air Conditioning - Water Piping ([05.2004 - 02.2010] (0405-1002)) Diagram Toyota PASSO
- Year
- 2006 - 2010
- Sales region
- Japan
- Frame
- KGC15
- grade
- RACY
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2006
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245
|
87245
87245-B1010 Hose, Heater Water, Inlet[12.2006 - 02.2010] KGC1# |
87245-B1010 |
US $15.43 |
||
|
87245Z
|
87245Z
88718-97209 Clip, No.2(For Oil Cooler Hose)[12.2006 - 02.2010] KGC1#,QNC10 |
88718-97209 |
US $8.96 |
||
|
87246
|
87246
87246-B1010 Hose, Heater Water, Outlet[12.2006 - 02.2010] KGC1# |
87246-B1010 |
US $34.59 |
||
|
87246H
|
87246H
90044-67485 Clip(For Water By-Pass Hose No.2)[12.2006 - 03.2009] KGC1#,QNC10 |
90044-67485 |
US $8.24 |
||
|
87246H
|
87246H
96136-42501 Clip(For Ventilation Hose)[04.2009 - 02.2010] KGC1#,QNC10 |
96136-42501 |
from US $3.17 |
