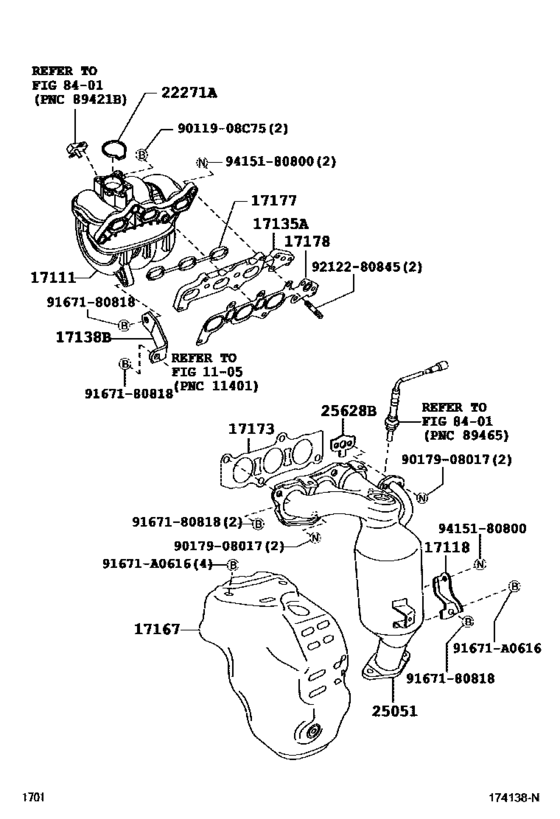

Manifold ([05.2004 - 02.2010] (0405-1002)1KRFE) Diagram Toyota PASSO
- Year
- 2006 - 2010
- Sales region
- Japan
- Frame
- KGC15
- grade
- RACY
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2006
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17111
|
17111
17101-B1010 Manifold, Intake[12.2006 - 02.2010] 1KRFE..KGC1# |
17101-B1010 |
US $235.87 |
||
|
17118
|
17118
17118-40010 Stay, Manifold[12.2006 - 02.2010] 1KRFE..KGC1# |
17118-40010 |
US $10.83 |
||
|
17135A
|
17135A
17135-40020 Insulator, Intake Manifold, No.1[12.2006 - 02.2010] 1KRFE..KGC1# |
17135-40020 |
US $115.32 |
||
|
17138B
|
17138B
17138-40020 Stay, Intake Manifold[12.2006 - 02.2010] 1KRFE..KGC1# |
17138-40020 |
US $9.46 |
||
|
17167
|
17167
17167-40020 Insulator, Exhaust Manifold Heat, No.1[12.2006 - 02.2010] 1KRFE..KGC1# |
17167-40020 |
US $123 |
||
|
17173
|
17173
17173-40020 Gasket, Exhaust Manifold To Head[12.2006 - 02.2010] 1KRFE..KGC1# |
17173-40020 |
US $18.31 |
||
|
17177
|
17177
17177-40020 Gasket, Intake Manifold To Head, No.1[12.2006 - 02.2010] 1KRFE..KGC1# |
17177-40020 |
US $17.98 |
||
|
17178
|
17178
17178-40020 Gasket, Intake Manifold To Head, No.2[12.2006 - 02.2010] 1KRFE..KGC1# |
17178-40020 |
US $14.52 |
||
|
22271A
|
22271A
22271-40010 Gasket, Throttle Body[12.2006 - 02.2010] 1KRFE..KGC1# |
22271-40010 |
US $7.71 |
||
|
25051
|
25051
25051-B1051 Converter Sub-Assy, Exhaust Manifold[12.2006 - 07.2008] 1KRFE..KGC15 |
25051-B1051 |
US $994.45 |
||
|
25051
|
25051
25051-B1090 Converter Sub-Assy, Exhaust Manifold[07.2008 - 02.2010] 1KRFE..KGC15 |
25051-B1090 |
US $994.45 |
||
|
25628B
|
25628B
25628-40020 Gasket, Egr Inlet[12.2006 - 02.2010] 1KRFE..KGC1# |
25628-40020 |
US $1.61 |
||
|
91671A0616
|
91671A0616
91671-A0616 BOLT FLANGE |
91671-A0616 |
from US $0.63 |
||
|
9011908C75
|
9011908C75
90119-08C75 New Genuine Part |
90119-08C75 |
US $1.31 |
||
|
9017908017
|
9017908017
90179-08017 NUT |
90179-08017 |
from US $0.76 |
||
|
9167180818
|
9167180818
91671-80818 BOLT FLANGE |
91671-80818 |
from US $0.84 |
||
|
9212280845
|
9212280845
92122-80845 Bolt, Stud(For Intake Manifold To Cylinder Head) |
92122-80845 |
US $1.60 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
