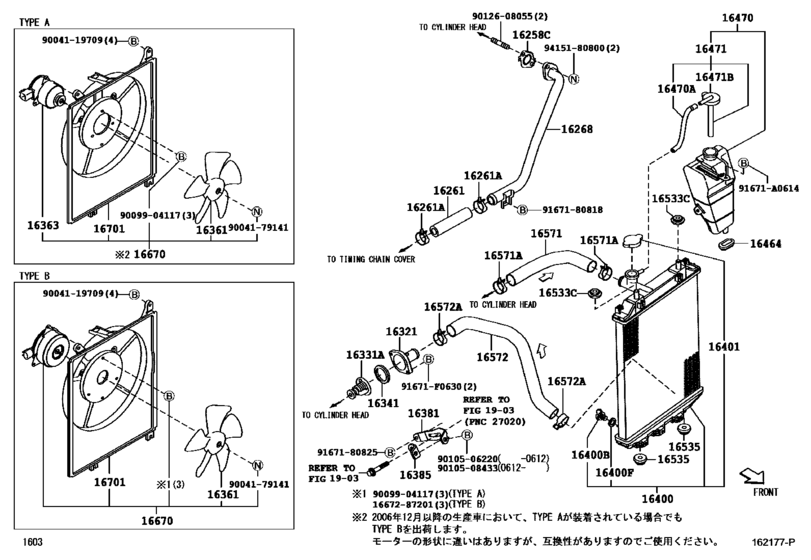

Radiator & Water Outlet ([05.2004 - 02.2010] (0405-1002)1KRFE) Diagram Toyota PASSO
- Year
- 2006 - 2010
- Sales region
- Japan
- Frame
- KGC15
- grade
- RACY
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2006
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16258C
|
16258C
16258-40010 Gasket(For Water By-Pass Pipe)[12.2006 - 11.2008] 1KRFE..KGC1# |
16258-40010 |
US $9.03 |
||
| replacement | |||||
|
16258C
|
16258C
16258-40021 Gasket(For Water By-Pass Pipe)[12.2006 - 11.2008] 1KRFE..KGC1# |
16258-40021 |
US $8.24 |
||
|
16258C
|
16258C
16258-40020 Gasket(For Water By-Pass Pipe)[11.2008 - 02.2010] 1KRFE..KGC1# |
16258-40020 |
US $6.12 |
||
| replacement | |||||
|
16258C
|
16258C
16258-40021 Gasket(For Water By-Pass Pipe)[11.2008 - 02.2010] 1KRFE..KGC1# |
16258-40021 |
US $8.24 |
||
|
16261
|
16261
16261-40111 Hose, Water By-Pass[12.2006 - 02.2010] 1KRFE..KGC1# |
16261-40111 |
US $7.29 |
||
|
16261A
|
16261A
90466-30001 Clip Or Clamp(For Ventilation Hose)[12.2006 - 02.2010] 1KRFE..KGC1# |
90466-30001 |
from US $3.29 |
||
|
16268
|
16268
16268-40010 Pipe, Water By-Pass, No.1[12.2006 - 02.2010] 1KRFE..KGC1# |
16268-40010 |
US $57.66 |
||
|
16321
|
16321
16321-40010 Inlet, Water[12.2006 - 02.2010] 1KRFE..KGC1# |
16321-40010 |
US $28.06 |
||
|
16331A
|
16331A
90916-03134
Thermostat
[12.2006 - 02.2010] 1KRFE..KGC1# |
90916-03134 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03150 Thermostat[12.2006 - 02.2010] 1KRFE..KGC1# |
90916-03150 |
from US $21.19 |
||
|
16341
|
16341
16341-35010 Gasket, Water Outlet[12.2006 - 02.2010] K3VE..QNC10; 1KRFE..KGC1# |
16341-35010 |
from US $1.84 |
||
|
16361
|
16361
16361-B1070 Fan[12.2006 - 02.2010] K3VE..QNC10 タイプ Ｂ; 1KRFE..KGC1# タイプ Ｂ |
16361-B1070 |
US $39.75 |
||
|
16361
|
16361
16690-97201 Fan[12.2006 - 02.2010] K3VE..QNC10 タイプ Ａ; 1KRFE..KGC1# タイプ Ａ |
16690-97201 |
US $44.26 |
||
|
16381
|
16381
16381-B2050 Bar, Fan Belt Adjusting[12.2006 - 02.2010] 1KRFE..KGC1# |
16381-B2050 |
US $10.05 |
||
|
16385
|
16385
16385-B2050 Slider, Fan Belt Adjusting[12.2006 - 02.2010] 1KRFE..KGC1# |
16385-B2050 |
US $8.74 |
||
|
16400
|
16400
16400-B1020
Radiator Assy
[12.2006 - 11.2009] 1KRFE..KGC1# |
16400-B1020 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-B1071 Radiator Assy[12.2006 - 11.2009] 1KRFE..KGC1# |
16400-B1071 |
US $516.36 |
||
|
16400
|
16400
16400-B1021
Radiator Assy
[12.2009 - 02.2010] 1KRFE..KGC1# |
16400-B1021 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-B1071 Radiator Assy[12.2009 - 02.2010] 1KRFE..KGC1# |
16400-B1071 |
US $516.36 |
||
|
16400B
|
16400B
23322-87101
Plug, Radiator Drain Cock
[12.2006 - 02.2010] K3VE..QNC10; 1KRFE..KGC1# |
23322-87101 |
— | ||
|
16400F
|
16400F
16442-97201 Packing(For Radiator Drain Cock)[12.2006 - 02.2010] K3VE..QNC10; 1KRFE..KGC1# |
16442-97201 |
from US $2.15 |
||
|
16401
|
16401
16401-97202 Cap Sub-Assy, Radiator[12.2006 - 02.2010] K3VE..QNC10; 1KRFE..KGC1# |
16401-97202 |
US $21.50 |
||
|
16464
|
16464
16464-97201 Bush, Tank Lower[12.2006 - 02.2010] K3VE..QNC10; 1KRFE..KGC1# |
16464-97201 |
US $4.30 |
||
|
16470
|
16470
16470-B1010 Tank Assy, Radiator Reserve[12.2006 - 02.2010] K3VE..QNC10; 1KRFE..KGC1# |
16470-B1010 |
US $51.89 |
||
|
16470A
|
16470A
16472-B1010 Hose Or Pipe(For Radiator Reserve Tank)[12.2006 - 02.2010] K3VE..QNC10; 1KRFE..KGC1# |
16472-B1010 |
US $6.99 |
||
|
16471
|
16471
16405-B1010 Cap Sub-Assy, Reserve Tank[12.2006 - 02.2010] K3VE..QNC10; 1KRFE..KGC1# |
16405-B1010 |
US $15.87 |
||
|
16471B
|
16471B
16471-B1010 Cap, Reserve Tank[12.2006 - 02.2010] K3VE..QNC10; 1KRFE..KGC1# |
16471-B1010 |
US $5.39 |
||
|
16533C
|
16533C
90044-80621 Grommet(For Radiator Support)[12.2006 - 02.2010] K3VE..QNC10; 1KRFE..KGC1# |
90044-80621 |
US $4.84 |
||
|
16535
|
16535
90044-80592 Grommet[12.2006 - 02.2010] K3VE..QNC10; 1KRFE..KGC1# |
90044-80592 |
from US $4.92 |
||
|
16571
|
16571
16571-B1010 Hose, Radiator, Inlet[12.2006 - 02.2010] 1KRFE..KGC1# |
16571-B1010 |
US $37.30 |
||
|
16571A
|
16571A
90044-66014 Clamp Or Clip, Hose(For Water By-Pass Hose)[12.2006 - 02.2010] K3VE..QNC10 内径＝３２．２，幅＝１０．２; 1KRFE..KGC1# 内径＝３２．２，幅＝１０．２ |
90044-66014 |
US $6.09 |
||
|
16572
|
16572
16572-B1010 Hose, Radiator, Outlet[12.2006 - 02.2010] 1KRFE..KGC1# |
16572-B1010 |
US $42.50 |
||
|
16572A
|
16572A
90044-66014 Clamp Or Clip, Hose(For Water By-Pass Hose)[12.2006 - 02.2010] K3VE..QNC10 内径＝３２．２，幅＝１０．２; 1KRFE..KGC1# 内径＝３２．２，幅＝１０．２ |
90044-66014 |
US $6.09 |
||
|
16670
|
16670
16360-B1220 Moter Assy, Fan W/shroud[12.2006 - 02.2010] K3VE..QNC10 タイプ Ｂ; 1KRFE..KGC1# タイプ Ｂ |
16360-B1220 |
US $663 |
||
|
16701
|
16701
16700-97205 Shroud Sub-Assy, Fan[12.2006 - 02.2010] K3VE..QNC10 タイプ Ａ; 1KRFE..KGC1# タイプ Ａ |
16700-97205 |
US $66.10 |
||
|
16701
|
16701
16700-97206 Shroud Sub-Assy, Fan[12.2006 - 02.2010] K3VE..QNC10 タイプ Ｂ; 1KRFE..KGC1# タイプ Ｂ |
16700-97206 |
US $65.23 |
||
|
91671A0614
|
91671A0614
91671-A0614 Bolt |
91671-A0614 |
US $1.08 |
||
|
91671F0630
|
91671F0630
91671-F0630 New Genuine Part |
91671-F0630 |
US $1.02 |
||
|
1667287201
|
1667287201
16672-87201
Bolt, Radiator Side Support Plate
|
16672-87201 |
— | ||
|
9004119709
|
9004119709
90041-19709 New Genuine Part |
90041-19709 |
US $1.51 |
||
|
9004179141
|
9004179141
90041-79141
New Genuine Part
|
90041-79141 |
— | ||
|
9009904117
|
9009904117
90099-04117 Bolt, Radiator Side Support Plate |
90099-04117 |
from US $0.61 |
||
|
9010506220
|
9010506220
90105-06220 BOLT WASHER BASED |
90105-06220 |
US $1.79 |
||
|
9010508433
|
9010508433
90105-08433 BOLT FLANGE |
90105-08433 |
US $4.66 |
||
|
9012608055
|
9012608055
90126-08055 Bolt, Stud(For Manifold To Cylinder Head) |
90126-08055 |
US $1.43 |
||
|
9167180818
|
9167180818
91671-80818 BOLT FLANGE |
91671-80818 |
from US $0.84 |
||
|
9167180825
|
9167180825
91671-80825 Bolt, Compressor, No.1 |
91671-80825 |
from US $0.76 |
||
|
9415180800
|
9415180800
94151-80800 Nut (For Transmission Control Cable) |
94151-80800 |
from US $0.78 |
||
