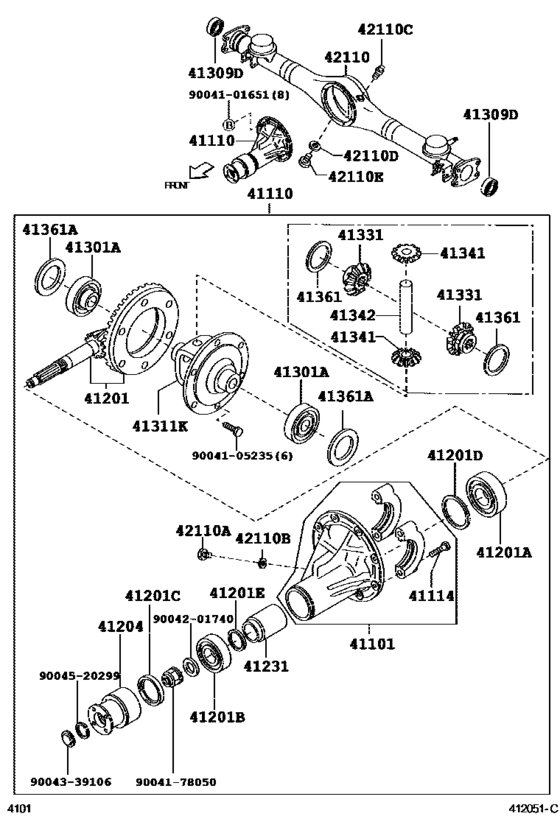

Rear Axle Housing & Differential ([05.2004 - 02.2010] (0405-1002)KGC15) Diagram Toyota PASSO
- Year
- 2006 - 2010
- Sales region
- Japan
- Frame
- KGC15
- grade
- RACY
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2006
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41101
|
41101
41101-B2010 Carrier Sub-Assy, Differential, Rear[12.2006 - 02.2010] KGC15 |
41101-B2010 |
US $272.27 |
||
|
41110
|
41110
41110-B2011 Carrier Assy, Differential, Rear[12.2006 - 02.2010] KGC15 ＊ＦＧＲ＝４３：１７＝２．５２９ |
41110-B2011 |
US $1,820 |
||
| replacement | |||||
|
41110
|
41110
41110-B2012 Carrier Assy, Differential, Rear[12.2006 - 02.2010] KGC15 ＊ＦＧＲ＝４３：１７＝２．５２９ |
41110-B2012 |
US $2,125.76 |
||
|
41114
|
41114
41114-B2010 Bolt, Rear Differential Bearing Cap[12.2006 - 02.2010] KGC15 |
41114-B2010 |
US $2.80 |
||
|
41201
|
41201
41201-B2010 Final Gear Kit, Differential, Rear[12.2006 - 02.2010] KGC15 |
41201-B2010 |
US $364 |
||
|
41201A
|
41201A
90043-68020 Bearing (For Rear Drive Pinion Rear)[12.2006 - 02.2010] KGC15 |
90043-68020 |
US $26.35 |
||
|
41201B
|
41201B
90043-68028 Bearing (For Rear Drive Pinion Front)[12.2006 - 02.2010] KGC15 |
90043-68028 |
US $23.73 |
||
| replacement | |||||
|
41201B
|
41201B
90043-68040 Bearing (For Rear Drive Pinion Front)[12.2006 - 02.2010] KGC15 |
90043-68040 |
US $23.73 |
||
|
41201C
|
41201C
90043-11279 Seal, Oil (For Rear Differential Carrier)[12.2006 - 10.2008] KGC15 ＮＯＫ |
90043-11279 |
US $11.21 |
||
| replacement | |||||
|
41201C
|
41201C
90043-11418 Seal, Oil (For Rear Differential Carrier)[12.2006 - 10.2008] KGC15 ＮＯＫ |
90043-11418 |
US $11.65 |
||
|
41201D
|
41201D
90045-64049 Washer, Plate (For Rear Differential Drive Pinion)[12.2006 - 02.2010] KGC15 厚さ＝０．１５ |
90045-64049 |
US $2.97 |
||
|
41201D
|
41201D
90045-64050 Washer, Plate (For Rear Differential Drive Pinion)[12.2006 - 02.2010] KGC15 厚さ＝０．２０ |
90045-64050 |
US $2.97 |
||
|
41201D
|
41201D
90045-64051 Washer, Plate (For Rear Differential Drive Pinion)[12.2006 - 02.2010] KGC15 厚さ＝０．２５ |
90045-64051 |
US $3.06 |
||
|
41201D
|
41201D
90045-64052 Washer, Plate (For Rear Differential Drive Pinion)[12.2006 - 02.2010] KGC15 厚さ＝０．５０ |
90045-64052 |
US $2.97 |
||
|
41201E
|
41201E
90045-64529 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[12.2006 - 02.2010] KGC15 厚さ＝０．２５ |
90045-64529 |
US $2.04 |
||
|
41201E
|
41201E
90045-64530 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[12.2006 - 02.2010] KGC15 厚さ＝０．３０ |
90045-64530 |
US $2.04 |
||
|
41201E
|
41201E
90045-64531 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[12.2006 - 02.2010] KGC15 厚さ＝０．４０ |
90045-64531 |
US $2.04 |
||
|
41201E
|
41201E
90045-64532 Shim (For Rear Diff Drive Pinion Spacer Front Adjust)[12.2006 - 02.2010] KGC15 厚さ＝０．５０ |
90045-64532 |
US $2.04 |
||
|
41204
|
41204
34870-97401 Flange Sub-Assy, Rear Drive Pinion Companion, Rear[12.2006 - 02.2010] KGC15 |
34870-97401 |
US $780.42 |
||
| replacements | |||||
|
41204
|
41204
41330-B2030 Coupling Assy, Center Differential Control[12.2006 - 02.2010] KGC15 |
41330-B2030 |
US $901.26 |
||
|
41204
|
41204
90043-11418 Seal, Oil (For Rear Differential Carrier)[12.2006 - 02.2010] KGC15 |
90043-11418 |
US $11.65 |
||
|
41231
|
41231
41231-97201 Spacer, Rear Differential Drive Pinion Bearing[12.2006 - 02.2010] KGC15 |
41231-97201 |
US $16.45 |
||
| replacements | |||||
|
41231
|
41231
41231-B2010 Spacer, Rear Differential Drive Pinion Bearing[12.2006 - 02.2010] KGC15 |
41231-B2010 |
US $16.42 |
||
|
41231
|
41231
90043-68041 Bearing (For Rear Drive Pinion Rear)[12.2006 - 02.2010] KGC15 |
90043-68041 |
US $23.73 |
||
|
41301A
|
41301A
97103-06007 Bearing, Pinion, Planetary Long[12.2006 - 02.2010] KGC15 |
97103-06007 |
US $10.48 |
||
|
41309D
|
41309D
90043-11312 Seal Oil (For Rear Differential Side Gear Shaft)[12.2006 - 02.2010] KGC15 |
90043-11312 |
US $8.53 |
||
|
41311K
|
41311K
41311-B2010 Case, Rear Differential[12.2006 - 02.2010] KGC15 |
41311-B2010 |
US $157.25 |
||
|
41331
|
41331
41331-87518 Gear, Rear Differential Side[12.2006 - 02.2010] KGC15 |
41331-87518 |
US $57.08 |
||
|
41341
|
41341
41341-87509 Pinion, Rear Differential[12.2006 - 02.2010] KGC15 |
41341-87509 |
US $33.05 |
||
|
41342
|
41342
41342-B2010 Shaft, Rear Differential Pinion[12.2006 - 02.2010] KGC15 |
41342-B2010 |
US $12.52 |
||
|
41361
|
41361
41361-87501 Washer, Rear Differential Side Gear Thrust, No.1[12.2006 - 02.2010] KGC15 厚さ＝０．８ |
41361-87501 |
US $3.49 |
||
|
41361
|
41361
41361-87506 Washer, Rear Differential Side Gear Thrust, No.1[12.2006 - 02.2010] KGC15 厚さ＝０．９ |
41361-87506 |
US $3.49 |
||
|
41361
|
41361
41361-87507 Washer, Rear Differential Side Gear Thrust, No.1[12.2006 - 02.2010] KGC15 厚さ＝１．０ |
41361-87507 |
US $3.49 |
||
|
41361A
|
41361A
90045-64049 Washer, Plate (For Rear Differential Drive Pinion)[12.2006 - 02.2010] KGC15 厚さ＝０．１５ |
90045-64049 |
US $2.97 |
||
|
41361A
|
41361A
90045-64050 Washer, Plate (For Rear Differential Drive Pinion)[12.2006 - 02.2010] KGC15 厚さ＝０．２０ |
90045-64050 |
US $2.97 |
||
|
41361A
|
41361A
90045-64051 Washer, Plate (For Rear Differential Drive Pinion)[12.2006 - 02.2010] KGC15 厚さ＝０．２５ |
90045-64051 |
US $3.06 |
||
|
41361A
|
41361A
90045-64052 Washer, Plate (For Rear Differential Drive Pinion)[12.2006 - 02.2010] KGC15 厚さ＝０．５０ |
90045-64052 |
US $2.97 |
||
|
42110
|
42110
42110-B1011 Housing Assy, Rear Axle[12.2006 - 02.2010] KGC15 |
42110-B1011 |
US $575.12 |
||
|
42110A
|
42110A
90043-41046 Plug(For Rear Differential Carrier)[12.2006 - 02.2010] KGC15 |
90043-41046 |
US $3.76 |
||
|
42110B
|
42110B
90044-30311 Gasket(For Rear Differential Carrier Plug)[12.2006 - 02.2010] KGC15 |
90044-30311 |
US $3.23 |
||
|
42110C
|
42110C
90049-15026 Plug(For Clutch Housing)[12.2006 - 02.2010] KGC15 |
90049-15026 |
from US $1.16 |
||
|
42110D
|
42110D
90044-30237 Gasket (For Rear Axle Housing Filler Plug)[12.2006 - 02.2010] KGC15 |
90044-30237 |
from US $0.74 |
||
| replacement | |||||
|
42110D
|
42110D
12157-10010 Gasket (For Drain Plug)[12.2006 - 02.2010] KGC15 |
12157-10010 |
from US $0.72 |
||
|
42110E
|
42110E
90043-41046 Plug(For Rear Differential Carrier)[12.2006 - 02.2010] KGC15 |
90043-41046 |
US $3.76 |
||
|
9004101651
|
9004101651
90041-01651 Bolt, No.1 (For Rear Differential Carrier Set) |
90041-01651 |
US $3.05 |
||
|
9004105235
|
9004105235
90041-05235 Bolt |
90041-05235 |
US $2.97 |
||
|
9004178050
|
9004178050
90041-78050 Nut (For Rear Drive Pinion) |
90041-78050 |
US $7.88 |
||
|
9004201740
|
9004201740
90042-01740 Washer, Differential Drive Pinion Nut |
90042-01740 |
US $2.91 |
||
|
9004339106
|
9004339106
90043-39106 New Genuine Part |
90043-39106 |
US $12.01 |
||
|
9004520299
|
9004520299
90045-20299 New Genuine Part |
90045-20299 |
US $3.23 |
||
