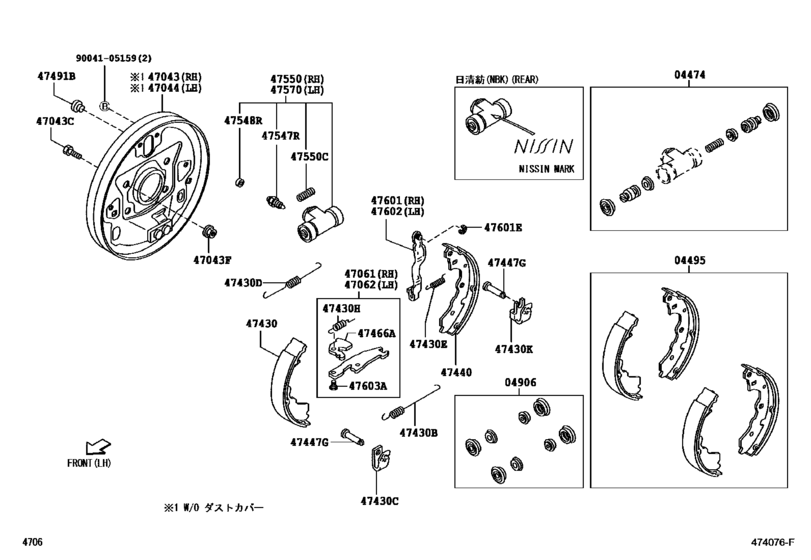

Rear Drum Brake Wheel Cylinder & Backing Plate ([05.2004 - 02.2010] (0405-1002)KGC15) Diagram Toyota PASSO
- Year
- 2006 - 2010
- Sales region
- Japan
- Frame
- KGC15
- grade
- RACY
- ENGINE
- 1KRFE
- TRANSMISSION
- ATM
- Model
- PASSO
- From
- 12.2006
- To
- 02.2010
- Gear Shift Type
- 4HC
- Vehicle Model
- PASSO
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04474
|
04474
04474-B2030 Cylinder Kit, Rear Wheel[12.2006 - 02.2010] KGC15 |
04474-B2030 |
US $21.84 |
||
|
04495
|
04495
04495-97217 Shoe Kit, Rear Brake[12.2006 - 02.2010] KGC15 |
04495-97217 |
US $57.08 |
||
| replacement | |||||
|
04495
|
04495
04495-B2360 Shoe Kit, Rear Brake[12.2006 - 02.2010] KGC15 |
04495-B2360 |
US $48.73 |
||
|
04906
|
04906
04906-B2020 Cup Kit, Rear Wheel Cylinder[12.2006 - 02.2010] KGC15 |
04906-B2020 |
US $10.31 |
||
|
47043
|
47043
47043-B2030 Plate Sub-Assy, Brake Backing, Rear Rh[12.2006 - 02.2010] KGC15 ダストカバー ナシ |
47043-B2030 |
US $59.26 |
||
|
47043C
|
47043C
90041-01441 Bolt(For Backing Plate To Rear Axle Housing Setting)[12.2006 - 02.2010] KGC15 |
90041-01441 |
US $5.68 |
||
|
47043F
|
47043F
90041-70336 Nut(For Backing Plate To Rear Axle Housing Setting)[12.2006 - 02.2010] KGC15 |
90041-70336 |
US $3.23 |
||
|
47044
|
47044
47044-B2030 Plate Sub-Assy, Brake Backing, Rear Lh[12.2006 - 02.2010] KGC15 ダストカバー ナシ |
47044-B2030 |
US $59.26 |
||
|
47061
|
47061
47061-B2020 Strut Set, Parking Brake Shoe, Rh[12.2006 - 02.2010] KGC15 |
47061-B2020 |
US $21.26 |
||
|
47062
|
47062
47062-B2020 Strut Set, Parking Brake Shoe, Lh[12.2006 - 02.2010] KGC15 |
47062-B2020 |
US $21.26 |
||
|
47430
|
47430
47430-B2031 Shoe Assy, Rear Brake(For Front Or Upper Side)[12.2006 - 02.2010] KGC15 |
47430-B2031 |
US $14.27 |
||
| replacement | |||||
|
47430
|
47430
47430-B2180 Shoe Assy, Rear Brake(For Front Or Upper Side)[12.2006 - 02.2010] KGC15 |
47430-B2180 |
US $13.63 |
||
|
47430B
|
47430B
90045-06141 Spring, Tension(For Rear Brake Shoe Return)[12.2006 - 02.2010] KGC15 |
90045-06141 |
US $5.10 |
||
|
47430C
|
47430C
47446-87704 Spring(For Rear Brake Shoe Hold Down)[12.2006 - 02.2010] KGC15 |
47446-87704 |
US $2.77 |
||
|
47430D
|
47430D
90045-06140 Spring, Tension(For Rear Brake Shoe Return)[12.2006 - 02.2010] KGC15 |
90045-06140 |
US $5.10 |
||
|
47430E
|
47430E
90045-06139 Spring, Tension(For Rear Brake Shoe Return)[12.2006 - 02.2010] KGC15 右側,左側 |
90045-06139 |
US $3.79 |
||
|
47430H
|
47430H
90045-06151 Spring, Compression(For Parking Brake Shoe Strut)[12.2006 - 02.2010] KGC15 右側,左側 |
90045-06151 |
US $3.20 |
||
|
47430K
|
47430K
47448-87702 Spring(For Rear Brake Shoe Hold Down, No.2)[12.2006 - 02.2010] KGC15 右側 |
47448-87702 |
US $3.20 |
||
|
47430K
|
47430K
47449-87702 Spring(For Rear Brake Shoe Hold Down, No.2)[12.2006 - 02.2010] KGC15 左側 |
47449-87702 |
US $3.20 |
||
|
47440
|
47440
47430-B2031 Shoe Assy, Rear Brake(For Front Or Upper Side)[12.2006 - 02.2010] KGC15 |
47430-B2031 |
US $14.27 |
||
| replacement | |||||
|
47440
|
47440
47430-B2180 Shoe Assy, Rear Brake(For Front Or Upper Side)[12.2006 - 02.2010] KGC15 |
47430-B2180 |
US $13.63 |
||
|
47447G
|
47447G
47447-87503 Pin, Shoe Hold Down Spring(For Rear Brake)[12.2006 - 02.2010] KGC15 |
47447-87503 |
US $2.62 |
||
|
47466A
|
47466A
47477-87701
Plate, Rear Brake Shoe Adjusting
[12.2006 - 02.2010] KGC15 |
47477-87701 |
— | ||
|
47491B
|
47491B
47491-97701 Plug, Hole(For Rear Brake)[12.2006 - 02.2010] KGC15 |
47491-97701 |
US $4.08 |
||
|
47547R
|
47547R
47547-87506 Plug, Bleeder(For Drum Brake, Rear)[12.2006 - 02.2010] KGC15 |
47547-87506 |
US $4.95 |
||
|
47548R
|
47548R
47548-87204 Cap, Bleeder Plug(For Drum Brake, Rear)[12.2006 - 02.2010] KGC15 |
47548-87204 |
US $4.66 |
||
|
47550
|
47550
47560-B2010 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[12.2006 - 02.2010] KGC15 |
47560-B2010 |
US $97.55 |
||
|
47550C
|
47550C
90045-01871 Spring, Compression(For Rear Wheel Brake Cylinder)[12.2006 - 02.2010] KGC15 |
90045-01871 |
US $2.33 |
||
|
47570
|
47570
47560-B2010 Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)[12.2006 - 02.2010] KGC15 |
47560-B2010 |
US $97.55 |
||
|
47601
|
47601
47601-B2030 Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)[12.2006 - 02.2010] KGC15 |
47601-B2030 |
US $18.78 |
||
|
47601E
|
47601E
90045-23044 Ring, E(For Rear Brake)[12.2006 - 02.2010] KGC15 右側,左側 |
90045-23044 |
US $1.75 |
||
|
47602
|
47602
47602-B2030 Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)[12.2006 - 02.2010] KGC15 |
47602-B2030 |
US $18.78 |
||
|
47603A
|
47603A
47475-87701 Pin, W/hole(For Rear Brake)[12.2006 - 02.2010] KGC15 |
47475-87701 |
US $3.79 |
||
|
9004105159
|
9004105159
90041-05159 New Genuine Part |
90041-05159 |
US $2.33 |
||
